1440VA, 1350W, Input 75-146VAC, 55-65 Hz, Output 120 VAC, 60 Hz, (5) NEMA 5-15R, VRLA 9Ah, 45dB
Key Features
- Compact 1U rack space for the same features as a 2U rack mount UPS
- Advanced, pure sine wave output power on battery
- 0.9 power factor, which means more usable power for connected devices
- Voltage regulation from 83 to 159 VAC without using the battery
- Less than 6 milliseconds transfer time to battery

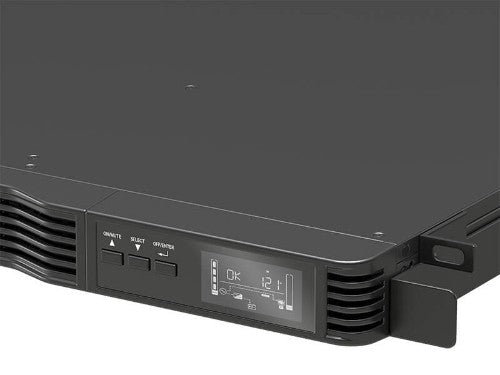

- LCD display panel, output overload, or low-battery or replace-battery warnings
- Options for communication card for remote monitoring of devices
Description
The Vertiv™ Liebert® PSI5 1U line interactive rack mount uninterruptible power supply (UPS) is designed to protect and extend the life of your electronic devices in school, home and office. It offers cost-effective protection from downtime and damage caused by power outages, brownouts, sags, surges or noise interference. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. It ensures availability of critical IT applications such as network closets and small data centers. This battery backup allows orderly shutdown of critical equipment. Add an optional communication card and remotely monitor up to 50 UPS systems through the free Vertiv™ Trellis™ Power Insight Application. It has a 2-year Vertiv warranty with optional extensions for up to 5 years total coverage. Not for sale in Vermont, Colorado, Washington.
Specifications
| Power |
|---|
| Output frequency |
60 Hz |
| Output power |
1350 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
146 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Maximum current |
16 A |
| Efficiency |
93% |
| Power factor |
0.9 |
| Output power capacity |
1.44 kVA |
| ECO mode |
Yes |
| Input frequency |
55/65 Hz |
| Ports & interfaces |
|---|
| Cable length |
94.5" (2.4 m) |

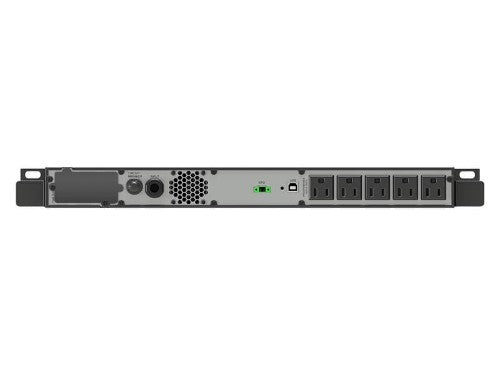

| AC outlets quantity |
5 AC outlet(s) |
| AC outlet types |
NEMA 5-15R |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Surge protection |
Yes |
| Power protection features |
Over current, Short circuit |
| Noise level |
45 dB |
| Features |
|---|
| Output frequency |
60 Hz |
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Output power |
1350 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
146 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Maximum current |
16 A |
| Efficiency |
93% |
| Surge protection |
Yes |
| Power protection features |
Over current, Short circuit |
| Power factor |
0.9 |
| Noise level |
45 dB |
| Output power capacity |
1.44 kVA |
| ECO mode |
Yes |
| Input frequency |
55/65 Hz |
| Battery |
|---|
| Battery voltage |
6 V |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of battery cells |
4 |
| Design |
|---|
| Rack capacity |
1U |
| Form factor |
Rackmount |
| Product colour |
Black |
| Safety |
UL 1778, c-UL-us Listed |
| Certification |
FCC Part 15, Class B
UL 497 B |
| Cable length |
94.5" (2.4 m) |
| Control type |
Buttons |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 50 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Technical details |
|---|
| Output frequency |
60 Hz |
| Certificates |
|---|
| Certification |
FCC Part 15, Class B
UL 497 B |
| Safety |
UL 1778, c-UL-us Listed |
| Safety regulation & standards |
|---|
| Safety |
UL 1778, c-UL-us Listed |
| Weight & dimensions |
|---|
| Package width |
22" (560 mm) |
| Package depth |
28" (710 mm) |
| Package height |
5.51" (140 mm) |
| Weight |
100.5 lbs (45.6 kg) |
| Width |
17.2" (438 mm) |
| Package weight |
112.7 lbs (51.1 kg) |
| Height |
1.73" (44 mm) |
| Depth |
24.8" (631 mm) |
| Packaging data |
|---|
| Package width |
22" (560 mm) |
| Package depth |
28" (710 mm) |
| Package height |
5.51" (140 mm) |
| Package weight |
112.7 lbs (51.1 kg) |
