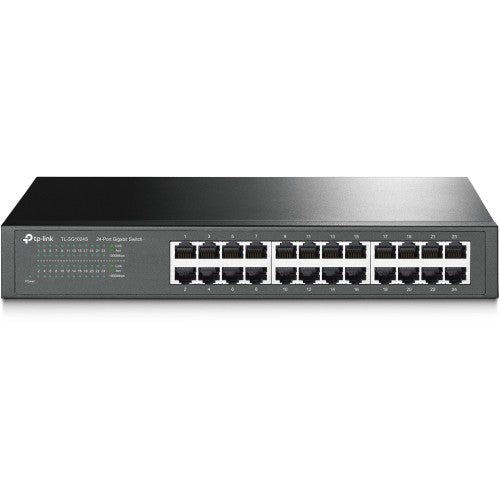

TP-Link TL-SG1024S network switch Unmanaged Gigabit Ethernet (10/100/1000) Black

24x 10/100/1000Mbps RJ45, 48Gbps, 35.7Mpps, 8K Mac Address, 13.1W, Black

Key Features

• 24 10/100/1000Mbps ports
• Innovative energy-efficient technology saves power consumption
• Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
• Plug & play design

Description

What This Product Does
The TL-SG1024S Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024S can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

TP-LINK Green Technology
This new generation TL-SG1024S Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.

High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024S forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1024S work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.

Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

Specifications

Performance
Stackable	No
Auto-negotiation	Yes
Maximum cable length	3937" (100 m)
Technical details
Product colour	Black
Stackable	No
Rack mounting	No
Management features
Switch type	Unmanaged
Quality of Service (QoS) support	Yes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Network
Networking standards	IEEE 802.3ab, IEEE 802.3p, IEEE 802.3u, IEEE 802.3x
Auto MDI/MDI-X	Yes
10G support	No
Auto-negotiation	Yes
Data transmission
MAC address table	8000 entries
Switching capacity	48 Gbit/s
Jumbo frames support	Yes
Packet forwarding	Yes
Forwarding rate	35.7 Mpps
Jumbo frame range	0 - 10000 B
Design
Product colour	Black
Stackable	No
LED indicators	Yes
Rack mounting	No
Indication
LED indicators	Yes
Power
Power consumption (max)	13.1 W
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power over Ethernet (PoE)
Power over Ethernet (PoE)	No
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Storage relative humidity (H-H)	5 - 90%
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	11.6" (294 mm)
Depth	7.09" (180 mm)
Height	1.73" (44 mm)
