Description
1D/2D, 1280 x 800, 109 PPI, 660 nm, IP52, USB, RS232, Black

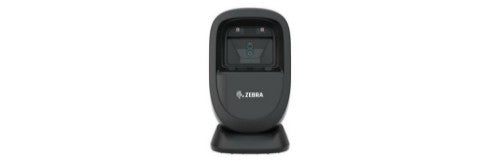

The DS9300 Series is the little presentation scanner with big functionality. With its compact form factor and stylish aesthetics, the DS9300 Series fits anywhere — from trendy boutiques to convenience stores with limited real-estate at the checkout counter. Rapid-fire, best-in-class swipe speeds and unparalleled performance on challenging barcodes keep lines moving. And the durable design is built to handle everyday drops, bumps and spills.
The little presentation scanner with big functionality
From convenience and drug stores to quick serve restaurants and other retail environments — counterspace is limited, bumps and spills may be an everyday occurrence, and the need for high customer satisfaction is always critical. Introducing the DS9300 Series, the presentation scanner that fits anywhere, scans everything, and is built for all-day reliability. You get a compact form factor coupled with stylish aesthetics ideal for trendy boutiques or convenience stores with limited real-estate at the checkout counter. With the ability to scan challenging barcodes at your point of sale, you get unmatched performance for speedier checkout times and happier customers, along with a design that is built to handle everyday drops, bumps and spills to keep you up and running. The DS9300 Series — the little presentation scanner with big functionality.
Innovation-driven design and performance
A fit-everywhere modern design with a near-zero footprint
The new design of the DS9300 Series is at home everywhere, from the trendiest boutique to a petroleum convenience store. With a near-zero footprint, there’s always room for the DS9300
Series, no matter how space-constrained your counters may be. And the 45° angle cable connector reduces the already tiny footprint, even when the scanner is tilted forward.
Scan it all — with virtually no exceptions
Quickly and easily capture 1D and 2D barcodes, including tiny, high density codes, codes printed on a label or displayed on a phone, DotCode and dotted DataMatrix codes through cellophane, as well as new invisible Digimarc codes. Zebra’s DS9300 Series’ state-of-the-art
technology captures barcodes in virtually any condition, on any media. The 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology work together to easily capture poorly printed, damaged, crinkled, faded, truncated and low contrast barcodes. The curved exit window helps minimize stray light, reducing reflections from barcodes printed on glossy paper or displayed on a screen that can blind the sensor.
Rapid-fire can’t-miss scanning
When it comes to ease of use, the DS9300 Series outshines the competition. With swipe speeds that are up to 50% faster than competitive scanners, the DS9300 Series can capture barcodes as fast as they are presented. And the largest field of view in this class eliminates the need to move items around to find the “sweet spot”.
Intelligent adaptive illumination
The LEDs dynamically adapt to the environment, automatically dimming when not in use and activated when a barcode is present. The LEDs are also recessed and virtually invisible, reducing eye annoyance.
Single out one barcode from many
With Zebra’s Preferred Symbol, the DS9300 Series can capture and output only the preferred barcode, so associates no longer have to waste time physically covering nearby barcodes before scanning.
Ensure feedback is always visible and audible
You can adjust the volume, frequency and duration of the beeper to ensure your associates can hear the tone that signals a successful scan. And the bright green “good decode” LED is visible no matter where your associates are standing — in front of or behind the scanner.
Maximum durability, maximum reliability
Drops, dust and spills — no problem
The DS9300 Series is built to handle 5 ft./1.5 m drops to concrete and 1,000 consecutive 1.5 ft./0.5 m tumbles, ready to survive the knocks and bumps that can happen in the real-world. And spills and dust won’t slow the DS9300 Series down. Thanks to IP52 sealing and a patent-pending opto-mechanical layout that includes a concealed beeper hole with elevated circuitry and cable connector, even the base is spill proof.
A multi-position base that won’t wear out
The flexible ratcheting base offers four positions, from 15° back to 45° forward. This frictionless system won’t wear out like those used in competitive devices, ensuring convenient positioning for maximum flexibility, every day the DS9300 Series is in service.
Easy to deploy, easy to manage
Backwards compatibility with DS9208 cables and power supplies Upgrade to the DS9300 Series to get all the advantages of today’s advanced scanning technologies in your business — cost-effectively.
Plug-and-play instant deployment
Get up and running right out of the box with optimized default configuration settings, auto-host detect cables that instantly connect to all popular interfaces and keyboard support for
nearly 100 languages.
Multiple mounting options for a wide variety of applications
The “slipper” style multi-mount accessory keeps the scanner in place on a table or wall without restricting the tilt range or the ability to remove the scanner for handheld use — ideal for price
checking, pick and pack and more. The locking-mount accessory is ideal for applications where the scanner should not be removed, for example, in customer facing applications such as self checkout and mobile loyalty.
DataCapture DNA delivers unsurpassed value
Only from Zebra, this unique collection of value-add tools makes it easier to deploy, update, troubleshoot, manage and develop applications for your DS9300 Series scanners. For example, 123Scan creates a single barcode to initially stage or update scanners. Develop and deploy applications faster and easier than ever with the Scanner SDK. ScanSpeed Analytics makes it
easy to spot and correct issues before they impact performance and worker productivity. And you can remotely manage your scanners through Scanner Management Service (SMS) or
Windows Management Instrumentation (WMI), eliminating the time and cost for onsite visits.
Description
THE PRESENTATION IMAGER THAT FITS ANYWHERE, SCANS EVERYTHING AND IS BUILT FOR ALL-DAY RELIABILITYThe DS9300 Series is the little presentation scanner with big functionality. With its compact form factor and stylish aesthetics, the DS9300 Series fits anywhere — from trendy boutiques to convenience stores with limited real-estate at the checkout counter. Rapid-fire, best-in-class swipe speeds and unparalleled performance on challenging barcodes keep lines moving. And the durable design is built to handle everyday drops, bumps and spills.
The little presentation scanner with big functionality
From convenience and drug stores to quick serve restaurants and other retail environments — counterspace is limited, bumps and spills may be an everyday occurrence, and the need for high customer satisfaction is always critical. Introducing the DS9300 Series, the presentation scanner that fits anywhere, scans everything, and is built for all-day reliability. You get a compact form factor coupled with stylish aesthetics ideal for trendy boutiques or convenience stores with limited real-estate at the checkout counter. With the ability to scan challenging barcodes at your point of sale, you get unmatched performance for speedier checkout times and happier customers, along with a design that is built to handle everyday drops, bumps and spills to keep you up and running. The DS9300 Series — the little presentation scanner with big functionality.
Innovation-driven design and performance
A fit-everywhere modern design with a near-zero footprint
The new design of the DS9300 Series is at home everywhere, from the trendiest boutique to a petroleum convenience store. With a near-zero footprint, there’s always room for the DS9300
Series, no matter how space-constrained your counters may be. And the 45° angle cable connector reduces the already tiny footprint, even when the scanner is tilted forward.
Scan it all — with virtually no exceptions
Quickly and easily capture 1D and 2D barcodes, including tiny, high density codes, codes printed on a label or displayed on a phone, DotCode and dotted DataMatrix codes through cellophane, as well as new invisible Digimarc codes. Zebra’s DS9300 Series’ state-of-the-art
technology captures barcodes in virtually any condition, on any media. The 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology work together to easily capture poorly printed, damaged, crinkled, faded, truncated and low contrast barcodes. The curved exit window helps minimize stray light, reducing reflections from barcodes printed on glossy paper or displayed on a screen that can blind the sensor.
Rapid-fire can’t-miss scanning
When it comes to ease of use, the DS9300 Series outshines the competition. With swipe speeds that are up to 50% faster than competitive scanners, the DS9300 Series can capture barcodes as fast as they are presented. And the largest field of view in this class eliminates the need to move items around to find the “sweet spot”.
Intelligent adaptive illumination
The LEDs dynamically adapt to the environment, automatically dimming when not in use and activated when a barcode is present. The LEDs are also recessed and virtually invisible, reducing eye annoyance.
Single out one barcode from many
With Zebra’s Preferred Symbol, the DS9300 Series can capture and output only the preferred barcode, so associates no longer have to waste time physically covering nearby barcodes before scanning.
Ensure feedback is always visible and audible
You can adjust the volume, frequency and duration of the beeper to ensure your associates can hear the tone that signals a successful scan. And the bright green “good decode” LED is visible no matter where your associates are standing — in front of or behind the scanner.
Maximum durability, maximum reliability
Drops, dust and spills — no problem
The DS9300 Series is built to handle 5 ft./1.5 m drops to concrete and 1,000 consecutive 1.5 ft./0.5 m tumbles, ready to survive the knocks and bumps that can happen in the real-world. And spills and dust won’t slow the DS9300 Series down. Thanks to IP52 sealing and a patent-pending opto-mechanical layout that includes a concealed beeper hole with elevated circuitry and cable connector, even the base is spill proof.
A multi-position base that won’t wear out
The flexible ratcheting base offers four positions, from 15° back to 45° forward. This frictionless system won’t wear out like those used in competitive devices, ensuring convenient positioning for maximum flexibility, every day the DS9300 Series is in service.
Easy to deploy, easy to manage
Backwards compatibility with DS9208 cables and power supplies Upgrade to the DS9300 Series to get all the advantages of today’s advanced scanning technologies in your business — cost-effectively.
Plug-and-play instant deployment
Get up and running right out of the box with optimized default configuration settings, auto-host detect cables that instantly connect to all popular interfaces and keyboard support for
nearly 100 languages.
Multiple mounting options for a wide variety of applications
The “slipper” style multi-mount accessory keeps the scanner in place on a table or wall without restricting the tilt range or the ability to remove the scanner for handheld use — ideal for price
checking, pick and pack and more. The locking-mount accessory is ideal for applications where the scanner should not be removed, for example, in customer facing applications such as self checkout and mobile loyalty.
DataCapture DNA delivers unsurpassed value
Only from Zebra, this unique collection of value-add tools makes it easier to deploy, update, troubleshoot, manage and develop applications for your DS9300 Series scanners. For example, 123Scan creates a single barcode to initially stage or update scanners. Develop and deploy applications faster and easier than ever with the Scanner SDK. ScanSpeed Analytics makes it
easy to spot and correct issues before they impact performance and worker productivity. And you can remotely manage your scanners through Scanner Management Service (SMS) or
Windows Management Instrumentation (WMI), eliminating the time and cost for onsite visits.
Specifications
| Scanning | |
|---|---|
| Type | Fixed bar code reader |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, GS1 DataBar, MSI, U.P.C. |
| Working distance | 26" (66 cm) |
| Sensor type | LED |
| Scanner type | 1D/2D |
| Pitch reading angle | -60 - 60° |
| Light levels (direct sunlight) | 0 - 107700 lx |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-232, USB |
| Performance | |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| Light levels (direct sunlight) | 0 - 107700 lx |
| Design | |
| Type | Fixed bar code reader |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| Power | |
| Power source type | RS-232, USB |
| Input voltage | 5.5 V |
| Weight & dimensions | |
| Width | 3.39" (86 mm) |
| Depth | 3.27" (83 mm) |
| Height | 5.71" (145 mm) |
| Weight | 11.2 oz (318 g) |
| Technical details | |
| Type | Fixed bar code reader |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Certification | EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Light levels (direct sunlight) | 0 - 107700 lx |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
