10/100/1000 Mbps Ethernet Port, Atheros MIPS 74Kc, 560 MHz, 64 MB DDR2, 179 x 77.5 x 59.1 mm
Description
The indoor/outdoor NanoStation® AC and NanoStation AC loco are compact, high-performance CPEs featuring airMAX® AC technology and a dedicated Wi-Fi radio for management.

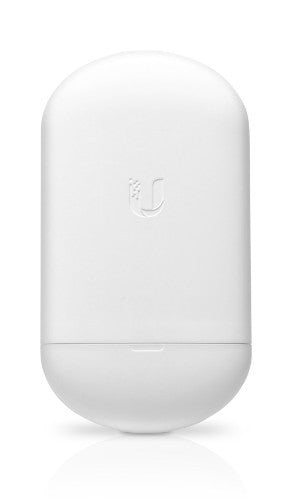

Sleek Industrial DesignThe NanoStation AC and NanoStation AC loco represent the next evolution of the iconic CPE design that revolutionized the Wireless ISP industry.

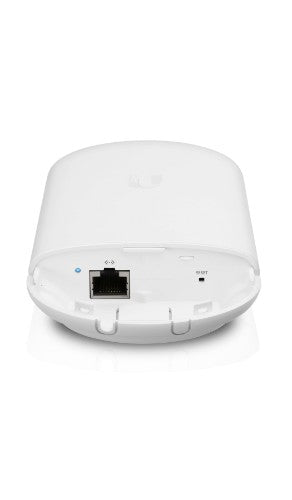

Dual Ethernet ConnectivityThe NanoStation AC provides a secondary Ethernet port with software-enabled PoE. Use this port to conveniently power an external device, such as a PoE security camera, for seamless IP video integration.
Management Wi-Fi RadioEach NanoStation AC model integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.
Improved Surge ProtectionThe NanoStation AC and NanoStation AC loco feature enhanced protection against ESD events.
Now with airOS®8airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Specifications
| Data transmission |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
1000 Mbit/s |
| Performance |
|---|
| 5 GHz |
Yes |
| Frequency band |
5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz |
| Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Maximum outdoor range |
393700.8" (10000 m) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Certification |
CE, FCC, IC |
| Maximum data transfer rate |
1000 Mbit/s |
| Operating system installed |
AirOS |
| Internal memory |
64 MB |
| Wireless LAN features |
|---|
| Frequency band |
5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz |
| Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Maximum outdoor range |
393700.8" (10000 m) |
| Memory |
|---|
| Internal memory |
64 MB |
| Features |
|---|
| 5 GHz |
Yes |
| Frequency band |
5.150 - 5.250, 5.250 - 5.350, 5.470 - 5.725, 5.725 - 5.850 GHz |
| Modulation |
16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Maximum outdoor range |
393700.8" (10000 m) |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Maximum data transfer rate |
1000 Mbit/s |
| Throughput data rate |
450 Mbit/s |
| Operating system installed |
AirOS |
| Internal memory |
64 MB |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| Power |
|---|
| Power over Ethernet (PoE) |
Yes |
| Input current |
0.5 A |
| AC input voltage |
24 V |
| Design |
|---|
| Placement |
Ceiling, Wall |
| Product colour |
White |
| LED indicators |
Network, Power, Signal strength |
| Certification |
CE, FCC, IC |
| Antenna |
|---|
| Antenna type |
Internal |
| Certificates |
|---|
| Certification |
CE, FCC, IC |
| Indication |
|---|
| LED indicators |
Network, Power, Signal strength |
| Weight & dimensions |
|---|
| Width |
7.05" (179 mm) |
| Depth |
3.05" (77.5 mm) |
| Weight |
6.35 oz (180 g) |
| Height |
2.33" (59.1 mm) |
| Operational conditions |
|---|
| Operating relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
-40 - 70 °C |
