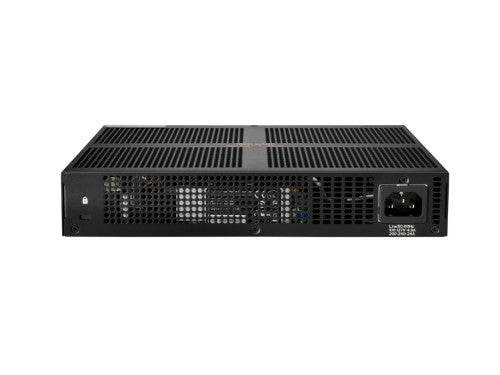

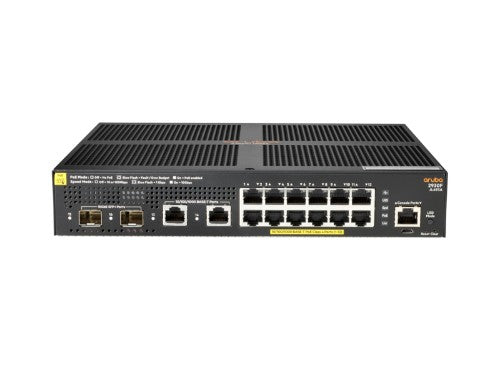

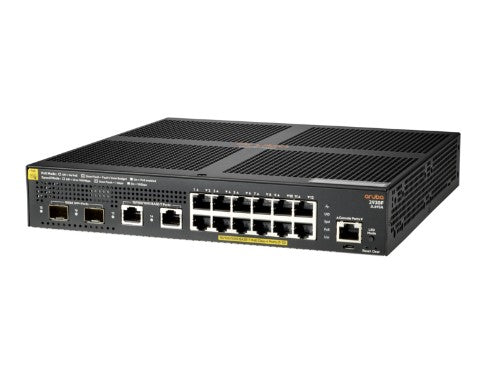

HPE Aruba 2930F 12G PoE+ 2G/2SFP+ Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Save 70%
Description
Aruba 2930F 12G PoE+ 2G/2SFP+ Switch
What's new
- Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave.
- Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support.
- Scale with 8 chassis VSF stacking.
- Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+.
Features
High-Performance Access Layer Switches
- The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
- Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
- Stacking with Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
- Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
Performance and Power at the Edge
- The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
- Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
- Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks.
- Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones.
Security and Quality of Service You Can Rely on
- The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
- Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
- Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
Simplify with Integrated Wired/Wireless Management
- The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.
- Cloud-based management supported by Aruba Central.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
Description
The Aruba 2930F Switch Series is designed for customer creating digital workplaces optimized for mobile users. These Layer 3 access switches are easy to deploy and manage with advanced security and network management tools like Aruba ClearPass Policy Manager, Aruba AirWave and cloud-based Aruba Central. Virtual Switching Framework (VSF) provides stacking scale and simplicity for enterprise edge, SMB and branch offices. The 2930F delivers performance and value with support for RIP routing, Access OSPF, 10GbE uplinks, up to 740W PoE+, robust QoS, and requires no software licensing.What's new
- Aruba Layer 3 switch series that is easy to deploy and manage with Aruba ClearPass Policy Manager and Aruba AirWave.
- Simplify with zero touch provisioning (ZTP) and cloud-based Aruba Central support.
- Scale with 8 chassis VSF stacking.
- Convenient built-in 1GbE or 10GbE uplinks and up to 740W PoE+.
Features
High-Performance Access Layer Switches
- The Aruba 2930F Switch Series provides performance, security, and ease of use for enterprise edge, SMB, and branch office networks.
- Optimized for the digital workplace with unified management tools such as Aruba ClearPass Policy Manager, Aruba Airwave and Aruba Central. Provides optimal configuration automatically when connected to Aruba access points for PoE priority, VLAN configuration, and rogue AP containment.
- Stacking with Virtual Switching Framework (VSF) and convenient built-in 1GbE or 10GbE uplinks and PoE+ models deliver right-size network access performance.
- Robust Layer 3 feature set includes Access OSPF, static and RIP routing, ACLs, sFlow, IPv6 with no software licensing required.
Performance and Power at the Edge
- The Aruba 2930F Switch Series is designed with a powerful Aruba ProVision ASIC, to enable the mobile campus with SDN optimizations, low latency, increased packet buffering, and adaptive power consumption.
- Increase performance with selectable queue configurations and associated memory buffering that meets your specific network application requirements.
- Virtual Switching Framework (VSF) virtualizes up to eight physical switches into one logical device for simpler, flatter, more agile networks.
- Supports up to 740W of internal PoE+ power for wireless access points, cameras and phones.
Security and Quality of Service You Can Rely on
- The Aruba 2930F Switch Series includes security and quality of services features to build a network that meets ever-changing corporate policies and compliances while protecting your data from both inside and outside attacks.
- Flexible authentication options include standards based security protocols such as 802.1X, MAC and Web Authentication, to enhance security and policy-driven application authentication.
- Powerful, multilevel-access security controls include source-port filtering, RADIUS/TACACS+, SSL, Port Security, and MAC address lockout.
Simplify with Integrated Wired/Wireless Management
- The Aruba 2930F Switch Series supports Aruba ClearPass Policy Manager for unified and consistent policy between wired and wireless users and simplifies implementation and management of guest login, user onboarding, network access, security, QoS, and other network policies.
- Supports Aruba Airwave Network Management software to provide common platform for Zero Touch Provisioning management, and monitoring for wired and wireless network devices.
- Cloud-based management supported by Aruba Central.
- RMON and sFlow provide advanced monitoring and reporting capabilities for statistics, history, alarms and events.
- Out-of-band Ethernet management port keeps management traffic segmented from your network data traffic.
Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L3 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Basic switching RJ-45 Ethernet ports quantity | 12 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP+ modules quantity | 2 |
| Network | |
| IGMP snooping | Yes |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Auto-sensing | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3u |
| Full duplex | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Routing entries | 10000 |
| Rate limiting | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| 10G support | Yes |
| Virtual LAN features | |
| VLAN support | Yes |
| IPv4 & IPv6 features | |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Performance | |
| Packet buffer memory | 12.38 MB |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Built-in processor | Yes |
| Processor model | ARM Cortex-A9 |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Processor frequency | 1016 MHz |
| Rack mounting | Yes |
| Built-in processor | Yes |
| Data transmission | |
| Throughput | 41.7 Mpps |
| Latency (1 Gbps) | 3.8 µs |
| Latency (10 Gbps) | 2.9 µs |
| Packet buffer memory | 12.38 MB |
| MAC address table | 32768 entries |
| Switching capacity | 68 Gbit/s |
| Security | |
| SSH/SSL support | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP server |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Routing protocols | IP |
| IPv6 FIB entries | 5000 |
| IPv4 FIB entries | 10000 |
| Memory | |
| Packet buffer memory | 12.38 MB |
| Memory type | DDR3-SDRAM |
| Internal memory | 1024 MB |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| Stackable | Yes |
| Rack mounting | Yes |
| Power | |
| Power consumption (max) | 170 W |
| Power supply included | Yes |
| AC input voltage | 90 - 264 V |
| AC input frequency | 50 - 60 Hz |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Total Power over Ethernet (PoE) budget | 139 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 15 - 95% |
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 15 - 95% |
| Heat dissipation | 68.2 BTU/h |
| Weight & dimensions | |
| Width | 10" (254 mm) |
| Depth | 10" (254 mm) |
| Height | 1.73" (43.9 mm) |
| Weight | 4.85 lbs (2.2 kg) |
