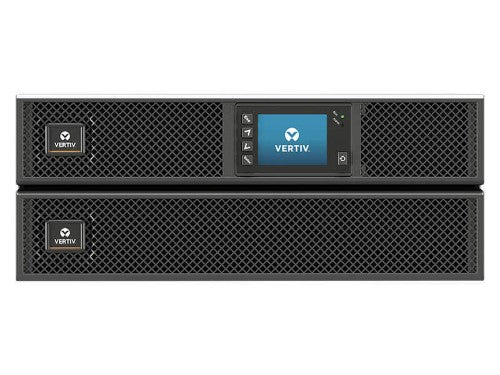

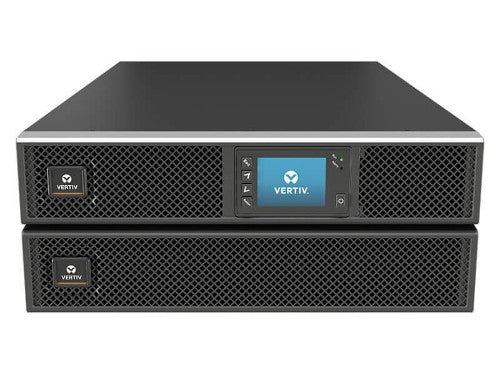

Vertiv Liebert GXT5-6000MVRT4UXLN, Double-conversion (Online), 6 kVA, 6000 W, Sine, 176 V, 280 V
Description
Vertiv Liebert GXT5-6000MVRT4UXLN. UPS topology: Double-conversion (Online), Output power capacity: 6 kVA, Output power: 6000 W. Serial interface type: RS-232, RS-485. Battery technology: Sealed Lead Acid (VRLA), Typical backup time at full load: 4.5 min, Typical backup time at half load: 12.5 min. Form factor: Rackmount/Tower, Product color: Black, Display type: LCD. Width: 16.9" (430 mm), Depth: 25.6" (650 mm), Height: 6.81" (173 mm)
Specifications
| Power |
| Output power |
6000 W |
| Input operation voltage (min) |
176 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
120 V |
| Output operation voltage (max) |
208 V |
| Output power capacity |
6 kVA |
| Efficiency (On-line mode) |
95% |
| Efficiency (ECO mode) |
98% |
| Input frequency |
60 Hz |
| Performance |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Noise level |
50 dB |
| Features |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Output power |
6000 W |
| Input operation voltage (min) |
176 V |
| Input operation voltage (max) |
280 V |
| Output operation voltage (min) |
120 V |
| Output operation voltage (max) |
208 V |
| Noise level |
50 dB |
| Output power capacity |
6 kVA |
| Efficiency (On-line mode) |
95% |
| Efficiency (ECO mode) |
98% |
| Input frequency |
60 Hz |
| Ports & interfaces |
| USB port |
Yes |
| Serial interface type |
RS-232, RS-485 |
| Battery |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at half load |
12.5 min |
| Typical backup time at full load |
4.5 min |
| Design |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Display type |
LCD |
| Operational conditions |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Technical details |
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
| Weight |
125.7 lbs (57 kg) |
| Width |
16.9" (430 mm) |
| Height |
6.81" (173 mm) |
| Depth |
25.6" (650 mm) |
