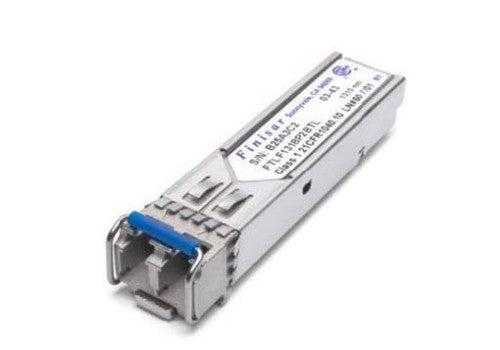

Industrial Temperature 1.25 Gb/s RoHS Compliant Long-Wavelength Pluggable SFP Transceiver
Description
Finisar's FTLF1318P3BTL Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). They simultaneously comply with Gigabit Ethernet as specified in IEEE Std 802.3 and 1x Fibre Channel as defined in FC-PI-2 Rev. 8.00. They are RoHS compliant and lead-free per Directive 2002/95/EC and Finisar Appl. Note AN-2038. Digital diagnostics functions are available via the 2-wire serial bus specified in the SFP MSA.
- Up to 1.25Gb/s bi-directional data links
- Hot-pluggable SFP footprint
- Build-in digital diagnostic functions
- 1310nm Fabry-Perot laser transmitter
- Duplex LC connector
- RoHS compliant and Lead Free
- Up to 10 km on 9/125μm SMF
- Metal enclosure for lower EMI
- Single 3.3V power supply
- Low power dissipation <600mW typical
- Industrial operating temperature range: -40°C to 85°C
Specifications
| Performance |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| Fiber optic connector |
LC |
| Maximum transfer distance |
393700.8" (10000 m) |
| Wavelength |
1310 nm |
| Fiber cable diameters supported (core/cladding) |
9/125 µm |
| Multi-mode fiber (MMF) supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-4 - 85 °C |
| Network |
|---|
| SFP transceiver type |
Fiber optic |
| Interface type |
SFP |
| Maximum data transfer rate |
1000 Mbit/s |
| Fiber optic connector |
LC |
