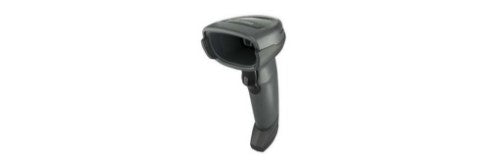

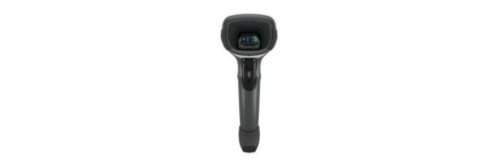

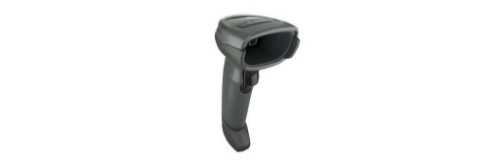

Zebra DS4608-HD Handheld bar code reader 1D/2D LED Black

1D/2D/OCR, 340 mA, IP52, Array Imager, Black, RS-485

Description

Versatility That Does More for Your Whole Store

Shrink lines and deliver an in-store experience that keeps customers coming back again and again. The feature-rich DS4600 Series for Retail helps associates scan items of all sizes, read barcodes in nearly any condition and handle transactions of all kinds. Bulky items in a shopping cart, a customer’s driver’s license at the returns desk, a mobile coupon at checkout, tiny barcodes in the jewelry department, data from a travel document, the DS4600 Series does more for your whole store.

Capture Barcodes Up to 28 Inches Away

Bulky and heavy items won’t slow down your checkout lines. With an industry-leading 28-inch scan range on UPC codes and bright aim dot, it’s easy for checkout associates to scan items in a shopper’s cart without leaving the cashwrap.

One Scanner for Your Whole Store

No matter what kind of data you need to capture, the DS4600 Series is ready for the job. Scan barcodes on a mobile phone. Capture tiny barcodes on jewelry tags, or DotCode and dotted DataMatrix barcodes through cellophane. Read wide barcodes on packages. Collect data from IDs. Parse driver’s license information. And much more.

Fastest Scanning Performance in Its Class

Empower every associate to scan like your best associate. An 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology provide instant barcode capture on even the most challenging barcodes.

Do More Throughout Your Whole Store

With the DS4600 Series for Retail, you get a wide range of productivity-enhancing innovation to streamline more transactions and tasks throughout the store. Intelligent Document Capture not only captures images of documents, but automatically orients, de-skews and brightens the image for optimum clarity. Scan multiple barcodes with a single trigger pull, or automatically single out and scan one barcode on a field of many. You can capture data from travel documents with OCR. And there’s optional support for U.S. driver’s license parsing and EAS tag deactivation.

Specifications

Scanning
Type	Handheld bar code reader
2D (matrix & stacked) barcodes supported	Aztec Code, Composite Codes, Data Matrix, Dot Code A, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39
Linear (1D) barcodes supported	Codabar, Code 11, Code 128, Code 39, Code 93, GS1 DataBar, MSI, PDF417, UPC-E
Sensor type	LED
Scanner type	1D/2D
Pitch reading angle	-60 - 60°
Ports & interfaces
Connectivity technology	Wired
Standard interfaces	RS-485
Performance
LED indicators	Yes
International Protection (IP) code	IP52
Product colour	Black
Design
Type	Handheld bar code reader
LED indicators	Yes
International Protection (IP) code	IP52
Product colour	Black
Power
Power consumption	340 mA
Weight & dimensions
Width	3.86" (98 mm)
Depth	6.5" (165 mm)
Height	2.64" (67 mm)
Weight	5.71 oz (161.9 g)
Technical details
Type	Handheld bar code reader
LED indicators	Yes
International Protection (IP) code	IP52
Product colour	Black
Harmonized System (HS) code	84716070
Operational conditions
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Logistics data
Harmonized System (HS) code	84716070
