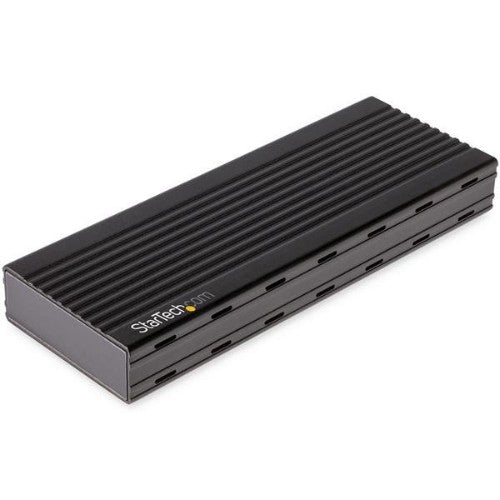

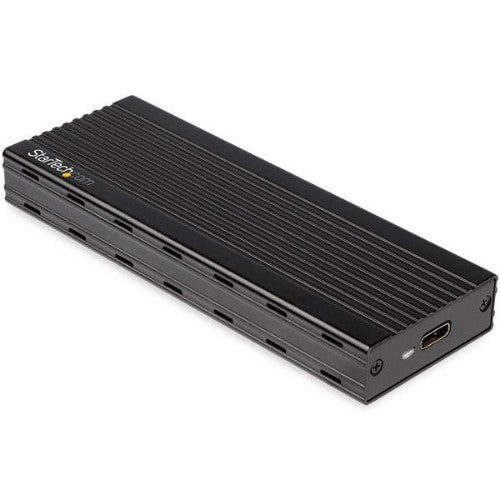

StarTech.com USB-C 10Gbps to M.2 NVMe SSD Enclosure - Portable External M.2 NGFF PCIe Aluminum Case - 1GB/s Read/Write - Supports 2230, 2242, 2260, 2280 - TB3 Compatible - Mac & PC (M2E1BMU31C)
Key Features
- Turn your M.2 NVMe drive into an ultra-fast, ultra-portable storage solution for your USB-C or Thunderbolt 3 devices
- Features a solid aluminum housing designed with ventilation holes for optimal heat dissipation
- Experience an extremely fast performance with support for USB 3.1 Gen 2 and PCI Express 3.0
- Maximize portability with a small footprint, lightweight design and USB-powered performance
- Backward compatible with USB 3.1 Gen 1
Description
External NVMe Enclosure | Thunderbolt 3 Compatible | USB-C Cable Included
This compact M.2 NVMe SSD Enclosure for PCIe SSDs is a highly portable, high-performance data storage solution for your USB-C or Thunderbolt 3 enabled devices.
Unparalleled Performance
Leverage the high speeds of your M.2 NVMe drive, with this external SSD enclosure. It delivers USB 3.1 Gen 2 read/write speeds up to 10Gbps, which is nearly twice the capability of traditional M.2 SATA enclosures and USB 3.1 Gen 1. NVMe allows users to take full advantage of the throughput available to USB 3.1 Gen 2, which would not be possible with a SATA drive.

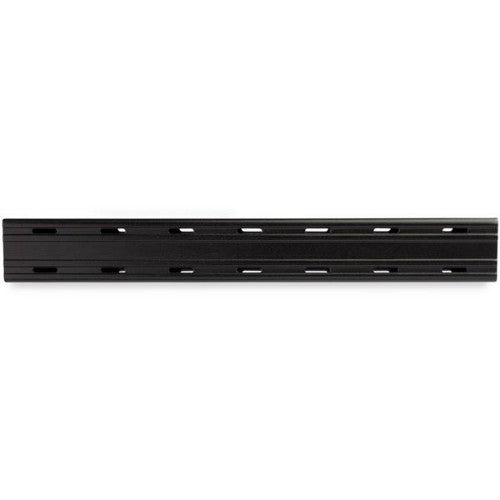

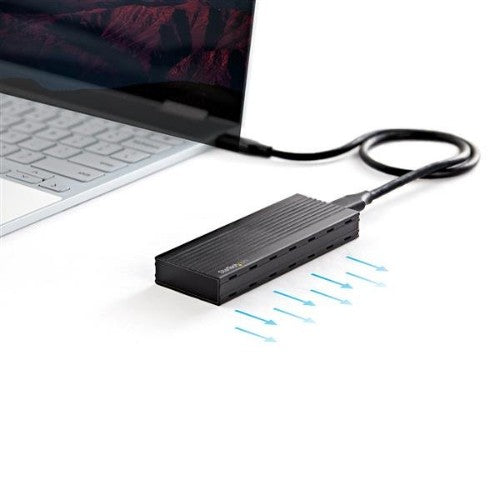

This enclosure also features ventilation holes to help dissipate heat, ensuring an optimal operating temperature and helping to preserve performance.
Truly Portable
This slim, pocket-sized enclosure for PCIe based NVMe is specially designed for mobility, with a small form-factor design that fits easily into your laptop bag. Its lightweight, yet durable aluminum housing helps to ensure your drive won’t be damaged while you’re on the move.
Broad Compatibility
The M.2 NVMe enclosure works with tablets, laptops, desktop computers and hosts that are equipped with USB Type-C and Thunderbolt 3 ports. It's also backward compatible with USB 3.1 Gen 1, making it a convenient solution for the office or other workplace environments.
Additionally, the enclosure supports plug-and-play installation, making it the perfect accessory for professionals on the go.
M2E1BMU31C is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Turn your M.2 NVMe drive into an ultra-fast, ultra-portable storage solution for your USB-C or Thunderbolt 3 devices
- Features a solid aluminum housing designed with ventilation holes for optimal heat dissipation
- Experience an extremely fast performance with support for USB 3.1 Gen 2 and PCI Express 3.0
Specifications
| Storage |
|---|
| Number of storage drives supported |
1 |
| Storage drive size |
M.2 |
| Supported storage drive interfaces |
M.2 |
| Supported storage drive lengths |
30,42,60,80 mm |
| Ports & interfaces |
|---|
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| USB connectivity |
Yes |
| USB connector type |
USB Type-C |
| USB connector gender |
Female |
| USB ports quantity |
1 |
| Integrated USB cable |
No |
| Technical details |
|---|
| Plug and Play |
Yes |
| Material |
Aluminum, Plastic |
| LED indicators |
Activity, Power |
| Data transfer rate |
10 Gbit/s |
| Product colour |
Black |
| Chipset |
ASMedia - ASM2362 |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| Harmonized System (HS) code |
84733080 |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product type |
SSD enclosure |
| Certification |
CE, FCC, REACH |
| Material |
Aluminum, Plastic |
| LED indicators |
Activity, Power |
| Product colour |
Black |
| Performance |
|---|
| UASP support |
Yes |
| Hardware encryption |
Yes |
| Mean time between failures (MTBF) |
233398 h |
| Plug and Play |
Yes |
| Data transfer rate |
10 Gbit/s |
| Chipset |
ASMedia - ASM2362 |
| Power |
|---|
| Power source type |
USB |
| Packaging data |
|---|
| Package weight |
5.47 oz (155 g) |
| Package width |
4.17" (106 mm) |
| Package depth |
6.06" (154 mm) |
| Package height |
1.38" (35 mm) |
| Certificates |
|---|
| Certification |
CE, FCC, REACH |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-10 - 65 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |

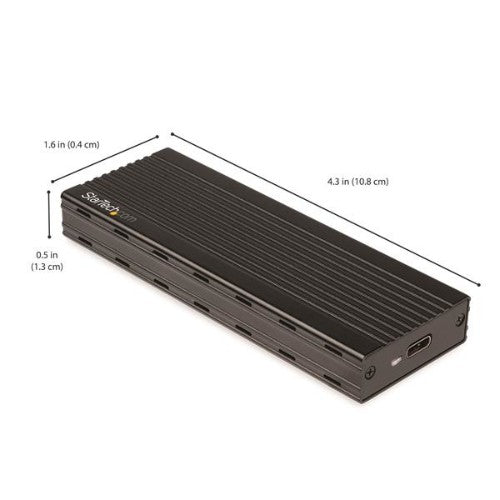

| Weight & dimensions |
|---|
| Weight |
2.29 oz (65 g) |
| Width |
1.57" (40 mm) |
| Depth |
4.25" (108 mm) |
| Height |
0.512" (13 mm) |
| Package weight |
5.47 oz (155 g) |
| Package width |
4.17" (106 mm) |
| Package depth |
6.06" (154 mm) |
| Package height |
1.38" (35 mm) |

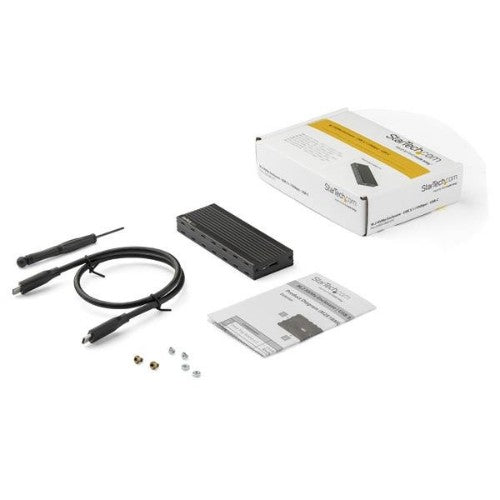

| Packaging content |
|---|
| Manual |
Yes |
| Screwdriver included |
Yes |
| Cables included |
USB Type-C to USB Type-C |
| Logistics data |
|---|
| Master (outer) case width |
15.1" (384 mm) |
| Master (outer) case length |
18.5" (470 mm) |
| Master (outer) case height |
9.8" (249 mm) |
| Products per master (outer) case |
60 pc(s) |
| Harmonized System (HS) code |
84733080 |
