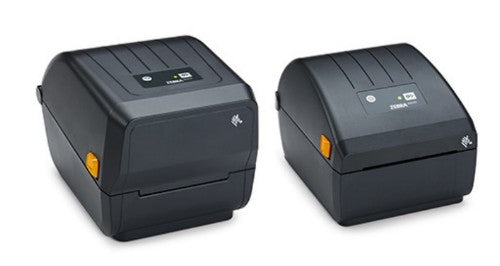

Zebra ZD220 label printer Direct thermal 203 x 203 DPI 102 mm/sec Wired

Thermal Transfer Printer (74M), Standard EZPL, 203 dpi, US Power Cord, USB, Dispenser (Peeler)

Description

Not all printers are created equally, especially basic models. To reduce costs, value printers are often constructed using less expensive components. Many fail to perform under more demanding duty cycles, create delays and downtime for repairs, and require replacement after only a few years of use. Instead of conserving budget, customers are left with greater expense and hassle.

Zebra does it differently. The ZD220 desktop printer gives you reliable operation and basic features at an affordable price—both at the point of purchase and across the entire lifecycle. Engineered with Zebra quality, it boasts a dual-wall construction for added durability. And, it is ENERGY STAR® qualified to reduce your operational expenses. Built to last for years, the ZD220 provides an outstanding return on your investment.

Basic Features for Simple Operation
This 4-inch printer produces labels quickly, up to 4” per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. Choose from direct thermal or thermal transfer models, and add an optional factory-installed peeler. The ZD220 features a core set of Print DNA software applications, powered by Link-OS® Basic, to deliver a cost-effective and dependable print experience.

Backed by Zebra’s Worldwide Service and Support
Access support quickly anywhere around the globe through Zebra’s trusted network of more than 10,000 partners. Avoid costly repairs and downtime with an affordable service plan that’s tailored to the coverage you need for your desktop printer. Zebra’s OneCare SV provides the right level of service at the right price. It gives you two years of coverage for normal wear and tear, double the standard warranty coverage, priority turnaround times at the depot and more—all for a tiny fraction of the cost of a single repair.

Get Printing Quickly
The ZD220 is simple to install and begin printing – right out of the box. USB connectivity allows for universal interoperability. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. And, media changes are expedited with Zebra’s OpenACCESS™ clamshell design. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.

Consistently Exceptional Zebra Certified Supplies
Printing supplies can impact everything from printhead lifespan to operational efficiency. That’s why we design, produce and rigorously pretest our own line of thermal printing supplies to ensure consistent, optimized performance in your Zebra printer—and peace of mind for you. For industry-leading quality, service and thermal printing expertise, choose Zebra Certified Supplies.
The ZD220 gives you the quality and reliability you expect from Zebra. And, it helps you conserve costs now, and for years to come. Gain your competitive edge with Zebra.

Specifications

Print quality
Maximum resolution	203 x 203 DPI
Maximum printing width	4.09" (10.4 cm)
Printing
Colour	No
Print speed	102 mm/sec
Maximum resolution	203 x 203 DPI
Maximum printing width	4.09" (10.4 cm)
Print technology	Direct thermal
Design
LED indicators	Status
Product colour	Black
Built-in display	No
Certification	IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Memory
Internal memory	128 MB
Flash memory	256 MB
Paper handling
Ribbon width	4.29" (10.9 cm)
Ribbon length	2913.4" (74 m)
Media thickness	0.08 mm
Maximum roll diameter	5" (12.7 cm)
Maximum label width	4.09" (10.4 cm)
Maximum label length	39" (0.991 m)
Ports & interfaces
USB 2.0 ports quantity	1
Connectivity technology	Wired
Bluetooth	No
USB port	Yes
Performance
Built-in barcodes	CODABAR (NW-7), Code 11, Code 49, Code 93, Code-128 Codabar Library, Code-39 Library, Data Matrix, EAN13, EAN8, MaxiCode, PDF417, UPC-A, UPC-E
Number of fonts	16
Ribbon width	4.29" (10.9 cm)
Ribbon length	2913.4" (74 m)
Internal memory	128 MB
Flash memory	256 MB
Certification	IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Page description languages	EPL, EPL2, XML, ZPL, ZPL II
Power
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Technical details
Product colour	Black
Built-in barcodes	CODABAR (NW-7), Code 11, Code 49, Code 93, Code-128 Codabar Library, Code-39 Library, Data Matrix, EAN13, EAN8, MaxiCode, PDF417, UPC-A, UPC-E
Number of fonts	16
Ribbon width	4.29" (10.9 cm)
Ribbon length	2913.4" (74 m)
Maximum label width	4.09" (10.4 cm)
Maximum label length	39" (0.991 m)
LED indicators	Status
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84433210
Certificates
Certification	IEC 60950-1, EN55022 Class B, EN55024, EN61000-3-2, EN61000-3-3, FCC Class B, ICES-003, FCC 15.209; 15.247(d), IC RSS 247, EN 300 328, EN 301 893, EN 62311, cTUVus CE Marking, VCCI, C-Tick, S-Mark, CCC, CU, BSMI, KCC, SABS, IN-Metro, BIS, NOM
Operational conditions
Storage temperature (T-T)	-40 - 60 °C
Storage relative humidity (H-H)	5 - 95%
Operating temperature (T-T)	4.4 - 41 °C
Operating relative humidity (H-H)	10 - 90%
Weight & dimensions
Width	6.93" (176 mm)
Depth	8.66" (220 mm)
Height	5.94" (151 mm)
Weight	2.43 lbs (1.1 kg)
Packaging data
Quantity per pack	1 pc(s)
Packaging content
AC adapter included	Yes
Cables included	AC
Quantity per pack	1 pc(s)
Other features
Quantity per pack	1 pc(s)
LED indicators	Status
Logistics data
Harmonized System (HS) code	84433210
