24" LCD, 1920 x 1080, HDMI, DisplayPort, VGA, Full HD 1080p, 250 cd/m²
Description

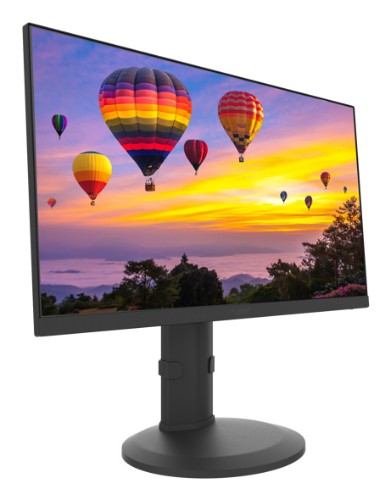

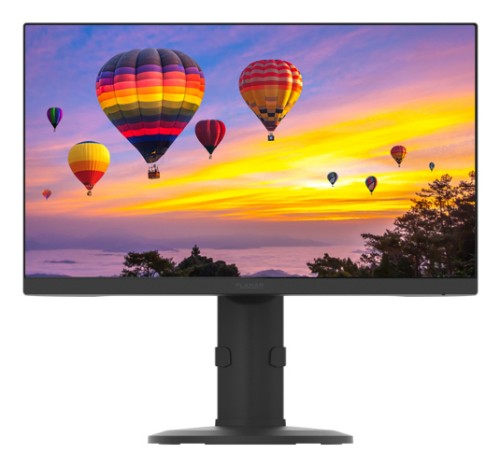

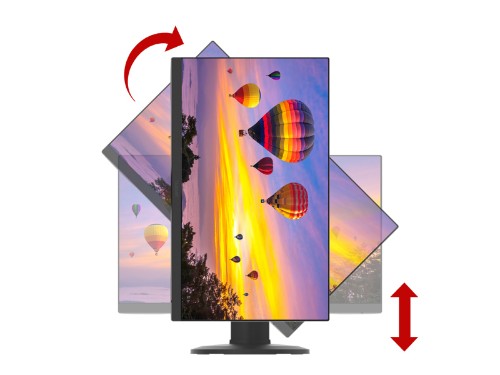

The slim Planar® PZN2410 is a 24” Full HD LCD monitor with an ultra-thin bezel design, an IPS panel, integrated TrueMedia™ speakers and multiple video inputs. An ergonomically-designed stand with height adjustment, pivot, swivel and tilt provides enduser comfort while the built-in USB 3.0 hub allows home, office or healthcare users to conveniently connect devices. As an added feature, one of the USB 3.0 ports provides BC1.2 and can power devices up to 1.5A.
Specifications
| Display |
|---|
| HDCP |
Yes |
| Display brightness (typical) |
250 cd/m² |
| Screen shape |
Flat |
| Display number of colours |
16.7 million colors |
| Native aspect ratio |
16:9 |
| Maximum refresh rate |
75 Hz |
| HD type |
Full HD |
| Display technology |
LCD |
| Contrast ratio (typical) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Pixel pitch |
0.0108 x 0.0108" (0.275 x 0.275 mm) |
| Supported video modes |
1080p |
| Display resolution |
1920 x 1080 pixels |
| Response time |
6 ms |
| Display diagonal |
24" |
| Touchscreen |
No |
| Panel type |
IPS |
| Audio |
|---|
| Built-in speaker(s) |
No |
| Performance |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
No |
| Flicker-free technology |
Yes |
| Multimedia |
|---|
| Built-in speaker(s) |
No |
| Built-in camera |
No |
| Design |
|---|
| Product colour |
Black |
| Camera |
|---|
| Built-in camera |
No |
| Ports & interfaces |
|---|
| Headphone out |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDCP |
Yes |
| Audio input |
Yes |
| Audio output |
Yes |
| HDMI |
Yes |
| USB 2.0 Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
1 |
| Technical details |
|---|
| Height (without stand) |
12.8" (324.8 mm) |
| Depth (without stand) |
1.75" (44.4 mm) |
| Width (without stand) |
21.3" (540.5 mm) |
| Cable lock slot |
Yes |
| HDMI |
Yes |
| Product colour |
Black |
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, cTUVus |
| Power supply type |
Internal |
| Weight (with stand) |
12.6 lbs (5.7 kg) |
| Touchscreen |
No |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Cable lock slot |
Yes |
| Tilt angle range |
-5 - 20° |
| Height adjustment |
Yes |
| Cable lock slot type |
Kensington |
| Tilt adjustment |
Yes |
| Power |
|---|
| Power supply type |
Internal |
| AC input voltage |
100 - 240 V |
| Power consumption (standby) |
0.5 W |
| Power consumption (typical) |
22 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Height (without stand) |
12.8" (324.8 mm) |
| Depth (without stand) |
1.75" (44.4 mm) |
| Width (without stand) |
21.3" (540.5 mm) |
| Width (with stand) |
21.3" (540.5 mm) |
| Depth (with stand) |
9.63" (244.5 mm) |
| Height (with stand) |
19.8" (502.1 mm) |
| Weight (with stand) |
12.6 lbs (5.7 kg) |
| Weight (without stand) |
7.5 lbs (3.4 kg) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Packaging data |
|---|
| Quick start guide |
Yes |
| Cables included |
AC, DisplayPort, HDMI, USB |
| Other features |
|---|
| Warranty period |
3 year(s) |
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, cTUVus |
| Height (without stand) |
12.8" (324.8 mm) |
| Depth (without stand) |
1.75" (44.4 mm) |
| Width (without stand) |
21.3" (540.5 mm) |
| Quick start guide |
Yes |
| HDMI |
Yes |
| Power supply type |
Internal |
| Touchscreen |
No |
