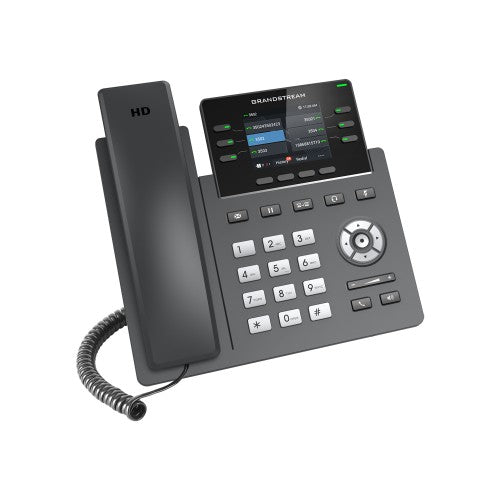

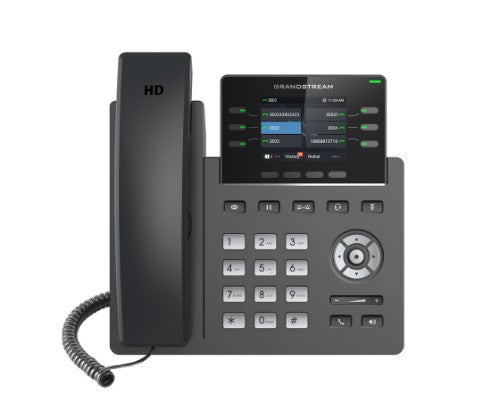

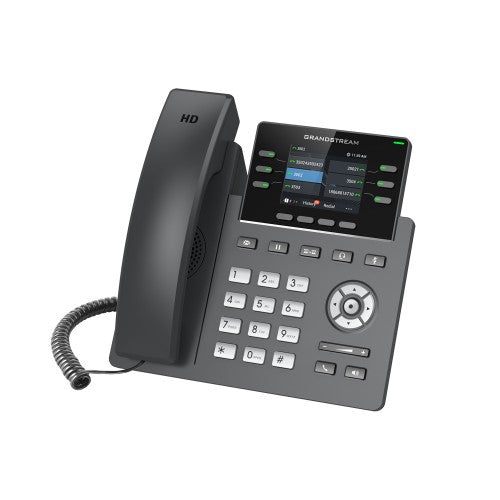

Grandstream Networks GRP2613, IP Phone, Black, Wired handset, In-band, Out-of band, SIP info, 4 lines, 2000 entries
Description
Grandstream Networks GRP2613. Product type: IP Phone, Product color: Black, Handset type: Wired handset. Dual-Tone Multi-Frequency (DTMF) modes: In-band, Out-of band, SIP info. Lines quantity: 4 lines, Phonebook capacity: 2000 entries. Volume control: Buttons. Display: TFT, Display diagonal: 2.4", Display resolution: 320 x 240 pixels
Specifications
| Features |
|---|
| Number of programmable keys |
30 |
| Dual-Tone Multi-Frequency (DTMF) modes |
In-band, Out-of band, SIP info |
| Phonebook sharing |
Yes |
| Handset type |
Wired handset |
| Firmware upgradeable |
Yes |
| Volume control |
Buttons |
| Product colour |
Black |
| Security |
|---|
| Security algorithms |
256-bit AES, MD5, SRTP, SSL/TLS |
| Design |
|---|
| Product type |
IP Phone |
| Handset type |
Wired handset |
| Product colour |
Black |
| Performance |
|---|
| Dual-Tone Multi-Frequency (DTMF) modes |
In-band, Out-of band, SIP info |
| Phone features |
|---|
| Phonebook sharing |
Yes |
| Answering machine |
Yes |
| Call log entries |
1000 |
| Lines quantity |
4 lines |
| Redialing |
Yes |
| Phonebook capacity |
2000 entries |
| Full duplex |
Yes |
| Conference call |
Yes |
| Call waiting |
Yes |
| Call pick up |
Yes |
| Call park |
Yes |
| Call hold |
Yes |
| Call forwarding |
Yes |
| Management features |
|---|
| Number of programmable keys |
30 |
| Firmware upgradeable |
Yes |
| Volume control |
Buttons |
| Display |
|---|
| Touchscreen |
No |
| Display resolution |
320 x 240 pixels |
| Display diagonal |
2.4" |
| Display |
TFT |
| Camera |
|---|
| Front camera |
No |
| Audio |
|---|
| Voice codecs |
G.711alaw, G.711ulaw, G.722, G.723, G.726, G.729A, G.729B, OPUS, iLBC |
| Speakerphone |
Yes |
| Microphone mute |
Yes |
| Network |
|---|
| Networking standards |
IEEE 802.1p, IEEE 802.1x, IEEE 802.3af |
| Ethernet LAN interface type |
Gigabit Ethernet |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Wi-Fi |
No |
| Supported network protocols |
SIP RFC3261, TCP/IP/UDP, RTP/RTCP, HTTP/HTTPS, ARP, ICMP, DNS(A record, SRV, NAPTR), DHCP, PPPoE, TELNET, TFTP, NTP, STUN, SIMPLE, LLDP, LDAP, TR-069, 802.1x, TLS, SRTP, IPV6 |
| Security algorithms |
256-bit AES, MD5, SRTP, SSL/TLS |
| Quality of Service (QoS) support |
Yes |
| Ethernet LAN |
Yes |
| Bluetooth |
No |
| Technical details |
|---|
| Harmonized System (HS) code |
85171800 |
| Ports & interfaces |
|---|
| RJ-9 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| DC-in jack |
Yes |
| Certificates |
|---|
| Certification |
FCC: 15 B; FCC 68 HAC
CE: EN 55032; EN 55035; EN 61000-3-2; EN 61000-3-3; EN 62368-1
RCM: AS/NZS CISPR32;AS/NZS 61000.3.2; AS/NZS 61000.3.3;AS/NZS 62368.1; AS/CA
S004 |
| Power |
|---|
| AC adapter output current |
0.6 A |
| Power over Ethernet (PoE) |
Yes |
| AC adapter output voltage |
5 V |
| AC adapter input voltage |
100 - 240 V |
| Operational conditions |
|---|
| Storage temperature (T-T) |
10 - 90 °C |
| Storage relative humidity (H-H) |
-10 - 60% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
7.99" (203 mm) |
| Depth |
7.6" (193 mm) |
| Height |
2.05" (52.1 mm) |
| Weight |
19.5 oz (554 g) |
| Package weight |
33 oz (936 g) |
| Packaging content |
|---|
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Yes |
| Number of handles included |
1 pc(s) |
| Quick start guide |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85171800 |
