GXT5-1000LVRT2UXL - 1000VA/1000W, 120V
Key Features
- Enhanced local and remote management capabilities enable users to understand the condition of the critical infrastructure space and take action when necessary
- High power factor operation up to unity provides the highest available power (watt) for use by connected IT equipment, allowing for more connected devices
- Integrated serial connection for advanced console server integration or direct terminal control of the UPS
- Energy Star® 2.0 certification with efficiency in online (95%) and Active ECO (98%) modes
- SNMP network communications with optional Liebert® RDU101 NIC and free Trellis™ Power Insight
- Gravity-sensing, color LCD for easy configuration and system diagnosis
- Scalable power with auto-detection of external battery cabinets
Description

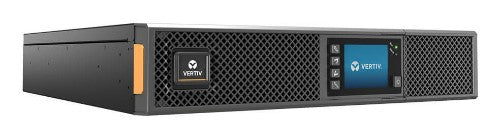

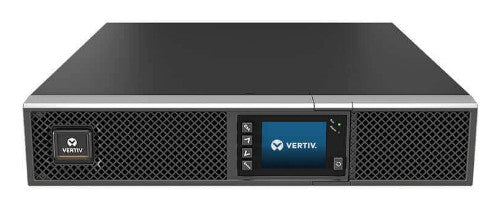

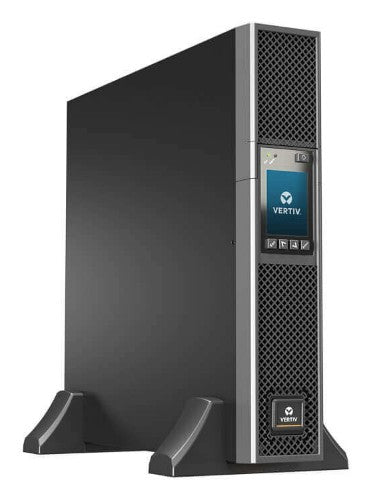

The Vertiv™ Liebert® GXT5 UPS, with a capacity of 1000VA/1000W, is a 2U compact and efficient UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the Vertiv Liebert GXT5 UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements.
The Vertiv™ Liebert® GXT5 UPS offers a full range of single-phase UPS. It’s easy to deploy with convertible rack/tower design that offers installation flexibility, and its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and configuration is also made easy auto-detection of external battery cabinets for additional runtime solutions. With available network card (NIC), the Vertiv suite of management solutions including Trellis™ Power Insight and Vertiv™ LIFE™ Services remote service delivery tools are available to support your critical infrastructure. Designed for high availability and capacity, these UPS models with high output power factors up to unity, provide more usable power in a compact solution, enabling more usable power for connected equipment. High efficiency operation of this Energy Star® 2.0 certified UPS means you get protection while being energy conscience. Increased efficiency is also achieved with Active ECO operating mode.
Specifications
| Power |
|---|
| Output power |
1000 W |
| Input operation voltage (min) |
60 V |
| Input operation voltage (max) |
150 V |
| Output operation voltage (min) |
110 V |
| Output operation voltage (max) |
125 V |
| Output power capacity |
1 kVA |
| Efficiency (On-line mode) |
95% |
| Efficiency (ECO mode) |
98% |
| Input frequency |
40 - 70 Hz |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Noise level |
46 dB |
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Output power |
1000 W |
| Input operation voltage (min) |
60 V |
| Input operation voltage (max) |
150 V |
| Output operation voltage (min) |
110 V |
| Output operation voltage (max) |
125 V |
| Noise level |
46 dB |
| Output power capacity |
1 kVA |
| Efficiency (On-line mode) |
95% |
| Efficiency (ECO mode) |
98% |
| Input frequency |
40 - 70 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-485 |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
NEMA 5–15R |
| Power plug |
NEMA 5-15P |
| RS-232 ports |
1 |
| USB port type |
USB Type-B |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Typical backup time at half load |
17.9 min |
| Typical backup time at full load |
6.7 min |
| Design |
|---|
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Technical details |
|---|
| Sustainability certificates |
ENERGY STAR |
| Compliance certificates |
REACH, RoHS |
| Certificates |
|---|
| Compliance certificates |
REACH, RoHS |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Weight |
37 lbs (16.8 kg) |
| Width |
16.9" (430 mm) |
| Height |
3.35" (85 mm) |
| Depth |
15.7" (400 mm) |
