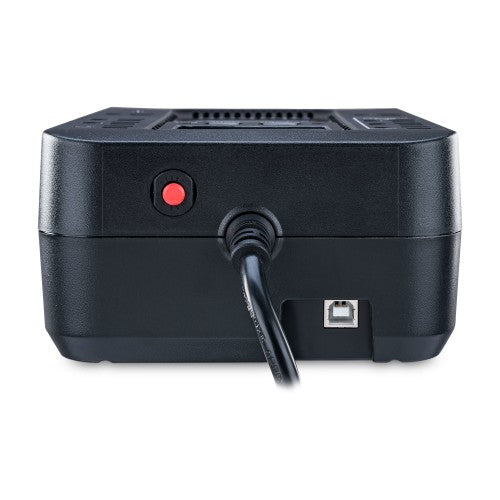

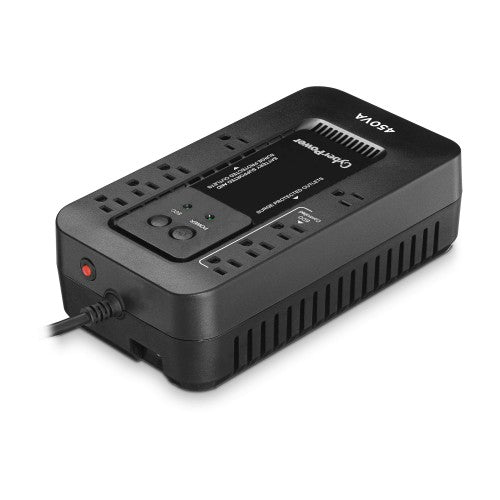

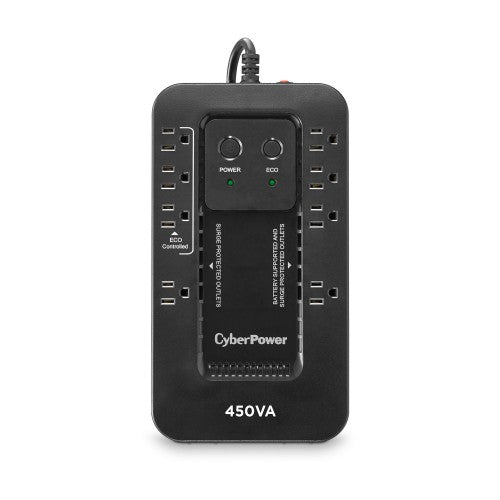

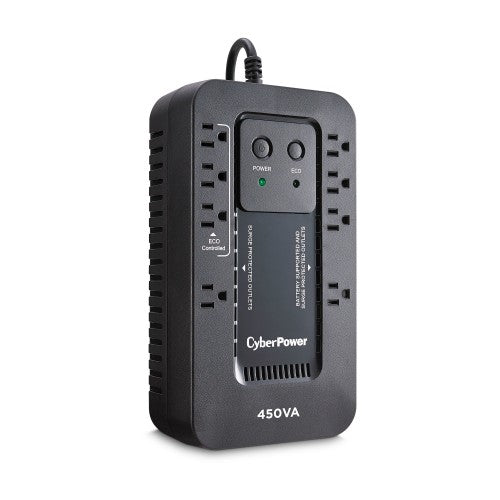

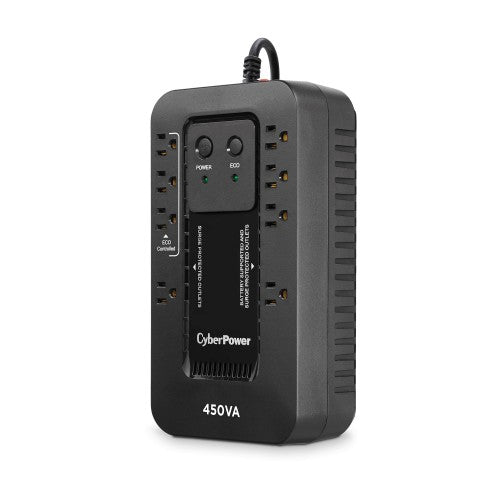

CyberPower EC450G uninterruptible power supply (UPS) Standby (Offline) 0.45 kVA 260 W 8 AC outlet(s)

450 VA / 260 W, Standby, Simulated Sine Wave, 120 VAC ± 5%, NEMA 5-15P, 5 ft. cord, 8 × NEMA 5-15R, USB, PowerPanel® Personal

Key Features

• Capacity: 450 VA / 260 W
• Topology: Standby
• Waveform: Simulated Sine Wave
• Output: 120 VAC ± 5%
• Plug type & cord: NEMA 5-15P, 5 ft. cord
• Outlet types: 8 × NEMA 5-15R
• Communication: USB
• Management software: PowerPanel® Personal

Description

A compact UPS with standby topology, the CyberPower Ecologic EC450G provides battery backup (using simulated sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems. During power interruptions, the EC450G offers reliable power protection and battery backup. When the battery backup detects that the computer is off or in sleep mode, computer peripherals connected to the ECO Mode, surge protected outlets will be automatically turned off, reducing power usage and lowering energy costs (USB connection required). The EC450G comes with a three-year warranty (including coverage of batteries) and a $100,000 Connected Equipment Guarantee.

Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.

Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Standby Topology
Ensures that when incoming power drops below or surges above safe voltage levels, the UPS switches to DC battery power and then inverts to AC power to run connected equipment.

Simulated Sine Wave Output
Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.

GreenPower UPS™ High-Efficiency
Reduces power consumption by utilizing a compact charger and power inverter to create an ultra-efficient backup power system for home and office use.

ECO Mode
Is an energy-efficient, user selectable feature for some surge-protected outlets. When the computer is off or is in sleep mode, the UPS automatically cuts power to computer peripherals connected to any outlets in ECO mode.

LED Status Lights
Indicate Power On, ECO on/off.

PowerPanel® Personal Software
Includes a free software download that provides a user-friendly dashboard interface for controlling and monitoring the UPS.

ENERGY STAR
This model is an ENERGY STAR® certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.

Specifications

Power
Output frequency	50/60 Hz
Output voltage regulation	5%
Output power	260 W
Input operation voltage (min)	96 V
Input operation voltage (max)	140 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	426 J
Maximum current	10 A
Output power capacity	0.45 kVA
Input frequency	47/63 Hz
Performance
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Standby (Offline)
Waveform	Sine
LED indicators	Yes
EMI/RFI noise filtering	Yes
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Low battery alarm, Overload alarm
UPS topology	Standby (Offline)
Waveform	Sine
Output voltage regulation	5%
Output power	260 W
Input operation voltage (min)	96 V
Input operation voltage (max)	140 V
Output operation voltage (min)	120 V
Output operation voltage (max)	120 V
Surge energy rating	426 J
Maximum current	10 A
EMI/RFI noise filtering	Yes
Audible alarm(s)	Yes
Output power capacity	0.45 kVA
Input frequency	47/63 Hz
Ports & interfaces
USB port	Yes
AC outlets quantity	8 AC outlet(s)
Power plug	NEMA 5-15P
Battery
Battery voltage	12 V
Battery capacity	2.9 Ah
Battery technology	Sealed Lead Acid (VRLA)
Number of battery cells	1
Battery recharge time	8 h
Typical backup time at half load	6 min
Typical backup time at full load	2 min
Design
Form factor	Compact
LED indicators	Yes
Product colour	Black
Safety	UL1778, cUL 107.3, FCC DOC Class B
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-15 - 45 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Technical details
Output frequency	50/60 Hz
Compliance certificates	RoHS
Weight & dimensions
Package width	4.38" (111.2 mm)
Package depth	13.2" (336.6 mm)
Package height	8.13" (206.5 mm)
Weight	4.5 lbs (2.04 kg)
Width	10.6" (269 mm)
Package weight	5.49 lbs (2.49 kg)
Height	3.11" (79 mm)
Depth	5.91" (150 mm)
Packaging data
Package width	4.38" (111.2 mm)
Package depth	13.2" (336.6 mm)
Package height	8.13" (206.5 mm)
Package weight	5.49 lbs (2.49 kg)
Certificates
Safety	UL1778, cUL 107.3, FCC DOC Class B
