JU-DK0D11-S1, VL817+VL103R, 5Gb/s, 3840x2160 @30Hz, DP, HDMI, VGA, USB 3.1
Key Features

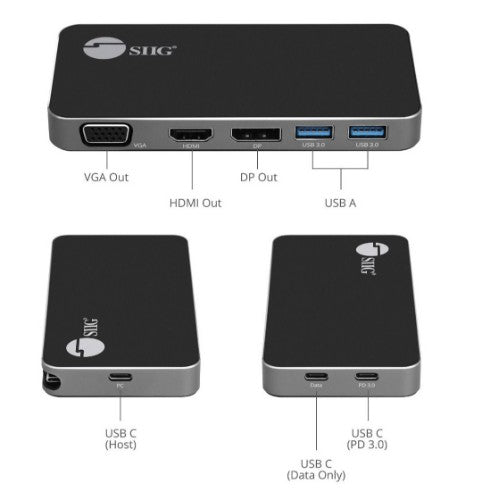

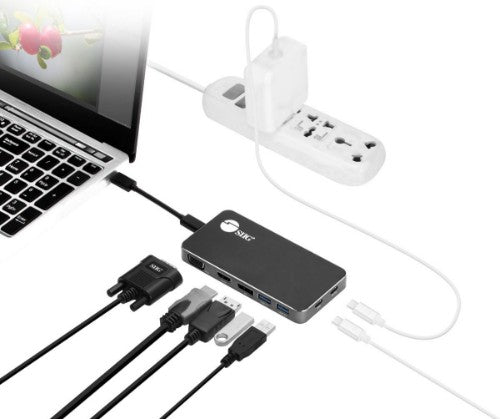

- Transform a single USB-C port, with DP Alt mode or Thunderbolt 3 technology, into multiple connections simultaneously, including triple displays (one DisplayPort, one HDMI, and one VGA)

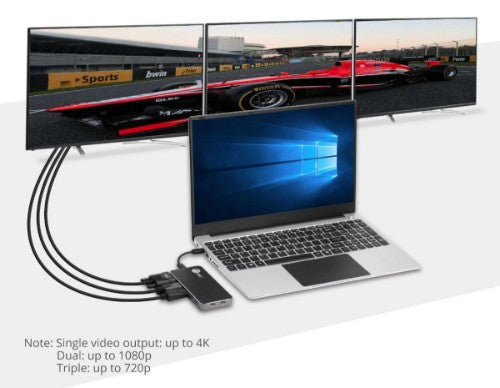

- DisplayPort Multi Stream Transport Technology (MST) – Supports single 4K @30Hz Ultra HD video output or dual Full-HD 1080p video output (HDMI/DP, DP/VGA, HDMI/VGA) or triple HD 720p video output
- Supports Power Delivery 3.0 specification provides up to 100W power to charge Laptops, Notebooks, and other devices
- Adds 1 USB-C data and 2 USB Type-A ports with USB 3.1 Gen 1 data transfer rate up to 5Gb/s to your computer

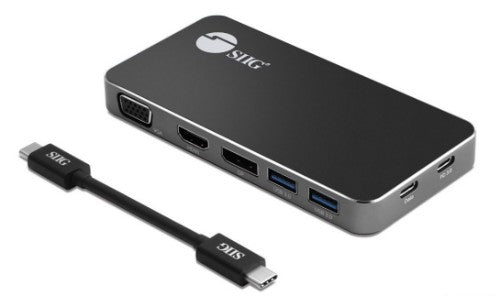

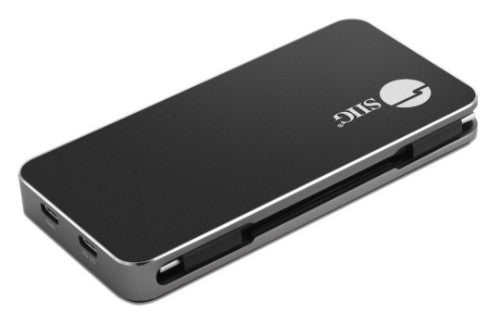

- Lightweight aluminum chassis with detachable/stowing USB cable is perfect for business trip and traveling
- Anti-slip rubber pads keeps the docking station firmly planted to the desktop
Description
Versatile external docking station adds HDMI, DisplayPort, VGA, USB 3.0, and USB-C connectivity to your USB-C enabled Windows computer with up to 100W PD charging of your laptop
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
3 |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| HDMI ports quantity |
1 |
| VGA (D-Sub) ports quantity |
1 |
| USB Power Delivery |
Yes |
| USB Power Delivery up to |
100 W |
| Performance |
|---|
| Country of origin |
China |
| Product colour |
Black, Gray |
| Housing material |
Aluminum, Plastic |
| Hub interfaces |
DisplayPort, HDMI, USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C, VGA |
| Technical details |
|---|
| Product colour |
Black, Gray |
| Cable length |
47.2" (1.2 m) |
| Power |
|---|
| Power supply type |
USB |
| Output voltage |
20/15/9/5 V |
| Output current |
3 A |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 90% |

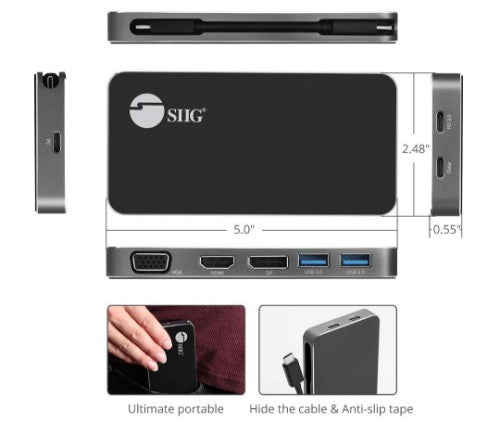

| Weight & dimensions |
|---|
| Weight |
3.36 oz (95.2 g) |
| Width |
5" (127 mm) |
| Depth |
2.48" (62.9 mm) |
| Height |
0.508" (12.9 mm) |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8, Windows 8.1 |
| Country of origin |
China |
| Product colour |
Black, Gray |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Power supply type |
USB |
| Cable length |
47.2" (1.2 m) |
