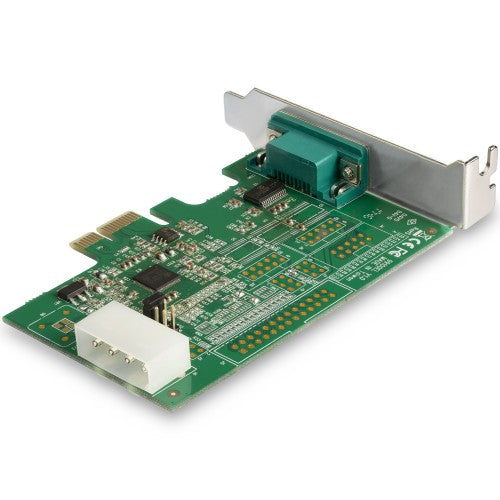

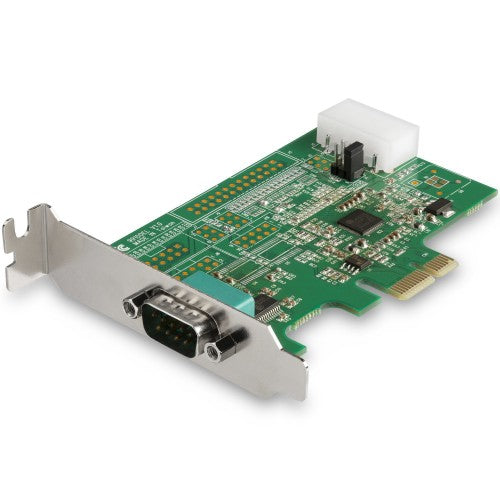

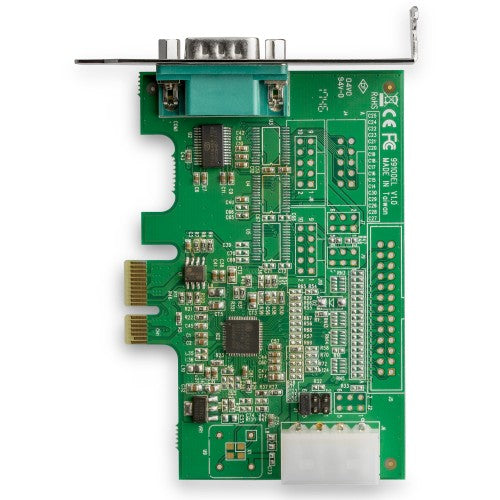

StarTech.com 1-port PCI Express RS232 Serial Adapter Card - PCIe RS232 Serial Host Controller Card - PCIe to Serial DB9 - 16950 UART - Low Profile Expansion Card - Windows & Linux (PEX1S953LP)
Key Features

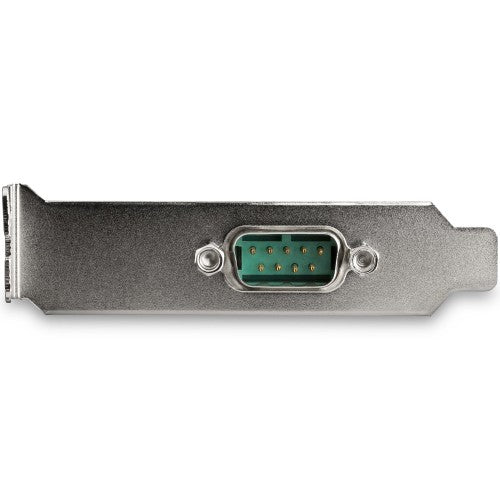

- 1 PORT SERIAL CARD: Serial controller card w/ 16950 UART based on ASIX AX99100, allows 1x DB9 port w/bi-directional RS232 speeds up to 921.6Kbps per port, available 256 byte FIFO buffer & 9th data bit; Upgraded version of our popular card PEX1S952LP

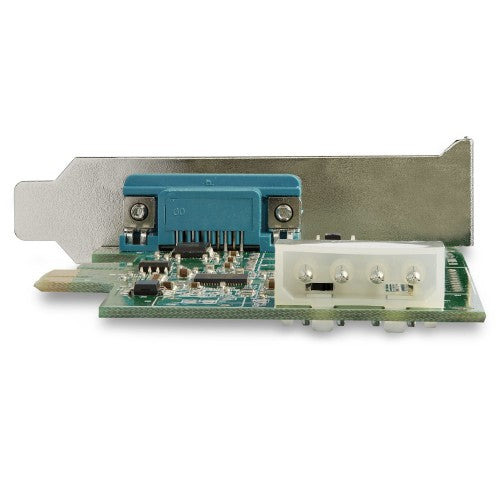

- OPTIONAL CONFIGURABLE POWER: PCI Express RS232 serial adapter card provides choice of 12v, 5v, or none through pin 9 w/up to 2A total

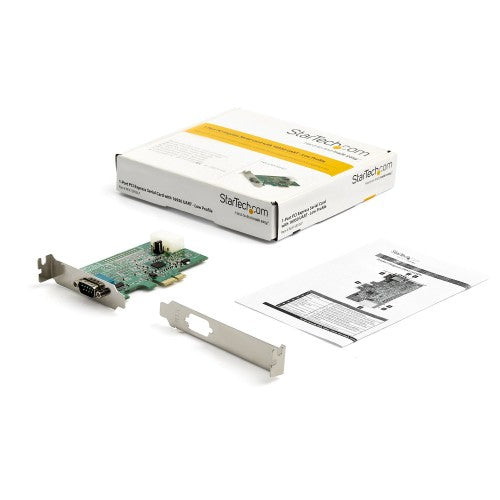

- STANDARD PROFILE & LOW PROFILE BRACKET: PCIe serial card comes w/ a low profile bracket pre-installed & 1x full profile bracket is incl for versatile install; Supports Windows XP and up & Linux
- VERSATILE APPLICATIONS: For low/standard profile desktop/servers w/ uses in point of sale terminals, PLCs, control/automation in factories, scientific sensors, medical equipment, scanner, oscilloscope
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; PCI-e RS232 Serial expansion card is backed for life by StarTech.com, incl. free 24/5 North America based multi-lingual tech support
Description
PCI Express to Serial Adapter | 921.4Kbps | Windows® and Linux® Compatible
This RS232 Serial Adapter Card lets you add an RS232 DB9 serial port to your computer through a PCI Express (PCIe) slot. It enables you to interact with serial devices such as card readers, printers, PIN pads, and modems, at speeds of up-to 921.4Kbps.
Maximum Compatibility
With broad OS support, including for Windows and Linux, this PCI Express card is easy to integrate into mixed environments. The card comes pre-configured with a low-profile bracket, and includes an optional full-profile bracket, so installation is easy regardless of the case form factor.
Experience Optimal Technology
This PCIe to serial adapter supports the following features:
• Compatible with industry standard 16950 UART
• Supports max baud rate of up-to 921.4Kbps
• Provides 5/12V power output on Pin 9 when external power is connected
• 128-byte depth FIFO per transmitter and receiver
• Supports 9, 8, 7, 6, 5 data bits
• Asix AX99100 chipset
• PCI Express 1.1 compliant
PEX1S953LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Output interface |
Serial |
| Serial interface type |
RS-232 |
| Serial ports quantity |
1 |
| Peripheral (Molex) power connectors (4-pin) |
1 |
| Host interface |
PCIe |
| Expansion card standard |
PCIe 1.1 |
| Technical details |
|---|
| Chipset |
Asix AX99100 |
| FIFO (First In, First Out) |
256 B |
| Sustainability compliance |
Yes |
| Compliance certificates |
CE, RoHS |
| Performance |
|---|
| Stop bits |
1, 1.5, 2 |
| Data bits |
5, 6, 7, 8, 9 |
| Baud rate |
921.4 Kbit/s |
| Chipset |
Asix AX99100 |
| FIFO (First In, First Out) |
256 B |
| Flow control support |
Yes |
| Product colour |
Green |
| Harmonized System (HS) code |
84733020 |
| Colour |
|---|
| Product colour |
Green |
| Design |
|---|
| Mean time between failures (MTBF) |
277385 h |
| Internal |
Yes |
| Product colour |
Green |
| Features |
|---|
| Stop bits |
1, 1.5, 2 |
| Data bits |
5, 6, 7, 8, 9 |
| Baud rate |
921.4 Kbit/s |
| Chipset |
Asix AX99100 |
| FIFO (First In, First Out) |
256 B |
| Flow control support |
Yes |
| Parity bit |
Even, Mark, No, Odd, Space |
| Flow Control type |
No, RTS/CTS, XON/XOFF |
| Harmonized System (HS) code |
84733020 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Storage temperature (T-T) |
-20 - 80 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Linux operating systems supported |
Yes |
| Server operating systems supported |
Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 |
| Weight & dimensions |
|---|
| Width |
2.64" (67 mm) |
| Depth |
3.86" (98 mm) |
| Height |
5.91" (150 mm) |
| Weight |
1.55 oz (44 g) |
| Package width |
5.59" (142 mm) |
| Package depth |
6.69" (170 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
3.95 oz (112 g) |
| Packaging data |
|---|
| Mounting brackets included |
Yes |
| Manual |
Yes |
| Package width |
5.59" (142 mm) |
| Package depth |
6.69" (170 mm) |
| Package height |
1.18" (30 mm) |
| Package weight |
3.95 oz (112 g) |
| Quantity |
1 |
| Logistics data |
|---|
| Products per master (outer) case |
75 pc(s) |
| Master (outer) case width |
14.2" (360 mm) |
| Master (outer) case length |
27" (685 mm) |
| Master (outer) case height |
12.4" (315 mm) |
| Harmonized System (HS) code |
84733020 |
| Packaging content |
|---|
| Mounting brackets included |
Yes |
| Manual |
Yes |
| Quantity |
1 |
| Other features |
|---|
| Chipset |
Asix AX99100 |
| Flow control support |
Yes |
