USB-C M.2 NVMe SSD Enclosure; Tool-Free & Driverless. USB 3 Type-C, including Thunderbolt and USB4, at 10Gbps. For M.2 NVMe SSDs 2230 to 2280 PCIe Gen 3 and 4. USB C and USB A cables included
Key Features

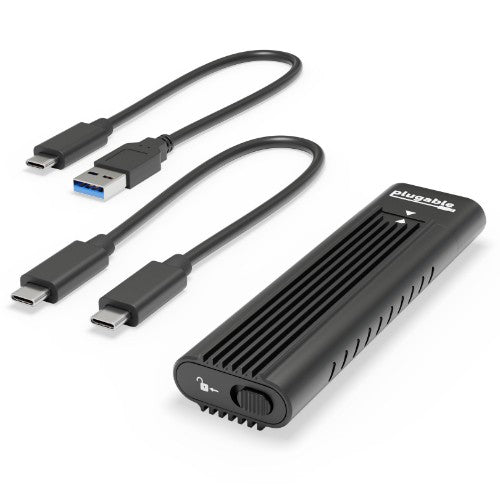

- HIGH SPEED—Connect your NVMe SSD to a USB-C (Gen 2) or Thunderbolt 3 port at USB 3.1 Gen 2 10Gbps speeds. Capable of performance over 800MB/s read/write when using high performance NVMe media. Includes both USB Type-C and USB 3.0 (Type-A) cables
- Tool-Free Design—The world's first tool-less NVMe enclosure allows quick and easy installation of your M.2 NVMe SSDs. Compact and portable, this M.2 enclosure has a sleek black anodized aluminum with extruded fins to aid heat dissipation
- COMPATIBILITY—M.2 NVMe SSDs (SSD not included). USB-C Gen 2 or Thunderbolt 3 hosts up to 10Gbps, USB-C Gen 1 and USB 3.0 systems capable of up to 5Gbps. Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 PCIe devices
- OS Support—SSD to USB adapter offers plug-and-play compatibility with Windows, Mac, and Linux. SSD file system must be supported on host operating system to be accessible
Description

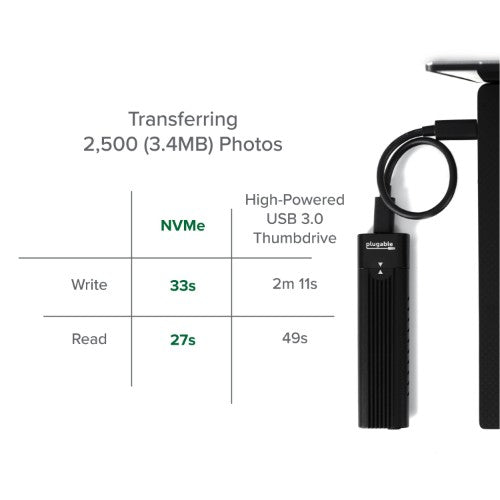

Tool-free design and fastest USB storage speeds!Backup and save files faster than ever before over USB, with read and write speeds of over 900 MB/s, when connected to a USB-C, Thunderbolt 3, or USB (10Gbps) port. Over 40% faster read speeds and over 200% faster write speeds than conventional USB 3.0 (5Gbps) SATA SSD enclosures and USB 3.0 (5Gbps) flash drives, make long wait times a thing of the past.

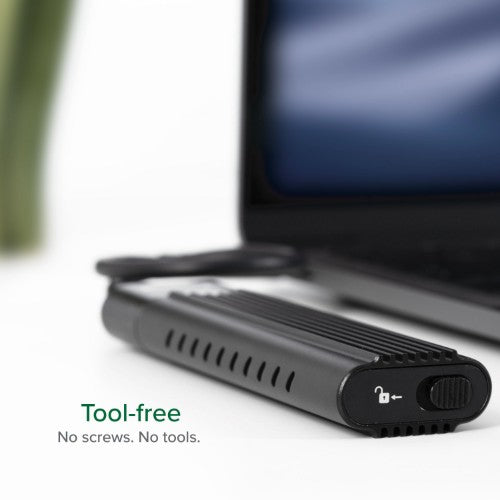

Our USB-C to NVMe SSD enclosure's innovative tool-free design allows the quick installation of an M.2 NVMe SSD in just a couple of seconds. Simply remove the aluminum cover using the locking latch at the back of the enclosure, then insert the SSD and secure with the flexible SSD retention peg, then reinstall the cover. The SSD retention peg can be moved to support multiple M.2 NVMe SSD form factors including: 2280, 2260, 2242, 2230.

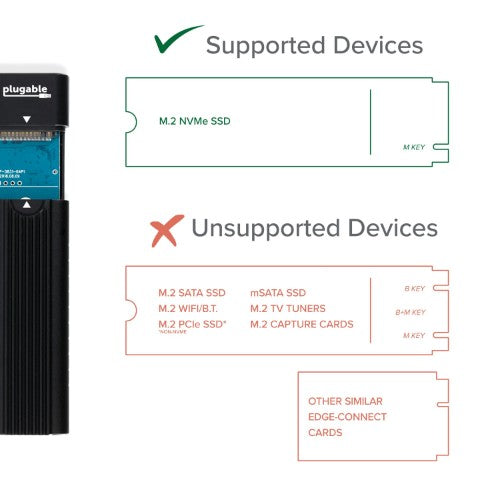

NVMe SSD Compatibility- Compatible with M.2 NVMe SSDs
- Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, or other M.2 non-NVMe devices
- Older NVMe drives with less efficient flash media may not perform as well as newer drives
- New NVMe SSDs are not partitioned and will need to be both partitioned and formatted when first connected to the computer before they will be recognized in Windows Explorer or macOS Finder

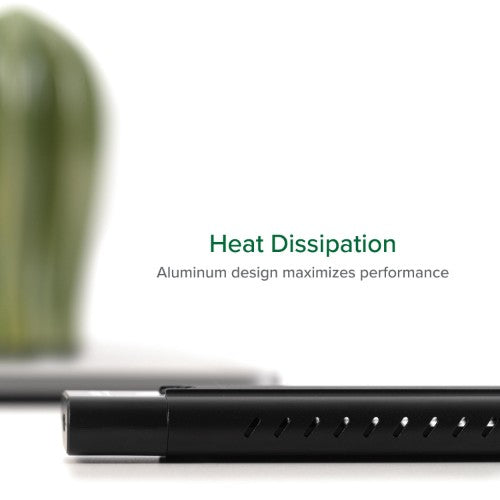

Heat Dissipation and Thermal ThrottlingNVMe SSDs are high performance drives that get hot while reading and writing data. This enclosure features slots for airflow on either side of the SSD as well as extruded aluminum fins for heat dissipation. Even with these features some SSDs may still enter a reduced performance state as they heat up, especially when under heavy load. This is most common with older NVMe SSDs with less efficient flash storage.
Modern NVMe SSDs include built-in thermal protection and will slow down performance if they begin to get too hot. The threshold for this is generally above 60° C and closer to 70° C for many SSDs. Under heavy loads the enclosure can become hot to the touch, in our extended testing in a room temperature environment and allowing for the enclosure to passively dissipate heat, the samples did not reach temperatures above 50° C.
Specifications
| Storage |
|---|
| Number of storage drives supported |
1 |
| Storage drive size |
M.2 |
| Supported storage drive interfaces |
M.2 |
| Supported storage drive heights |
22 mm |
| Supported storage drive lengths |
30,42,60,80 mm |
| NVMe |
Yes |
| Ports & interfaces |
|---|
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| USB connectivity |
Yes |
| USB connector type |
USB Type-C |
| USB connector gender |
Female |
| USB ports quantity |
1 |
| Integrated USB cable |
No |
| Technical details |
|---|
| Material |
Aluminum |
| Data transfer rate |
10 Gbit/s |
| Product colour |
Black |
| Chipset |
Realtek RTL9210 |
| Cable length |
9.84" (0.25 m) |
| USB version |
3.2 Gen 2 (3.1 Gen 2) |
| Design |
|---|
| Product type |
SSD enclosure |
| Built-in display |
No |
| Key lock |
Yes |
| Material |
Aluminum |
| Product colour |
Black |
| Cable length |
9.84" (0.25 m) |
| Performance |
|---|
| Data transfer rate |
10 Gbit/s |
| Chipset |
Realtek RTL9210 |
| Power |
|---|
| Power source type |
USB |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows RT 8.1, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Mac operating systems supported |
Mac OS X 10.4 Tiger, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Linux operating systems supported |
Kernel 2.6.31 |
| Weight & dimensions |
|---|

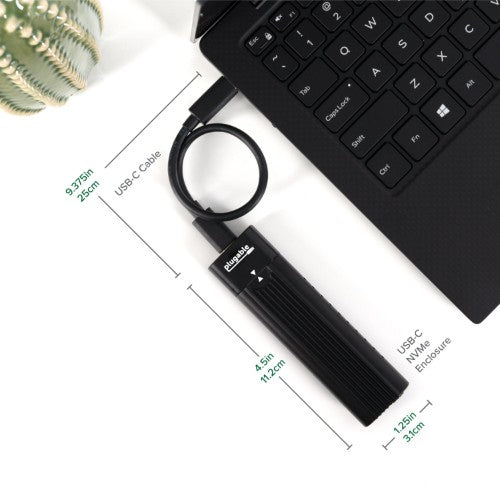

| Width |
4.41" (112 mm) |
| Depth |
1.22" (31 mm) |
| Cable length |
9.84" (0.25 m) |

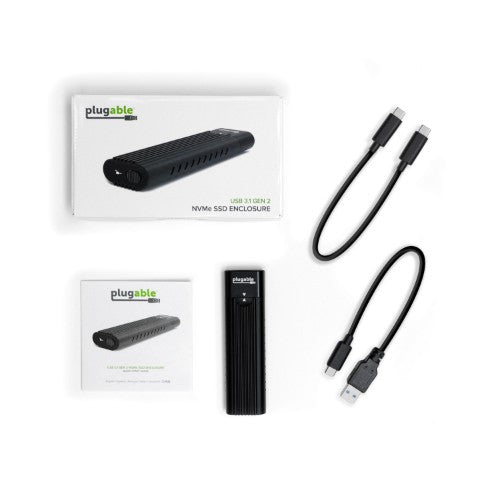

| Packaging content |
|---|
| Quick installation guide |
Yes |
| Package type |
Box |
| Cables included |
USB Type-A to USB Type-C, USB Type-C to USB Type-C |
