8x 10/100/1000 Mb/s RJ-45, PoE+, 16 Gb/s, Rack Mountable
Key Features
- 8 10/100/1000Mbps RJ45 ports
- Equipped with 8 PoE+ ports to power 8 PoE devices at the same time
- Works with IEEE 802.3af or 802.3at compliant up to 30W per port device
- Innovative energy-efficient technology reduces power consumption
- Rack mountable with included rack mount bracket
- Total PoE power budget up to 126W
- Plug and play design, no configuration required
Description

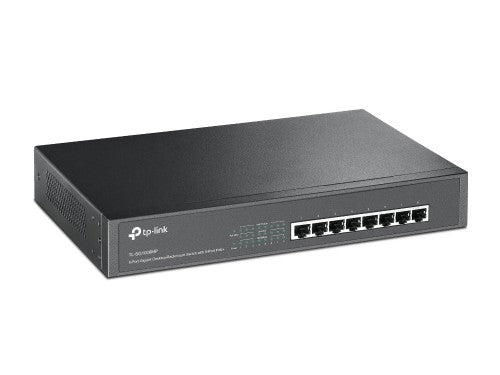

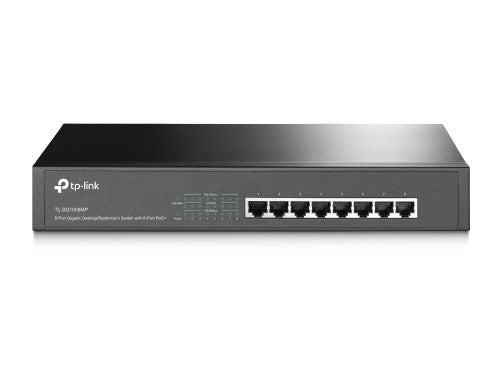

What This Product DoesThe TL-SG1008MP is an 8-Port Gigabit Desktop/Rack mountable Switch with all 8 ports supporting the IEEE 802.3af/at, PoE+ standard. It provides a simple way to expand a wired network by transferring power and data over a single Ethernet Cable. With a total power budget of 126W, up to 30W per port, TL-SG1008MP can power more high-powered devices such as wireless Access Points (APs), IP Cameras or IP Phones. Moreover, with innovative energy-efficient technology, the TL-SG1008MP can save up to 75% of the power consumption, making it an eco-friendly solution for your business network.
How This Product WorksAll 8 ports of TL-SG1008MP support Power over Ethernet (IEEE 802.3af/at, PoE+) standard which can automatically detect and supply power to any IEEE 802.3af/at compliant device(s). The electrical power is transmitted along with data in a single cable, allowing you to expand your network where there is no electrical outlet, and feed the devices such as wireless APs, cameras, and phones.
Prioritized Power SupplyPriority (port 1 > port 2 > port 3 > port 4 > port 5 > port 6 > port 7 > port 8): This function helps protect the system if the power becomes overloaded. For example, if port 1, 2, 4 and 7 are using 30W (maximum power per port is 30W, the system power is 120W in total), and there is an additional device inserted into Port 3 at 25W, the system will cut off the power on Port 7 to protect the switch being overload. This means Port 1, 2 and 4 will use 30W, and Port 3 will use 25W, with no power will be supplied on Port 7 as it has the lowest priority among the ports in use.
Easy To UseTL-SG1008MP is easy to install and use. It requires no configuration or installation. With its Desktop/Rack mountable design, outstanding performance and quality, the TP-Link TL-SG1008MP 8-Port Gigabit Desktop/Rack mountable Switch with 8-Port PoE is a great choice for expanding your home or office network.
Specifications
| Management features |
| Switch type |
Unmanaged |
| Ports & interfaces |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity |
0 |
| Installed SFP+ modules quantity |
0 |
| Network |
| Networking standards |
IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Auto MDI/MDI-X |
Yes |
| 10G support |
No |
| Auto-negotiation |
Yes |
| Data transmission |
| Packet buffer memory |
1.5 MB |
| MAC address table |
4000 entries |
| Switching capacity |
16 Gbit/s |
| Store-and-forward |
Yes |
| Design |
| Product colour |
Black |
| Rack mounting |
Yes |
| Number of fans |
1 fan(s) |
| Certification |
FCC, CE, RoHS |
| Performance |
| Minimum system requirements |
1 |
| Mean time between failures (MTBF) |
1 h |
| Commodity Classification Automated Tracking System (CCATS) |
11 |
| MTBF (PoE) |
1 h |
| Packet buffer memory |
1.5 MB |
| Auto-negotiation |
Yes |
| Harmonized System (HS) code |
85176990 |
| Power |
| Power consumption (max) |
144.4 W |
| Power supply included |
Yes |

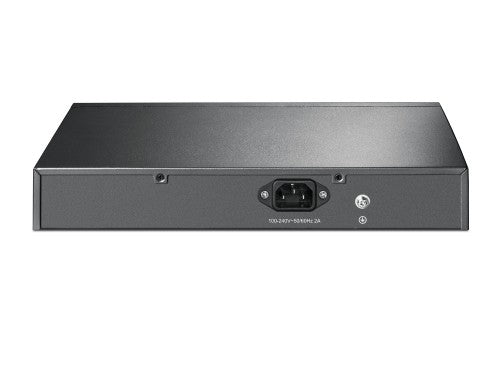

| AC input voltage |
100 - 240 V |
| AC input frequency |
50 - 60 Hz |
| Power consumption (typical) |
140.1 W |
| Power over Ethernet (PoE) |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) |
Yes |
| Operational conditions |
| Storage temperature (T-T) |
-40 - 70 °C |
| Storage relative humidity (H-H) |
5 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Heat dissipation |
492.6 BTU/h |
| Weight & dimensions |
| Width |
11.6" (294 mm) |
| Depth |
7.09" (180 mm) |
| Height |
1.73" (44 mm) |
| Packaging content |
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
AC |
| Technical details |
| Product colour |
Black |
| Mean time between failures (MTBF) |
1 h |
| Rack mounting |
Yes |
| Shipping (inner) case width |
0.0394" (1 mm) |
| Shipping (inner) case net weight |
0.0353 oz (1 g) |
| Shipping (inner) case length |
0.0394" (1 mm) |
| Shipping (inner) case height |
0.0394" (1 mm) |
| Products per shipping (inner) case |
1 pc(s) |
| Layers per pallet (sea) |
1 pc(s) |
| Layers per pallet (air) |
1 pc(s) |
| Master (outer) cases per pallet layer |
1 pc(s) |
| Products per pallet (sea) |
11 pc(s) |
| Products per pallet (air) |
1 pc(s) |
| Pallet gross width |
0.0394" (1 mm) |
| Pallet gross length |
0.0394" (1 mm) |
| Pallet height (sea) |
0.0394" (1 mm) |
| Pallet height (air) |
0.0394" (1 mm) |
| Pallet gross weight (sea) |
0.0353 oz (1 g) |
| Pallet gross weight (air) |
0.0353 oz (1 g) |
| Master (outer) cases per pallet (sea) |
1 pc(s) |
| Master (outer) cases per pallet (air) |
11 pc(s) |
| Shipping (inner) case gross weight |
0.0353 oz (1 g) |
| Memory |
| Packet buffer memory |
1.5 MB |
| Certificates |
| Certification |
FCC, CE, RoHS |
| System requirements |
| Minimum system requirements |
1 |
| Packaging data |
| Rack mount kit |
Yes |
| User guide |
Yes |
| Cables included |
AC |
| Logistics data |
| Harmonized System (HS) code |
85176990 |
