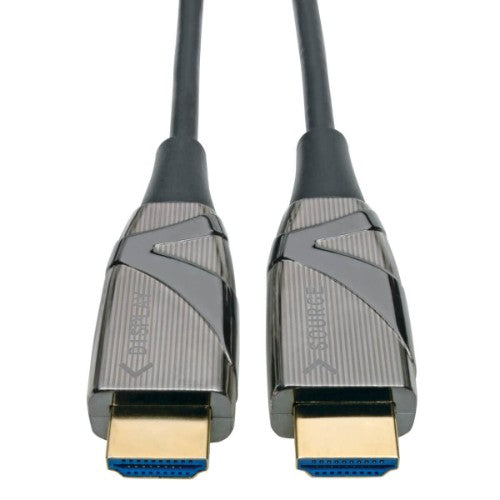

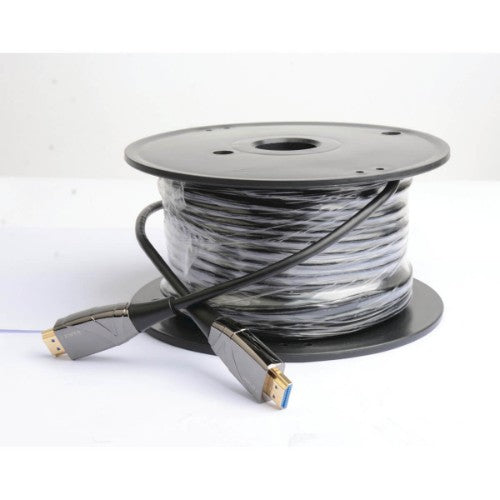

4K HDMI Fiber Active Optical Cable (AOC) - 4K 60 Hz, HDR, 4:4:4 (M/M), 30 m (98 ft.)
Key Features
- Supports UHD resolutions up to 4K (4:4:4) for crystal-clear video
- Carries High Dynamic Range (HDR) signals for rich contrast and expanded color accuracy
- Fiber optic strands transmit audio/video over longer distances than standard copper
- Dispels EMI/RFI line noise that can disrupt A/V signal and affect equipment performance
- Plug-and-play cable draws power from connected device for easy, immediate installation
Description
4K HDMI Cable Connects Home Theater, Gaming & Digital Signage ComponentsThis 4K HDMI cable securely connects HDMI-enabled laptops, tablets, PCs, Blu-ray players, game consoles or satellite/cable TV boxes to HDTVs, HD monitors, projectors or home theater receivers. Because the cable uses optical fiber, it can transmit HDMI signals longer distances with no latency or loss. It also eliminates any EMI/RFI line noise that can interfere with your audio/video signal and disrupt the performance of your connected equipment.
Enjoy the Clarity of 4K HDMI Video with Multi-Channel Audio, HDR and 4:4:4 ColorThis HDMI cable supports Ultra HD video resolutions up to 4K for crystal-clear picture and sound. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. It also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor, as well as 3D, 48-bit Deep Color, DTS-HD Master Audio and Dolby True HD.
Advanced Fiber Cable Is Easier to Install than CopperBecause the fiber cable is slimmer and more flexible than standard copper HDMI cables, the P568-30M-FBR is easier to install around corners and in hard-to-reach spaces behind equipment. It draws power from the connected device, so no external power supply is needed to transmit the HDMI signal across the longer distances unique to fiber optic cabling.
Note: The cable must be installed in the correct direction to function properly, so check the Source and Display labels on the connectors before installation.
Specifications
| Features |
|---|
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| HDMI Ethernet channel |
Yes |
| Product colour |
Black |
| Cable length |
1181.1" (30 m) |
| Connector 1 |
HDMI Type A (Standard) |
| Connector 2 |
HDMI Type A (Standard) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Male |
| Cable material |
Fiber optic |
| Magnetically shielded |
Yes |
| HDMI version |
2.0 |
| Data transfer rate |
18 Gbit/s |
| 3D |
Yes |
| Supported graphics resolutions |
3840 x 2160 |
| HDCP |
Yes |
| Plug and Play |
Yes |
| Quantity per pack |
1 pc(s) |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 45 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
10 - 85% |
| Storage relative humidity (H-H) |
5 - 90% |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging data |
|---|
| Package width |
9.65" (245.1 mm) |
| Package depth |
9.25" (235 mm) |
| Package height |
2.56" (65 mm) |
| Package weight |
2.2 lbs (1 kg) |
| Quantity per pack |
1 pc(s) |
| Weight & dimensions |
|---|
| Package width |
9.65" (245.1 mm) |
| Package depth |
9.25" (235 mm) |
| Package height |
2.56" (65 mm) |
| Package weight |
2.2 lbs (1 kg) |
| Technical details |
|---|
| Country of origin |
Vietnam |
| Compliance certificates |
RoHS |
| Other features |
|---|
| Country of origin |
Vietnam |
| Master (outer) case GTIN (EAN/UPC) |
10037332236842 |
| Logistics data |
|---|
| Country of origin |
Vietnam |
| Master (outer) case gross weight |
24.3 lbs (11 kg) |
| Products per master (outer) case |
10 pc(s) |
| Master (outer) case width |
19.5" (495 mm) |
| Master (outer) case length |
13.4" (340.1 mm) |
| Master (outer) case height |
10.6" (270 mm) |
| Master (outer) case GTIN (EAN/UPC) |
10037332236842 |
| Harmonized System (HS) code |
84733080 |
