Description
Key Features
- 8-port switches
- Managed switches
- Smart managed pro switches
- Gigabit Ethernet switches
- Cloud managed switches
Description

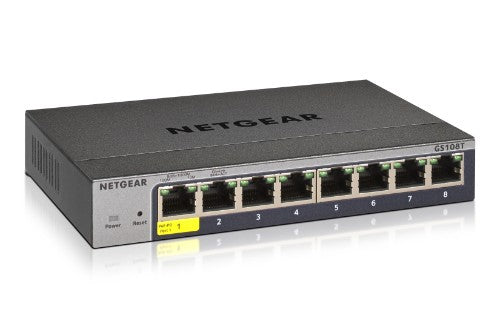

The NETGEAR GS108Tv3 8-Port Gigabit Smart Managed Pro Switch with Cloud Management is fanless, supporting perfectly silent desktop operation or wall mounting. The GS108Tv3 Smart Managed Pro Switch offers an easy-to-use, Web browser-based management GUI with configurable L2 network features like VLANs and QoS for wireless converged networks and mobility. This switch also comes with NETGEAR Insight Cloud management activation (free for the first two devices) for anytime remote management and monitoring through an intuitive app or Cloud Portal. Advanced features such as IPv4 Layer 2+ static routing,IPv6 management, ACL, DiffServ QoS, LACP link aggregation and Spanning Tree will satisfy even the most advanced small business networks. The GS108Tv3 features Energy Efficient Ethernet (IEEE 802.3az) for maximum power savings and is backed by NETGEAR ProSAFE Limited Lifetime Warranty and 24/7 support including lifetime chat.Specifications
| Management features | |
|---|---|
| Multicast support | Yes |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Ports & interfaces | |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

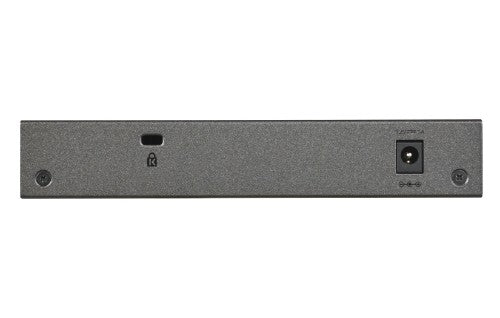

| Power connector | DC-in jack |
| Network | |
| IGMP snooping | Yes |
| IPv4 multicast entries | 32 |
| Access Control List (ACL) IPv6 entries | 100 |
| MAC address auto-learning supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-TX |
| Networking standards | IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x |
| Full duplex | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Number of VLANs | 64 |
| Link aggregation | Yes |
| Flow control support | Yes |
| Broadcast storm control | Yes |
| Virtual LAN features | |
| Number of VLANs | 64 |
| Data transmission | |
| Number of multicast groups filtered | 256 |
| Number of VLANs | 64 |
| Packet buffer memory | 0.5 MB |
| MAC address table | 8000 entries |
| Switching capacity | 16 Gbit/s |
| Store-and-forward | Yes |
| Jumbo frames support | Yes |
| IPv4 & IPv6 features | |
| Access Control List (ACL) IPv6 entries | 100 |
| Performance | |
| Packet buffer memory | 0.5 MB |
| Stackable | No |
| Processor frequency | 500 MHz |
| Memory type | RAM |
| Mean time between failures (MTBF) | 2388657 h |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Firmware upgradeable | Yes |
| Power | |
| Power connector | DC-in jack |
| Power consumption (max) | 5.5 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.25 A |
| DC input voltage | 54 V |
| Technical details | |
| Product colour | Gray |
| Stackable | No |
| Processor frequency | 500 MHz |
| Mean time between failures (MTBF) | 2388657 h |
| Firmware upgradeable | Yes |
| Security | |
| Security algorithms | 802.1x RADIUS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Access Control List (ACL) IPv6 entries | 100 |
| DHCP features | DHCP client |
| Multicast features | |
| Number of multicast groups filtered | 256 |
| Multicast support | Yes |
| IPv4 multicast entries | 32 |
| Protocols | |
| Management protocols | SNMP |
| Switching protocols | SNMP |
| Data link protocols | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Supported network protocols | HTTP, HTTPS |
| Certificates | |
| Certification | CE, FCC, VCCI Class B, C-Tick |
| Memory | |
| Packet buffer memory | 0.5 MB |
| Memory type | RAM |
| Internal memory | 128 MB |
| Flash memory | 32 MB |
| Design | |
| Product colour | Gray |
| Stackable | No |
| LED indicators | Activity, LAN, Link, PoE, Power, Speed |
| Certification | CE, FCC, VCCI Class B, C-Tick |
| Indication | |
| LED indicators | Activity, LAN, Link, PoE, Power, Speed |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | No |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude | 0 - 118110.2" (0 - 3000 m) |
| Heat dissipation | 18.66 BTU/h |
| Weight & dimensions | |
| Width | 6.22" (158 mm) |
| Depth | 3.98" (101 mm) |
| Height | 1.06" (27 mm) |
| Weight | 94.8 lbs (43 kg) |
| Packaging data | |
| Package type | Box |
| Package width | 8.9" (226 mm) |
| Package depth | 10.6" (270 mm) |
| Package height | 2.52" (64 mm) |
| Package weight | 26.5 oz (750 g) |
| Manual | Yes |
| Logistics data | |
| Master (outer) case width | 8.43" (214 mm) |
| Master (outer) case length | 18.7" (474 mm) |
| Master (outer) case height | 12.3" (312 mm) |
| Master (outer) case gross weight | 11.6 lbs (5.28 kg) |
| Products per master (outer) case | 6 pc(s) |
| Packaging content | |
| Manual | Yes |
