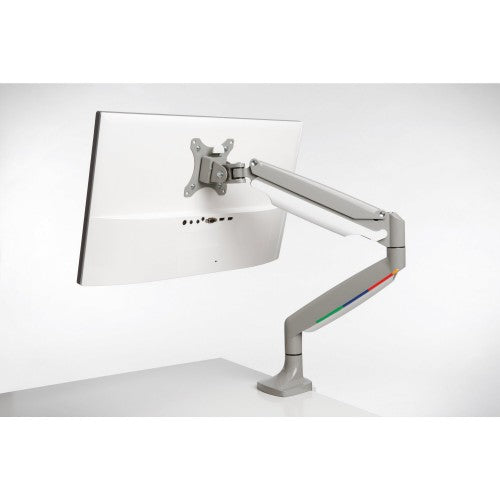

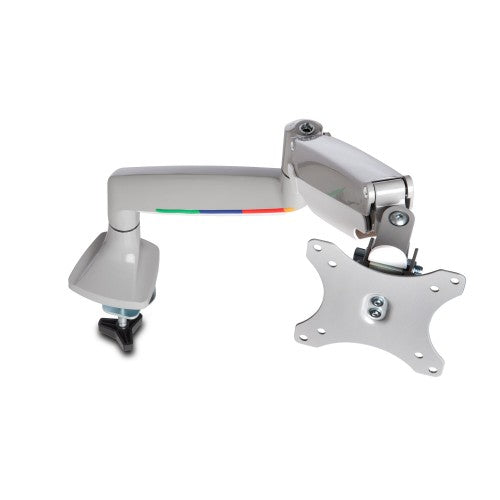

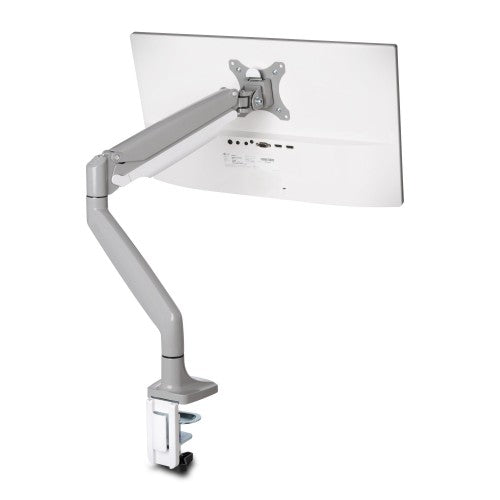

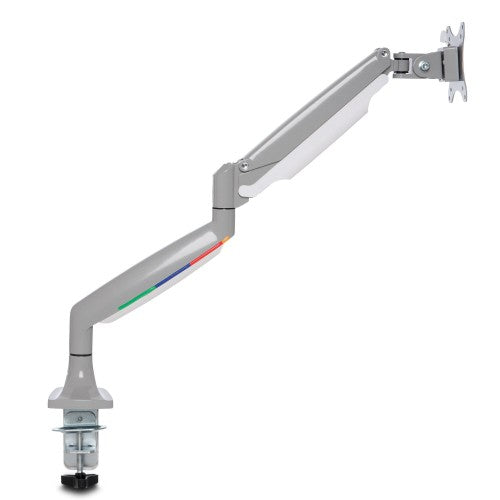

Kensington SmartFit® One-Touch Height Adjustable Single Monitor Arm, Clamp/Bolt-through, 19.8 lbs (9 kg), 13", 32", 3.94 x 3.94" (100 x 100 mm), Gray, Silver
Key Features
- SmartFit™ supports proper ergonomic eye-level viewing angles, as well as improved neck and shoulder alignment.
- One-Touch Adjustable Arm with Built-In Gas Spring simplifies height adjustment (170 - 505mm, 6.7 - 19.9”), provides 180° swivel and monitor rotation, ±90° tilt adjustment and allows monitor to smoothly move up, down, forward and back for full motion articulation.
- Stability focused design supports 13”-34” flat or curved monitors weighing up to 9kg (19.8lbs) and ensures monitor is stable and steady in any position

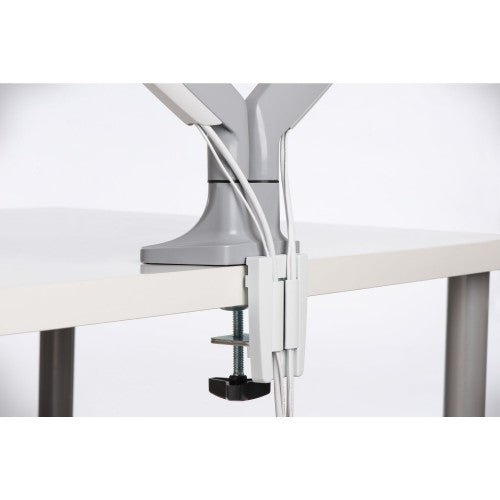

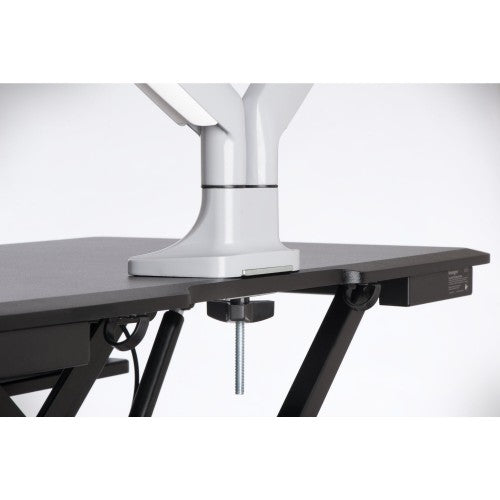

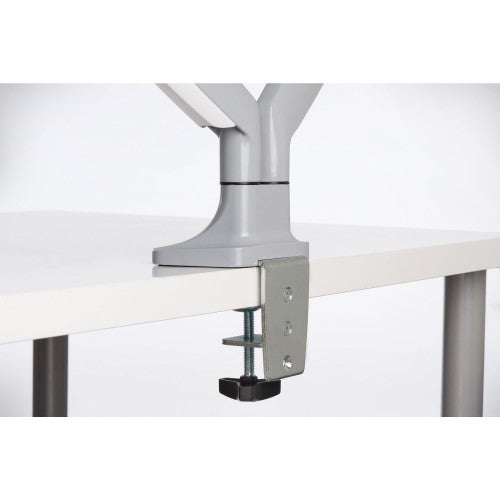

- Easy to install with included quick release detachable VESA® plate (75mm or 100mm), c-clamp (desktop thickness range: 10-85mm and grommet (diameter range: 10.5-50mm) installation options and included tool kit to simplify removal
- Cable management system keeps monitor cables organised for a tidier workspace
- Kensington durability meets ANSI/BIFMA performance and safety standards
Reasons To Buy
SmartFit™ - Comfort Made Easy
Supports proper ergonomic eye-level viewing angles using data-driven research and a colour-coded fitting chart to support quick and intuitive height-setting.
One-touch adjustable arm with built-in gas spring
Full motion articulation allows you to easily customise the position of the monitor in your workstation. Move monitor up, down, forward and backwards with 170-505mm height adjustment, 180° swivel and rotation and +/- 90° tilt* adjustment.
Stability focused design
Supports 13”–34” flat or curved monitor weighing up to 9kg (19.8lbs) and ensures monitor is stable and steady in any position.
Easy to install
Includes quick release detachable VESA® plate (75mm or 100mm), c-clamp (desktop thickness range: 10-85mm and grommet (diameter range: 10.5-50mm) installation options, and included tool kit to simplify*removal.
Cable management system
Keeps monitor cables organised for a tidier workspace.
Kensington durability
Tested to meet ANSI/BIFMA performance and safety standards.
Description
Kensington SmartFit® One-Touch Height Adjustable Single Monitor Arm. Mounting: Clamp/Bolt-through, Maximum weight capacity: 19.8 lbs (9 kg), Minimum screen size: 13", Maximum screen size: 32", Minimum VESA mount: 2.95 x 2.95" (75 x 75 mm), Maximum VESA mount: 3.94 x 3.94" (100 x 100 mm). Height adjustment, Swivel angle range: -180 - 180°, Tilt angle range: -90 - 90°. Product color: Gray, Silver
Specifications
| Mounting |
|---|
| Desk thickness (min) |
0.394" (1 cm) |
| Desk thickness (max) |
3.35" (8.5 cm) |
| Minimum screen size |
13" |
| Number of displays supported |
1 |
| Mounting type |
Desk |
| Minimum VESA mount |
2.95 x 2.95" (75 x 75 mm) |
| Maximum VESA mount |
3.94 x 3.94" (100 x 100 mm) |
| Mounting |
Clamp/Bolt-through |
| Maximum weight capacity |
19.8 lbs (9 kg) |
| Maximum screen size |
32" |
| Extension arm (max) |
20.7" (52.5 cm) |
| Ergonomics |
|---|
| Cable management |
Yes |
| Height adjustment |
Yes |
| Height adjustment range |
6.69 - 19.9" (170 - 505 mm) |
| Swivel angle range |
-180 - 180° |
| Tilt angle range |
-90 - 90° |
| Pan range |
-90 - 90° |
| Tilt adjustment |
Yes |
| Design |
|---|
| Product colour |
Gray, Silver |
| Housing material |
Aluminum, Plastic, Steel |
| Technical details |
|---|
| Mounting type |
Desk |
| Product colour |
Gray, Silver |
| Cable management |
Yes |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Width |
23.2" (590 mm) |
| Depth |
4.53" (115 mm) |
| Height |
26.2" (665 mm) |
| Weight |
7.36 lbs (3.34 kg) |
| Package width |
19.1" (485.9 mm) |
| Package depth |
12.4" (315 mm) |
| Package height |
4.5" (114.3 mm) |
| Package type |
Box |
| Package weight |
9.3 lbs (4.22 kg) |
| Packaging data |
|---|
| Package width |
19.1" (485.9 mm) |
| Package depth |
12.4" (315 mm) |
| Package height |
4.5" (114.3 mm) |
| Package type |
Box |
| Package weight |
9.3 lbs (4.22 kg) |
| Other features |
|---|
| Compliance certificates |
RoHS |
| Mounting type |
Desk |
| Mounting |
Clamp/Bolt-through |
| Logistics data |
|---|
| Master (outer) case width |
13.1" (333.5 mm) |
| Master (outer) case length |
20.3" (514.4 mm) |
| Master (outer) case height |
18.9" (479.6 mm) |
| Master (outer) case gross weight |
39.2 lbs (17.8 kg) |
| Products per master (outer) case |
4 pc(s) |
