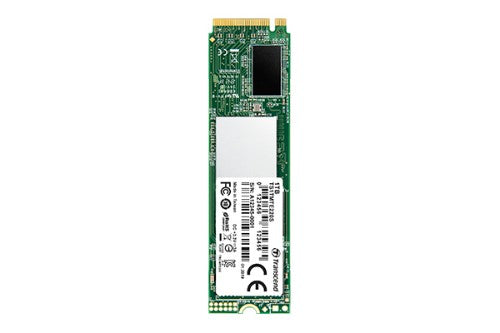

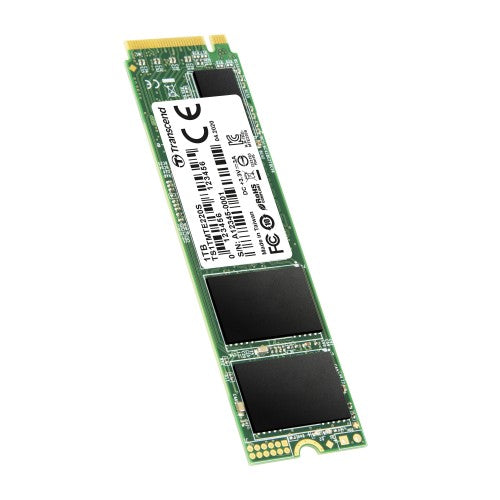

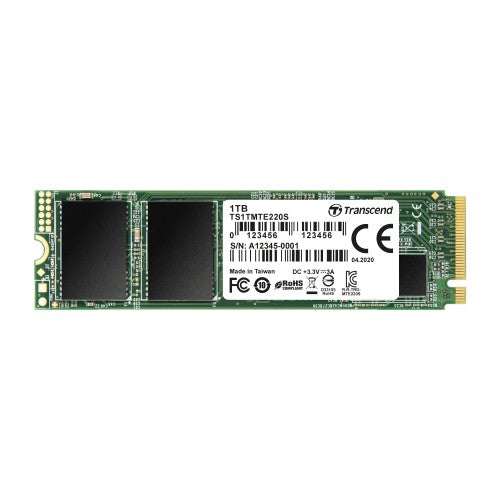

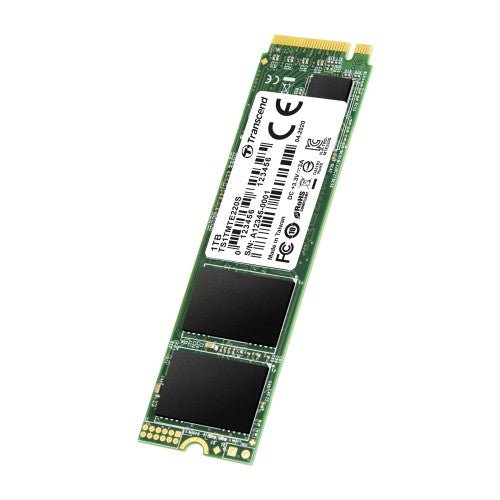

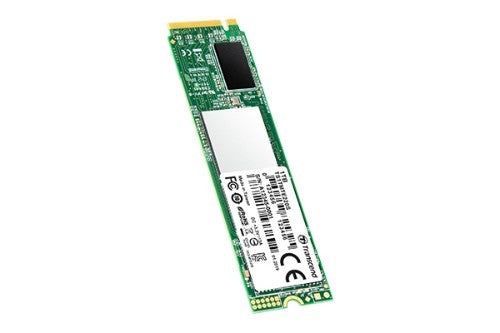

Transcend MTE220S, 1TB, NVMe PCIe Gen3 x4, 3400/1900 MB/s
Key Features
- Adopts PCIe Gen3 x4 interface and NVMe 1.3 standard
- Up to 3,500 MB/s read; 2700 MB/s write
- 3D NAND flash memory and DDR3 DRAM cache
- Engineered with LDPC (Low-Density Parity Check) coding to ensure data integrity; built-in SLC caching technology for exceptional transfer speeds; an 8-channel controller for ultra high data throughout
- Engineered dynamic thermal throttling mechanism
Description
Transcend's PCIe SSD 220S aims at high-end applications, such as digital audio/video production, gaming, and enterprise use, which require constant processing heavy workloads with no system lags or slowdowns of any kind. Utilizing the PCI Express® Gen3 x4 interface supported by the latest NVMe™ standard, 3D NAND flash memory, an 8-channel controller, and a DRAM cache, the PCIe SSD 220S offers supreme transfer speeds that override others.
Supreme transfer speedsTranscend's PCIe SSD 220S follows NVMe 1.3 and utilizes the PCIe™ Gen3 x4 interface, meaning four lanes are used for transmitting and receiving data simultaneously. Its 8-channel controller supports ultra high data throughput, resulting in compelling performance of up to 3,500MB/s read and 2,700MB/s write.
Note: Performance is based on CrystalDiskMark v5.0.2.
Understanding the PCIe interfacePCIe (or PCI Express®) is a much faster interface than SATA (or Serial ATA) for connecting a host computer to solid-state storage devices over one or more lanes consisting of one transmit and one receive serial interface in each lane, meaning it can better fulfill new performance requirements.
Understanding the NVMe standardNVMe (or NVM Express®) is a host controller interface standard designed to address the needs of enterprise and client applications that utilize PCI Express-based solid-state storage. NVMe calls for better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency.
3D expansion to break through limitsUnlike planar NAND memory, 3D NAND flash features memory cells stacked vertically in multiple layers. 3D NAND overcomes density limitations of 2D planar NAND, and delivers a higher level of performance and endurance.
Better endurance, higher reliabilityTranscend's PCIe SSD 220S is engineered with LDPC (Low-Density Parity Check) coding, a powerful ECC algorithm, to keep data secure. Manufactured with high-quality 3D NAND flash chips, and engineered dynamic thermal throttling mechanism, the PCIe SSD 220S guarantees superior endurance and stability for high-end applications.
SSD Scope softwareTranscend SSD Scope is advanced, user-friendly software that makes it easy to ensure your Transcend SSD remains healthy, and continues to run fast and error-free by determining the condition and optimizing the performance of your drive.
Guaranteed qualityTo ensure the utmost level of quality, Transcend SSDs undergo rigorous testing at all stages of production, including tests for vibration, temperature and humidity, speed, and functionality.
Specifications
| Hard drive |
|---|
| PCI Express interface data lanes |
x4 |
| SSD capacity |
1 TB |
| Memory type |
3D NAND |
| Performance |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| Interface |
PCI Express 3.0 |
| Component for |
PC/Laptop |
| NVMe |
Yes |
| NVMe version |
1.3 |
| TBW rating |
2200 |
| PCI Express interface data lanes |
x4 |
| SSD capacity |
1 TB |
| S.M.A.R.T. support |
Yes |
| Read speed |
3500 MB/s |
| Write speed |
2800 MB/s |
| Memory type |
3D NAND |
| Random write (4KB) |
340000 IOPS |
| Random read (4KB) |
300000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Hardware encryption |
No |
| Data transmission |
|---|
| Read speed |
3500 MB/s |
| Write speed |
2800 MB/s |
| Random write (4KB) |
340000 IOPS |
| Random read (4KB) |
300000 IOPS |
| Endurance |
|---|
| Mean time between failures (MTBF) |
2000000 h |
| Features |
|---|
| Interface |
PCI Express 3.0 |
| Component for |
PC/Laptop |
| NVMe |
Yes |
| NVMe version |
1.3 |
| TBW rating |
2200 |
| PCI Express interface data lanes |
x4 |
| SSD capacity |
1 TB |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| S.M.A.R.T. support |
Yes |
| Read speed |
3500 MB/s |
| Write speed |
2800 MB/s |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| Memory type |
3D NAND |
| Random write (4KB) |
340000 IOPS |
| Random read (4KB) |
300000 IOPS |
| Mean time between failures (MTBF) |
2000000 h |
| Hardware encryption |
No |
| Certification |
CE/FCC/BSMI/KC/RCM |
| SSD form factor |
M.2 |
| Harmonized System (HS) code |
84717070 |
| Power |
|---|
| Operating voltage |
3.3 V |
| Certificates |
|---|
| Certification |
CE/FCC/BSMI/KC/RCM |
| Design |
|---|
| Component for |
PC/Laptop |
| Certification |
CE/FCC/BSMI/KC/RCM |
| SSD form factor |
M.2 |
| Weight & dimensions |
|---|
| Width |
0.866" (22 mm) |
| Weight |
0.282 oz (8 g) |
| Height |
3.15" (80 mm) |
| Depth |
0.141" (3.58 mm) |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Technical details |
|---|
| Interface |
PCI Express 3.0 |
| S.M.A.R.T. support |
Yes |
| Operating temperature (T-T) |
0 - 70 °C |
| Hardware encryption |
No |
| SSD form factor |
M.2 |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84717070 |
