RJ-45, 200 g, 3.6 W, 7 - 12 VDC
Description

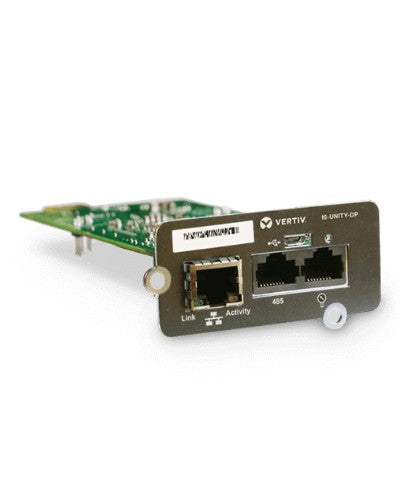

Liebert IntelliSlot Unity Communications Interface Card provides Trellis, LIFE Services and Liebert Nform enablement as well as Web access, environmental sensor data, and third-party customer protocols for Vertiv equipment. The cards can monitor and manage a wide range of operating parameters, alarms and notifications.
Provides Web access, environmental sensor data, alarm notifications, and third-party interface protocols for Vertiv equipment, and integrates with Vertiv LIFE Services, Trellis, and Liebert Nform.
-SNMP
-WEB Browser
-Email Notifications
-SMS Notifications (require SMS gateway)
-VertivTM LIFETM Services
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| Interface |
Ethernet |
| Host interface |
RJ-45 |
| Connectivity technology |
Wired |
| Bandwidth |
|---|
| Maximum data transfer rate |
100 Mbit/s |
| Network |
|---|
| Ethernet LAN |
Yes |
| Cabling technology |
10/100BaseT(X) |
| Maximum data transfer rate |
100 Mbit/s |
| Design |
|---|
| Internal |
Yes |
| Power |
|---|
| Output voltage |
7-12 V |
| Power consumption (typical) |
3.6 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Weight & dimensions |
|---|
| Width |
2.97" (75.5 mm) |
| Depth |
0.591" (15 mm) |
| Height |
1.46" (37 mm) |
| Weight |
7.05 oz (200 g) |
| Package weight |
21.2 oz (600 g) |
| Packaging data |
|---|
| Package weight |
21.2 oz (600 g) |
| Technical details |
|---|
| Harmonized System (HS) code |
85176990 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Harmonized System (HS) code |
85176990 |
