3000VA, 2700W, PF1, 100-125 V, NEMA, USB, SNMP, 12V/9Ah, 2U
Key Features
- Double-Conversion Topology
- Sine Wave Output
- Maintenance Bypass Switch
- RMCARD205
- LCD Control Panel
- Fast Charge Technology
- Smart Battery Management (SBM)
- Hot-Swappable Batteries
- Tamper-Proof Input Circuit Breaker
- Generator Compatible
Description
Product OverviewThe CyberPower Smart App Online OL8KRTMB is a 6U rack/tower UPS featuring double-conversion topology for seamless power protection, an intuitive maintenance bypass switch design, and a pre-installed RMCARD205. Ensure maximum efficiency and capacity output with a Power Factor rating (PF) of 1. The energy-saving GreenPower UPS™ ECO Mode enables up to 96% efficiency while reducing power consumption and thermal dissipation. Smart battery management charging technology increases battery life up to 50% and replenishes battery charge from 0-90% in five hours.
The OL8KRTMB enhanced LCD control panel functionality provides the ability to change the IP address, view UPS load energy consumptions, and select UPS diagnostic tests.
Variable 4-speed fans provide automatic thermal management, based on power load, to reduce noise. A tamper-proof input circuit breaker ensures power is not turned off unexpectedly during service or maintenance. The OL8KRTMB simplifies installation with a quick start guide, user-friendly lifting straps, and an enhanced hanging rack mount rail system.
The optional BP240VL3U01 Extended Battery Module expands runtime and speeds restoration of full backup power. The OL8KRTMB comes with a three-year warranty (including batteries) and a $300,000 Connected Equipment Guarantee.
Double-Conversion TopologyProvides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. Never a need to switch to battery as DC power operates 100% of the time. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
Sine Wave OutputKeeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.
Maintenance Bypass SwitchService or replace the UPS easily without powering down the connected equipment. The patented interlock bracket utilizes a color-coded security screw to simplify and reduce time for maintenance or module replacement.
PowerPanel® Business Edition SoftwareProvides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.
RMCARD205Enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.
LCD Control PanelDisplays UPS status data and configures operating settings from up to 10 ft. away (DB26 cable not included). The LCD control panel displays and allows configuration of IP address settings when an RMCARD205 is installed.
Multiple Language OptionsThe LCD Control Panel can be configured in English, Spanish, French, and German for ease of use.
Extended Battery Module (EBM)Extends runtime by adding up to 10 EBMs.
Fast Charge TechnologyAllows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores charge from 0-90% within five hours regardless of the number of EBMs.
Smart Battery Management (SBM)Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.
GreenPower UPS™ ECO ModeImproves UPS efficiency up to 96% reducing electrical and cooling costs.
Hot-Swappable BatteriesKeeps equipment running by eliminating downtime during UPS power maintenance.
Upgradeable UPS FirmwareKeeps equipment running by eliminating downtime during UPS power maintenance.
Hanging Rack Mount RailEnsures easy installation and slides out safely with a safety catch.
Tamper-Proof Input Circuit BreakerEnsures power is turned off using a tool to eliminate the risk of accidental powering off when not desired during service or maintenance.
Critical & Non-Critical Load BanksMaximizes the output of the UPS by scheduling non-critical loads to shut off allowing additional runtime for critical load outlets.
Emergency Power Off (EPO)Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.
Generator CompatibleEnsures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.
Converter ModeProvides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.
USB & Serial ConnectivityEnables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.
EMI/RFI FiltersPrevents electromagnetic and radio frequency interference to ensure clean power for connected equipment.
Data-Line Surge ProtectionPrevents power surges traveling through telephone and Ethernet lines from causing damage to your equipment.
Audible AlarmsIdentifies when the UPS is running on battery power, overloaded, or has a low battery.
LED Status LightsIndicates Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery.

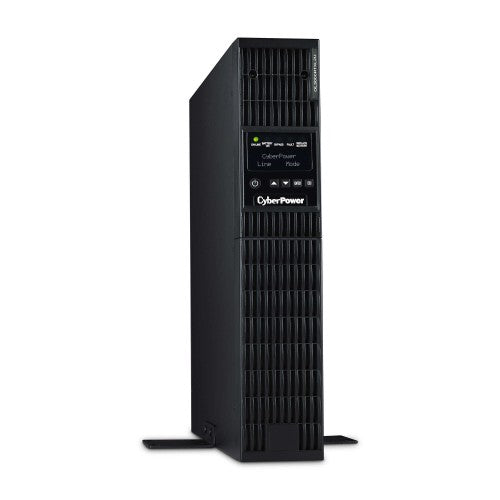

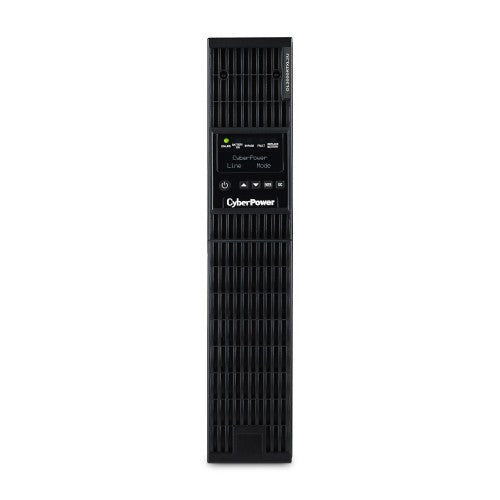

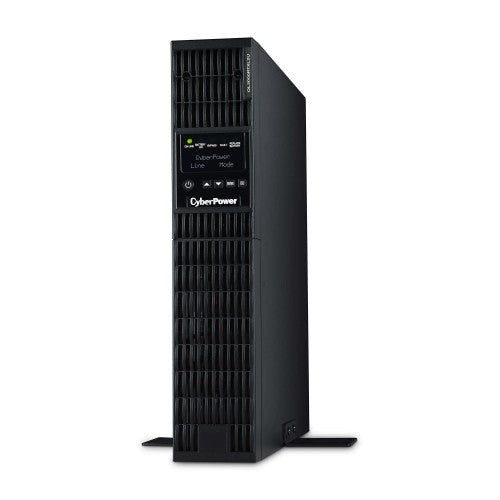

Rack/Tower VersatilityAllows for horizontal rack or vertical tower installation.
Connected Equipment GuaranteeAffirms we will replace properly connected equipment if it is damaged by a power surge.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power factor |
0.9 |
| Input power factor |
0.99 |
| Output power |
2700 W |
| Input operation voltage (min) |
60 V |
| Input operation voltage (max) |
150 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Power factor |
0.9 |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Crest factor |
3:1 |
| Output power capacity |
3 kVA |
| Input frequency |
40 - 70 Hz |
| Performance |
|---|
| Audible alarm modes |
Fault, Low battery alarm |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Pure sine |
| LED indicators |
Battery replacement, Fault, Power |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Power protection features |
Overload, Short circuit |
| Noise level |
65 dB |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| Audible alarm modes |
Fault, Low battery alarm |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Pure sine |
| Output power factor |
0.9 |
| Input power factor |
0.99 |
| Output power |
2700 W |
| Input operation voltage (min) |
60 V |
| Input operation voltage (max) |
150 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| EMI/RFI noise filtering |
Yes |
| Surge protection |
Yes |
| Power protection features |
Overload, Short circuit |
| Power factor |
0.9 |
| Output voltage Total Harmonic Distortion (THD) |
5% |
| Noise level |
65 dB |
| Crest factor |
3:1 |
| Audible alarm(s) |
Yes |
| Output power capacity |
3 kVA |
| Input frequency |
40 - 70 Hz |
| Ports & interfaces |
|---|

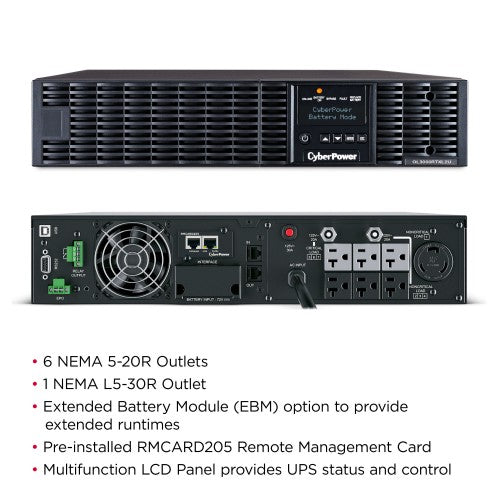

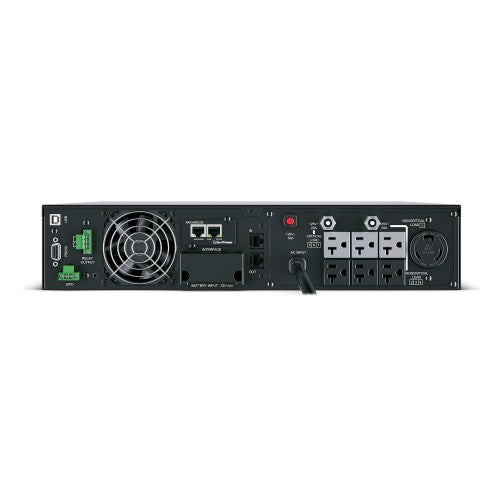

| AC outlets quantity |
7 AC outlet(s) |
| AC outlet types |
NEMA 5–20R, NEMA L5-30R |
| Power plug |
NEMA 5-20R |
| Battery |
|---|
| Number of batteries supported |
12 |
| Battery voltage |
12 V |
| Battery capacity |
9 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
4 h |
| Hot-swap battery |
Yes |
| Cold start |
Yes |
| Replacement battery cartridge |
RB1290X6A |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| LED indicators |
Battery replacement, Fault, Power |
| Product colour |
Black |
| Housing material |
Steel |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 45 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Package width |
23.6" (599.4 mm) |
| Package depth |
43.3" (1099.8 mm) |
| Package height |
8.5" (215.9 mm) |
| Weight |
68.1 lbs (30.9 kg) |
| Width |
17" (431 mm) |
| Package weight |
87.1 lbs (39.5 kg) |
| Height |
3.39" (86 mm) |
| Depth |
28.3" (718 mm) |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| Manual |
Yes |
| Cables included |
Phone (RJ-11), RJ-45, USB cable |
| Package width |
23.6" (599.4 mm) |
| Package depth |
43.3" (1099.8 mm) |
| Package height |
8.5" (215.9 mm) |
| Package weight |
87.1 lbs (39.5 kg) |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Manual |
Yes |
| Cables included |
Phone (RJ-11), RJ-45, USB cable |
