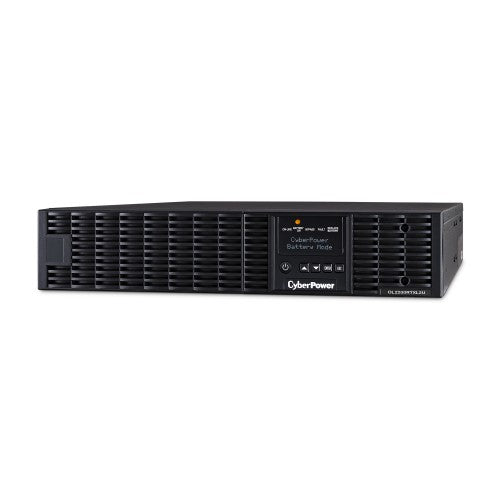

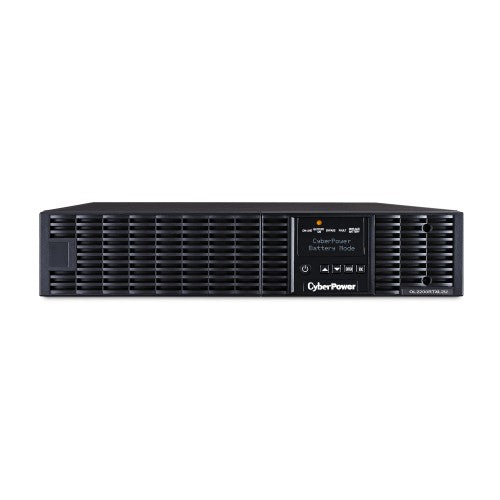

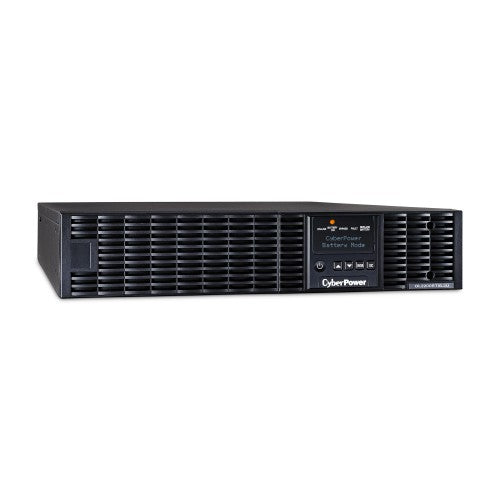

CyberPower OL2200RTXL2UN uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1800 W 7 AC outlet(s)

2200 VA / 1800 W, (PF): 0.82, Double-Conversion, Sine Wave, 100, 110, 115, 120, 125 V ±2% (configurable), NEMA 5-20P, 10 ft. cord, 6 × NEMA 5-20R, 1 × L5-20R, USB, Serial, RMCARD205, Relay, EPO

Description

The CyberPower OL2200RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL2200RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower’s commitment to high quality.

Double-Conversion Topology
Provides consistent, clean, and nearly perfect power, regardless of the condition of the incoming power. With the conversion to DC power, the UPS has a zero millisecond transfer time to battery power when utility power is lost. Designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.

Sine Wave Output
Keeps sensitive equipment with Active PFC working by preventing unnecessary shutdowns caused by gaps from simulated sine waves.

PowerPanel® Business Edition Software
Provides tools for easy remote monitoring and managing of the UPS and automates shutdown of multiple devices when needed.

RMCARD205
Is a full-featured network management card. It enables remote management of up to 50 clients via a standard web browser, command line interface (CLI), or network management system (NMS) connection.

LCD Control Panel
Displays UPS status data and configures operating settings from up to 10 ft. away (DB26 cable not included). The LCD control panel displays and allows configuration of IP address settings when an RMCARD205 is installed.

Extended Battery Module (EBM)
Extends runtime by adding up to 10 EBMs.

Fast Charge Technology
Allows UPS batteries to return to full capacity more rapidly by utilizing a built-in charger. Restores a complete charge within 4 hours regardless of the number of EBMs.

Smart Battery Management (SBM)
Improves and extends the functional life of a UPS battery and reduces excessive heat during work cycles by using a three-cycle charging process.

GreenPower UPS™ ECO Mode
Improves UPS efficiency up to 95% reducing electrical and cooling costs.

Hot-Swappable Batteries
Keep equipment running by eliminating downtime during UPS battery replacement.

Upgradeable UPS firmware
Manages the unit’s features and functions.

Critical & Non-Critical Load Banks
Maximize the output of the UPS by setting non-critical loads to shut off allowing additional runtime for critical load outlets.

Emergency Power Off (EPO)
Allows the UPS to be shut off in the event of an emergency, when the EPO port is connected to an EPO switch.

Generator Compatible
Ensures a stable sine wave output (free of harmonics and distortion) without switching to battery mode when running on generator input power.

Converter Mode
Provides the flexibility to set the output frequency, regardless of the input frequency, to match connected equipment by selecting 50Hz or 60Hz output on the LCD control panel.

USB & Serial Connectivity
Enables full integration with built-in power management and auto shutdown features on Windows, Linux, and VMware systems through a HID-compliant USB port and Serial port.

EMI/RFI Filters
Prevent electromagnetic and radio frequency interference to ensure clean power for connected equipment.

Data Line Surge Protection
Prevents power surges that traveling through telephone and Ethernet lines from causing damage to your equipment

Audible Alarms
Identify when the model is running on battery power, overloaded, or has a low battery.

Resettable Circuit Breaker
Interrupts an electric current in a circuit when the current becomes too high.

LED Status Lights
Indicate Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery.

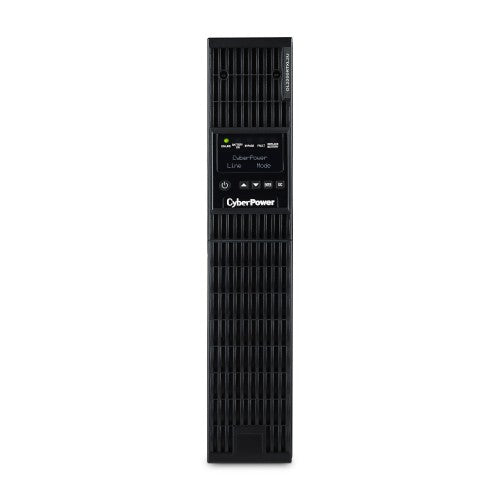

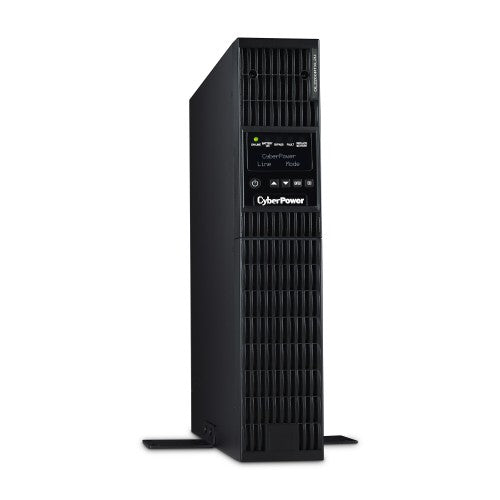

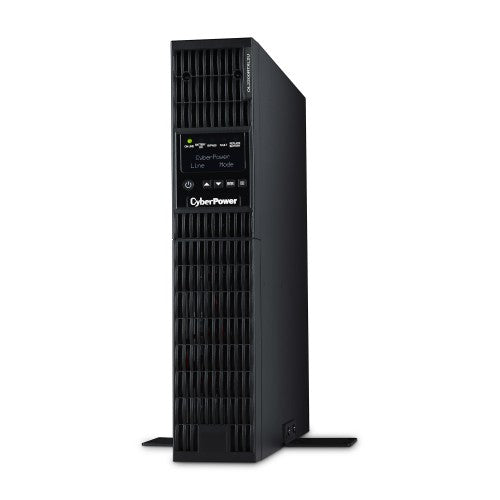

Rack/Tower Versatility
Allows for horizontal rack or vertical tower installation.

Specifications

Power
Output frequency	50/60 Hz
Output voltage regulation	2%
Output frequency regulation	0.25 Hz
Output power factor	0.82
Input power factor	0.99
Output power	1800 W
Input operation voltage (min)	60 V
Input operation voltage (max)	150 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	1335 J
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	3%
Crest factor	3:1
Output power capacity	2.2 kVA
Efficiency (ECO mode)	95%
ECO mode	Yes
Input frequency	40/70 Hz

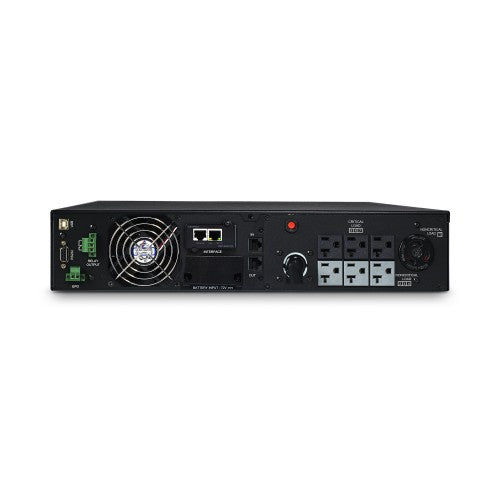

Ports & interfaces
Cable length	118.1" (3 m)
Emergency Power Off (EPO) connector	Yes
USB port	Yes
Serial interface	Yes
Serial interface type	RJ-45
AC outlets quantity	7 AC outlet(s)
AC outlet types	NEMA 5–20R, NEMA L5-20R
Power plug	NEMA 5-20P
Serial ports quantity	1
Modem (RJ-11) ports	1
Ethernet LAN (RJ-45) ports	1
Performance
Audible alarm modes	Fault, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Automatic Voltage Regulation (AVR)	Yes
LED indicators	Yes
EMI/RFI noise filtering	Yes
Surge protection	Yes
Noise level	55 dB
Audible alarm(s)	Yes
Features
Output frequency	50/60 Hz
Audible alarm modes	Fault, Low battery alarm, Overload alarm
UPS topology	Double-conversion (Online)
Waveform	Sine
Output voltage regulation	2%
Output frequency regulation	0.25 Hz
Automatic Voltage Regulation (AVR)	Yes
Output power factor	0.82
Input power factor	0.99
Output power	1800 W
Input operation voltage (min)	60 V
Input operation voltage (max)	150 V
Output operation voltage (min)	100 V
Output operation voltage (max)	125 V
Surge energy rating	1335 J
EMI/RFI noise filtering	Yes
Surge protection	Yes
Emergency Power Off (EPO)	Yes
Output voltage Total Harmonic Distortion (THD)	3%
Noise level	55 dB
Crest factor	3:1
Audible alarm(s)	Yes
Output power capacity	2.2 kVA
Efficiency (ECO mode)	95%
ECO mode	Yes
Input frequency	40/70 Hz
Battery
Battery voltage	12 V
Battery capacity	9 Ah
Battery technology	Sealed Lead Acid (VRLA)
Number of battery cells	6
Battery recharge time	4 h
Typical backup time at half load	20 min
Typical backup time at full load	6.5 min
Hot-swap battery	Yes
Replacement battery cartridge	RB1290X6A
Design
Rack capacity	2U
Form factor	Rackmount/Tower
LED indicators	Yes
Product colour	Black
Certification	UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A
Cable length	118.1" (3 m)
Built-in fan	Yes
Housing material	Metal
Display type	LCD
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 45 °C
Operating relative humidity (H-H)	0 - 90%
Storage relative humidity (H-H)	0 - 95%
Technical details
Output frequency	50/60 Hz
Sustainability certificates	ENERGY STAR
Compliance certificates	RoHS
Cooling
Built-in fan	Yes
Weight & dimensions
Package width	22" (558.8 mm)
Package depth	34.7" (882.6 mm)
Package height	9.25" (234.9 mm)
Weight	68.1 lbs (30.9 kg)
Width	17" (432 mm)
Package weight	77.6 lbs (35.2 kg)
Height	3.5" (89 mm)
Depth	23.6" (600 mm)
Packaging data
Rack mount kit	Yes
Cables included	Phone (RJ-11), Serial, USB cable
Package width	22" (558.8 mm)
Package depth	34.7" (882.6 mm)
Package height	9.25" (234.9 mm)
Package weight	77.6 lbs (35.2 kg)
Certificates
Certification	UL 1778 5th Ed. CSA C22.2 NO.107.3-05 FCC Part 15 Class A
Packaging content
Rack mount kit	Yes
Cables included	Phone (RJ-11), Serial, USB cable
