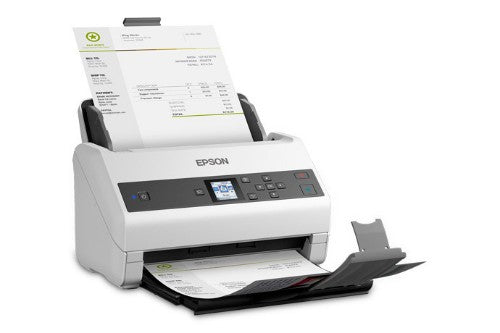

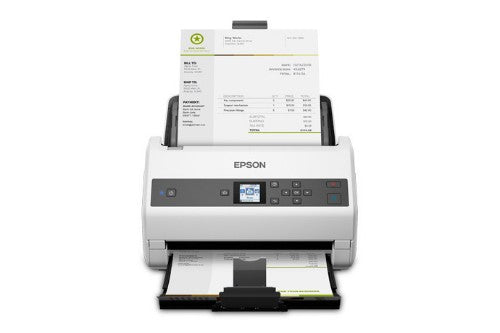

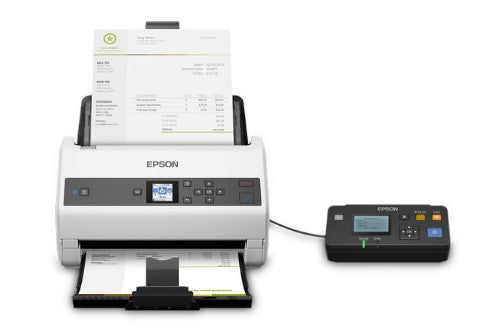

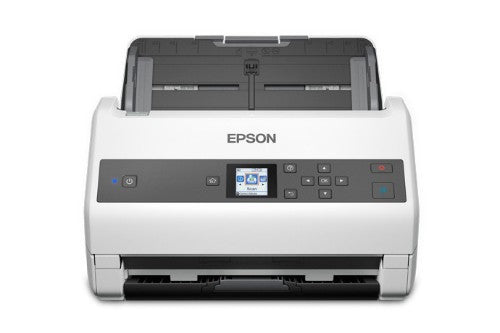

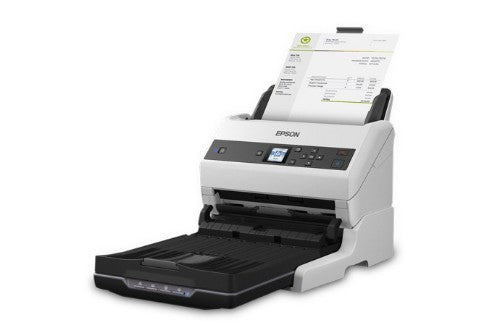

WorkForce DS-870
Description
Fast, reliable, robust desktop scanner for busy workgroups.
Get world-class performance for your busy workgroup with the fast, reliable and robust DS-870 document scanner. Designed for environments where speed and dependability are paramount, the DS-870 offers blazing-fast speeds up to 65 ppm/130 ipm1, plus a high-volume 100-page ADF and peak daily duty cycle of up to 7,000 sheets2. And, it’s all backed by an industry-leading 3-year limited warranty, with an Advance Exchange program featuring free Next-Business-Day shipping3. The included TWAIN and ISIS® drivers ensure seamless integration with existing software, while a convenient, color LCD display and buttons make navigating scan jobs and selecting modes easy.
Specifications
| Scanning |
|---|
| Output monochrome depth |
1 bit |
| Optical scanning resolution |
600 x 600 DPI |
| Colour scanning |
Yes |
| Duplex scanning |
Yes |
| Input colour depth |
30 bit |
| Output colour depth |
24 bit |
| ADF scan speed (b/w, A4) |
65 ppm |
| Input greyscale depth |
10 bit |
| ADF scan speed (greyscale, A4) |
16 ppm |
| Sensor type |
Colour CIS |
| Light source |
RGB LED |
| Daily duty cycle (max) |
7000 pages |
| Design |
|---|
| Built-in display |
Yes |
| Scanner type |
Sheet-fed scanner |
| Display |
LCD |
| Product colour |
Black, White |
| Performance |
|---|
| Sensor type |
Colour CIS |
| Light source |
RGB LED |
| Daily duty cycle (max) |
7000 pages |
| Scan drivers |
ISIS, TWAIN |
| Input capacity |
|---|
| Auto document feeder (ADF) input capacity |
100 sheets |
| Paper handling |
|---|
| Maximum ISO A-series paper size |
A3 |
| Scanning media types supported |
Business Card, Plastic Card, Post Card(JPN) |
| Auto Document Feeder (ADF) media weight |
27 - 413 g/m² |
| Ports & interfaces |
|---|
| Standard interfaces |
USB 3.2 Gen 1 (3.1 Gen 1) |
| Optional connectivity |
Ethernet |
| USB port |
Yes |
| USB version |
3.2 Gen 1 (3.1 Gen 1) |
| Software |
|---|
| Bundled software |
Epson Scan 2
Document Capture Pro
EMC Captiva ISIS |
| Scan drivers |
ISIS, TWAIN |
| Power |
|---|
| Power consumption (typical) |
18 W |
| Power consumption (off) |
0.1 W |
| Input voltage |
100 - 240 V |
| Power supply type |
AC |
| Power consumption (sleep) |
1.4 W |
| AC input frequency |
50 - 60 Hz |
| Display |
|---|
| Display |
LCD |
| Network |
|---|
| Ethernet LAN |
Yes |
| Technical details |
|---|
| Scanner type |
Sheet-fed scanner |
| Product colour |
Black, White |
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Weight & dimensions |
|---|
| Width |
11.9" (302.3 mm) |
| Depth |
8.3" (210.8 mm) |
| Height |
8.5" (215.9 mm) |
| Weight |
7.89 lbs (3.58 kg) |
| Packaging content |
|---|
| Bundled software |
Epson Scan 2
Document Capture Pro
EMC Captiva ISIS |
| Other features |
|---|
| Ethernet LAN |
Yes |
| Scanner type |
Sheet-fed scanner |
