1x HDMI 1.3, 1x DVI, 2x 1920x1200 @ 60Hz, 2x USB 3.0, 4x USB 2.0, USB 3.0 and USB-C
Key Features

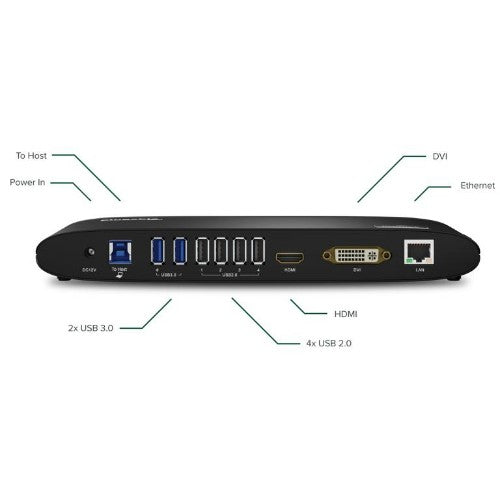

- FLEXIBLE EXPANDABILITY—A single included USB 3.0 or USB-C cable from your laptop to this dock provides dual video outputs, wired Gigabit Ethernet, 3.5mm Headphone and Microphone jacks, two USB 3.0 ports, and four USB 2.0 ports
- DUAL HD MONITORS—Built-in HDMI and DVI outputs each supporting 1920x1200 resolution @ 60Hz refresh rate. Includes DVI to VGA adapter and DVI to HDMI adapter. HDMI port supports resolutions up to 2560x1440 @ 50Hz with a single HDMI display only
- COMPATIBILITY—Docking station compatible with Windows 11, 10, 8.x, 7 and macOS 10.14+. Plug and play driver installation via Windows Update; manual driver installation on macOS. Linux not supported. Wired Ethernet supports Gigabit speed. Dock does not charge host PC
- RECOMMENDED USE—For use with web and productivity software; not recommended for gaming. Cannot be mixed with non-DisplayLink USB adapters. DisplayPort connections not supported. Does not support HDCP, will not playback encrypted or copy-protected content
Description

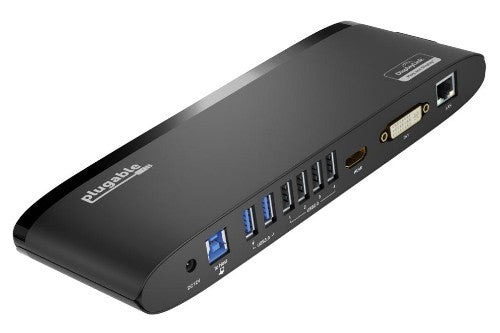

Expand Your WorkstationDesigned for those who want a one-stop upgrade for your USB 3.0 laptop. The Plugable USB 3.0 Universal Laptop Horizontal Docking Station for Windows (UD-3900H) allows you to add dual monitors, and connect your peripherals, all through a single cable back to your laptop. Quickly come and go from your desk with ease. By connecting one cable to your laptop, you gain 11 extra ports of connectivity, making it easier to do more work in less time.

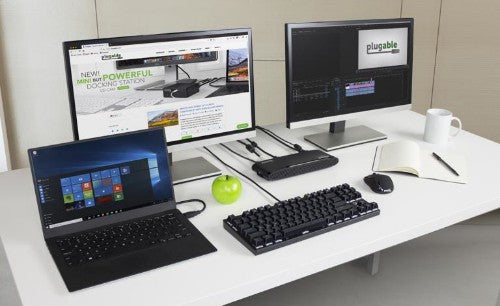

Power users with dual monitors: The UD-3900H is the dock you need to maximize your productivity and your workspace. Great for business uses such as email, web applications, Microsoft office, and more. Featuring a vertical design, you can easily slip this dock between your monitors and save valuable desk space. Conveniently access the front USB and audio ports for those devices you plug and unplug everyday.

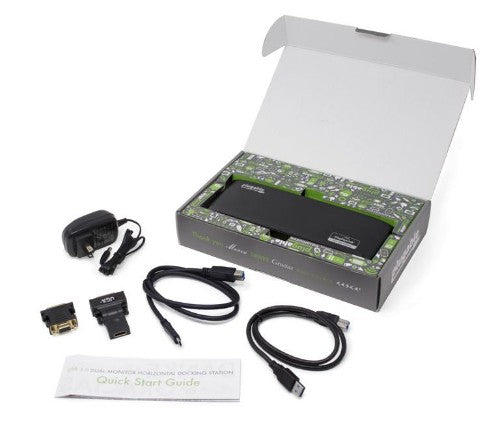

Note: The UD-3900H will not charge your laptop and will need your external charger to provide power to your system. The UD-3900H has one HDMI port and one DVI port and we include both a DVI to VGA adapter and a DVI to HDMI adapter if needed (not compatible with DisplayPort displays). This docking station also includes both USB 3.0 and USB-C cables for compatibility with the widest range of systems.
High-Resolution DisplaysGet more screen space for more productivity. High resolution displays (HDMI, DVI or VGA) will change the way you manage your out of control tabs and your workflow.
No more grainy visuals and tiny screens. Watch videos on clear and sharp 2K 60Hz screens (1920x1200 @ 60Hz). Expand your screen real estate with this dock and cut down the time it takes to work on those highly productive tasks.
Dynamic DesignNot only does this dock expand your connectivity, it also brings a whole new level of performance and flexibility.
Featuring DisplayLink graphic technology, you can connect this dock to a USB 3.0 Windows laptop. So whether you're hoteling at a desk for work, or sharing your dock at home, this dock provides the flexibility you need.

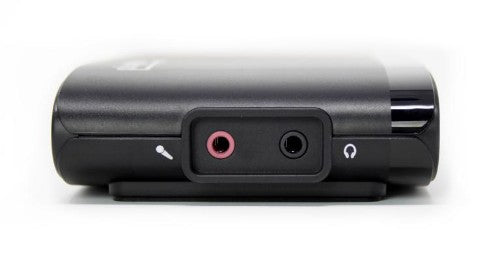

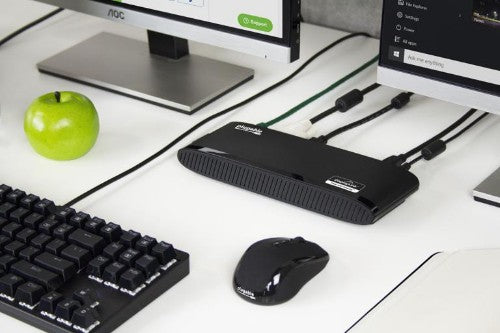

The horizontal orientation is designed to fit under the edge of your display and to give you more room on your desk for the things that matter most. With easily accessible ports on the side of the dock, you can plug and unplug your headphones with ease.
Specifications
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| Headphone connectivity |
3.5 mm |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| USB 2.0 ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
1.3 |
| DVI-I ports quantity |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Connectivity technology |
Docking |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Copper ethernet cabling technology |
1000BASE-T |
| Performance |
|---|
| Maximum digital resolution |
2560 x 1440 pixels |
| Number of displays supported |
2 |
| Product colour |
Black |
| Card reader integrated |
No |
| Plug and Play |
Yes |
| Data transfer rate |
5 Gbit/s |
| HD type |
Quad HD |
| Maximum refresh rate |
60 Hz |
| Technical details |
|---|
| Product colour |
Black |
| Plug and Play |
Yes |
| Data transfer rate |
5 Gbit/s |
| Cable length |
33.1" (0.84 m) |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power supply |
24 W |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows RT 8.1 |
| Mac operating systems supported |
Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Linux operating systems supported |
No |
| Design |
|---|
| Windows operating systems supported |
Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows RT 8.1 |
| Mac operating systems supported |
Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur |
| Product colour |
Black |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
USB Type-A to USB Type-B |
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Cable length |
33.1" (0.84 m) |
