10/100 Mps Ethernet RJ-45, RS-485, Micro USB, SNMP, TCP, RTU, 75.5 x 132 x 37 mm
Description

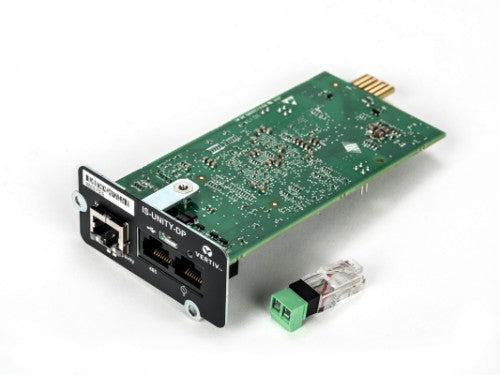

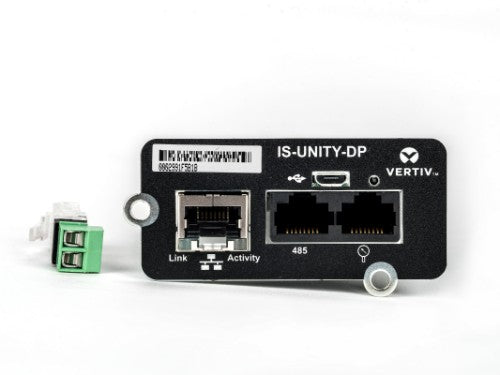

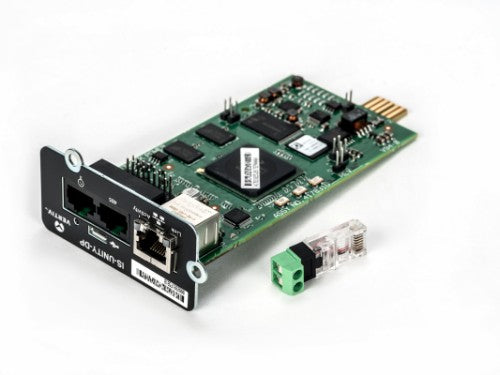

Provides Web access, environmental sensor data, alarm notifications, and third-party interface protocols for Vertiv equipment, and integrates with LIFE Services, Trellis, and Liebert Nform. The IS-UNITY-DP (dual protocol) card allows customers to enable two of the supported third-party protocols (SNMP, BACnet, Modbus, and YDN23) for interfacing with building management or data center management system applications.
Specifications
| Ports & interfaces |
|---|
| Internal |
Yes |
| USB ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Interface |
Ethernet |
| Connectivity technology |
Wired |
| Bandwidth |
|---|
| Maximum data transfer rate |
100 Mbit/s |
| Technical details |
|---|
| Product colour |
Black, Green |
| Web-based management |
Yes |
| Harmonized System (HS) code |
85176990 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Security algorithms |
SNMP |
| Web-based management |
Yes |
| Supported network protocols |
HTTP/HTTPS |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Maximum data transfer rate |
100 Mbit/s |
| Design |
|---|
| Product colour |
Black, Green |
| Internal |
Yes |
| Software |
|---|
| Linux operating systems supported |
Yes |
| Power |
|---|
| Output voltage |
7-12 V |
| System requirements |
|---|
| Linux operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Width |
2.97" (75.5 mm) |
| Depth |
5.2" (132 mm) |
| Height |
1.46" (37 mm) |
| Weight |
0.705 oz (20 g) |
| Security |
|---|
| Security algorithms |
SNMP |
| Protocols |
|---|
| Supported network protocols |
HTTP/HTTPS |
| Performance |
|---|
| Security algorithms |
SNMP |
| Web-based management |
Yes |
| Linux operating systems supported |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176990 |
| Other features |
|---|
| Harmonized System (HS) code |
85176990 |
