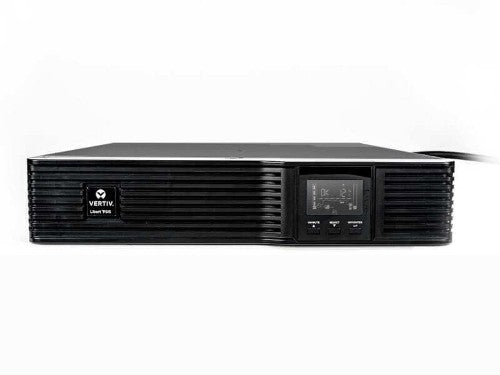

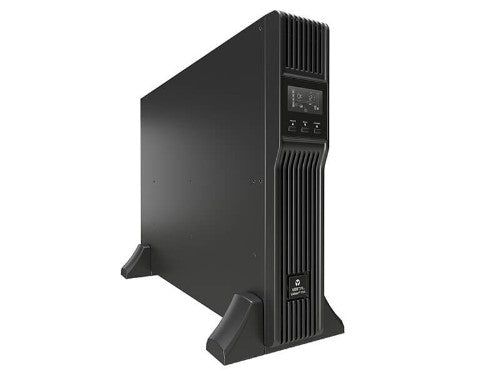

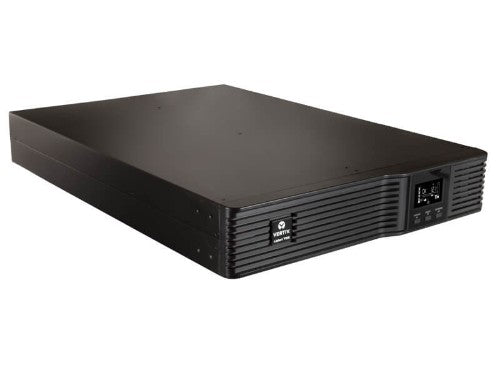

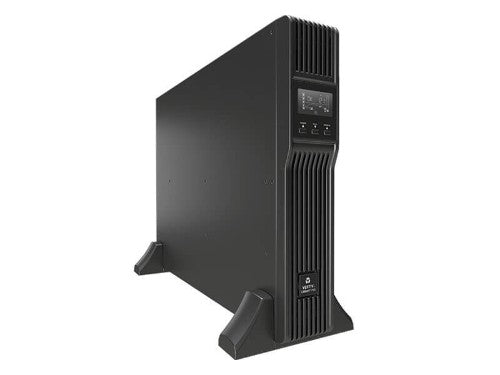

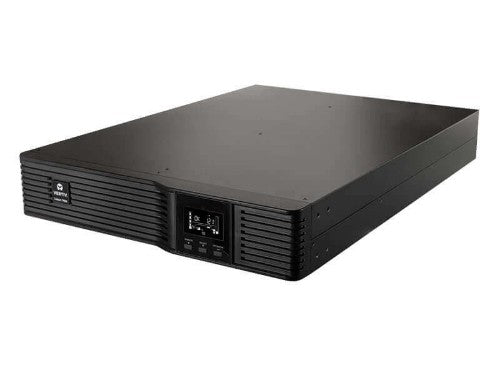

1500 VA, 1350 W, LCD, USB, RJ-45, 2U, 438 x 510 x 88 mm, 19.3 Kg
Key Features
- ULTIMATE POWER PROTECTION: The advanced pure sine wave UPS from Vertiv compensates for power fluctuations, protects against equipment damage, and prevents data loss during a power disturbance. Automatic voltage regulation (AVR) technology safeguards equipment against a range of utility power fluctuations without battery operation
- EASY MONITORING: The Vertiv™ Liebert® PSI UPS offers a compact 2U rackmount/tower configuration, with the LCD display panel rotating 90 degrees to make the readout easy to see in either configuration, including output overload, or low-battery or replace-battery warnings
- HIGH-END ELECTRONICS: With advanced pure sine wave power conditioning, the Vertiv™ Liebert® PSI UPS protects valuable electronic equipment from the damage power fluctuations can cause. The Vertiv™ Liebert® PSI5 UPS allows users to save their progress during power loss and safeguard expensive electronics when utility power fluctuates
- Eligible for the Vertiv™ Trade-In Program. Contact a Vertiv partner for discount rates and to calculate your savings
- Battery backup provides ample time for an orderly shutdown of connected equipment
- Liebert® PSI5 UPS operates at a high 0.9 output power factor
- Available network communications card provides remote monitoring
- and power management capability — Local USB or SNMP via optional Vertiv™ Liebert® UNITY communication card
- Liebert PSI5 UPS is compliant with the Restriction of Hazardous Substances Directive (RoHS)
- Rotatable LCD Display allows users to view real-time conditions, alarm notices, and runtime information
- The standard Liebert PSI5 UPS can accept external battery cabinets for long runtime applications
Description
Compact, Automatic Voltage Regulation (AVR) line-interactive UPS system designed especially for IT applications such as network closets and small data centers. Supports advanced pure sine wave output on battery to safeguard critical IT equipment and electronics. Provides reliable power protection for servers, critical nodes, network workstations, large network peripherals, network routers, bridges, and others. Three form-factors available: 1U rack mount, 2U rack/tower and mini tower.
Specifications
| Power |
|---|
| Output frequency |
57/63 Hz |
| Output power |
1350 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
146 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Surge energy rating |
1372 J |
| Efficiency |
96% |
| Emergency Power Off (EPO) |
Yes |
| Output power capacity |
1.5 kVA |
| Input frequency |
55/65 Hz |
| Ports & interfaces |
|---|
| Cable length |
118.1" (3 m) |
| Emergency Power Off (EPO) connector |
Yes |
| USB port |
Yes |
| Cabling technology |
10/100Base-T |
| AC outlets quantity |
6 AC outlet(s) |
| AC outlet types |
NEMA 5-15R |
| Power plug |
NEMA 5-15 |
| USB 2.0 ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB port type |
USB Type-B |
| Performance |
|---|
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Response time |
6 ms |
| Surge protection |
Yes |
| Noise level |
55 dB |
| Features |
|---|
| Output frequency |
57/63 Hz |
| UPS topology |
Line-Interactive |
| Waveform |
Pure sine |
| Automatic Voltage Regulation (AVR) |
Yes |
| Number of output phases |
1 |
| Number of input phases |
1 |
| Response time |
6 ms |
| Output power |
1350 W |
| Input operation voltage (min) |
75 V |
| Input operation voltage (max) |
146 V |
| Output operation voltage (min) |
100 V |
| Output operation voltage (max) |
125 V |
| Surge energy rating |
1372 J |
| Efficiency |
96% |
| Surge protection |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Noise level |
55 dB |
| Output power capacity |
1.5 kVA |
| Input frequency |
55/65 Hz |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
4 h |
| Typical backup time at half load |
12 min |
| Typical backup time at full load |
4 min |
| Design |
|---|
| Rack capacity |
2U |
| Form factor |
Rackmount/Tower |
| Product colour |
Black |
| Safety |
UL 1778, c-UL-us |
| Certification |
FCC, UL 497 B, ISTA |
| Cable length |
118.1" (3 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 50 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Storage relative humidity (H-H) |
20 - 90% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Technical details |
|---|
| Output frequency |
57/63 Hz |
| Certificates |
|---|
| Certification |
FCC, UL 497 B, ISTA |
| Safety |
UL 1778, c-UL-us |
| Packaging content |
|---|

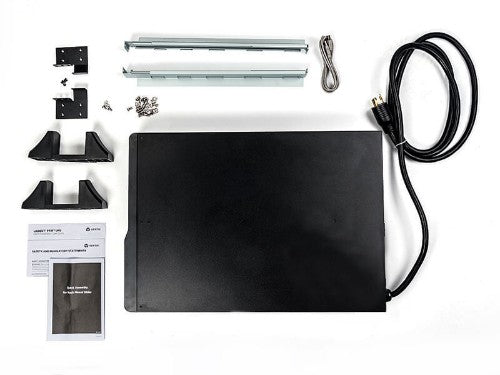

| Rack mount kit |
Yes |
| Manual |
Yes |
| Safety regulation & standards |
|---|
| Safety |
UL 1778, c-UL-us |
| Weight & dimensions |
|---|
| Package width |
10.2" (258 mm) |
| Package depth |
26.5" (672 mm) |
| Package height |
21.7" (550 mm) |
| Weight |
42.5 lbs (19.3 kg) |
| Width |
17.2" (438 mm) |
| Package weight |
51.8 lbs (23.5 kg) |
| Height |
3.46" (88 mm) |
| Depth |
20.1" (510 mm) |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| Manual |
Yes |
| Package width |
10.2" (258 mm) |
| Package depth |
26.5" (672 mm) |
| Package height |
21.7" (550 mm) |
| Package weight |
51.8 lbs (23.5 kg) |
