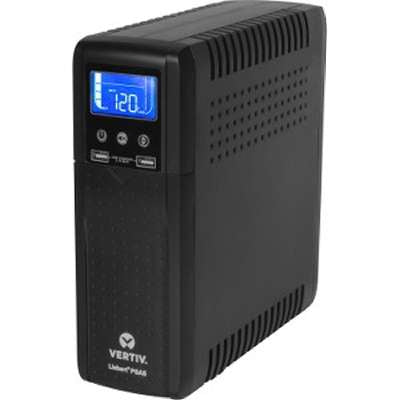

Vertiv Liebert PSA5-500MT120 uninterruptible power supply (UPS) Line-Interactive 0.5 kVA 300 W 10 AC outlet(s)
Description
Key Features
- Protects televisions, desktop computers, gaming consoles, workstations, networks/routers, surveillance & other important electronics
- Provides backup power and protection during damaging surges, spikes or power outages
- 5 surge only & 5 battery & surge outlets with built in USB charging port
- User friendly LCD display screen on front of unit for easily monitoring estimated run time, load capacity, battery status and input/output voltage and frequency
- Uses line-interactive, AVR technology (Automatic Voltage Regulation), which ensures consistent and clean power at all times
Description
The PSA5 UPS is an economical, line-interactive UPS battery backup technology designed with the features you need for reliable power protection for small/home office computers, network gear, and home entertainment equipment. Designed with easy controls for user friendly operation, the Liebert PSA5 provides the run time to save work in process and orderly shutdown your equipment.Specifications
| Power | |
|---|---|
| Output frequency | 60 Hz |
| Output voltage regulation | 0.5% |
| Output power | 300 W |
| Input operation voltage (min) | 86 V |
| Input operation voltage (max) | 143 V |
| Output operation voltage (min) | 105 V |
| Output operation voltage (max) | 143 V |
| Surge energy rating | 316 J |
| Efficiency | 90% |
| Output power capacity | 0.5 kVA |
| Input frequency | 50/60 Hz |
| Ports & interfaces | |
| Cable length | 70.9" (1.8 m) |
| USB port | Yes |
| AC outlets quantity | 10 AC outlet(s) |
| AC outlet types | NEMA 5–15R |
| Power plug | NEMA 5-15P |
| USB 2.0 ports quantity | 3 |
| USB port type | USB Type-A |
| Performance | |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 6 ms |
| Surge protection | Yes |
| Power protection features | Over current, Short circuit |
| Noise level | 40 dB |
| Features | |
| Output frequency | 60 Hz |
| UPS topology | Line-Interactive |
| Waveform | Sine |
| Output voltage regulation | 0.5% |
| Automatic Voltage Regulation (AVR) | Yes |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Response time | 6 ms |
| Output power | 300 W |
| Input operation voltage (min) | 86 V |
| Input operation voltage (max) | 143 V |
| Output operation voltage (min) | 105 V |
| Output operation voltage (max) | 143 V |
| Surge energy rating | 316 J |
| Efficiency | 90% |
| Surge protection | Yes |
| Power protection features | Over current, Short circuit |
| Noise level | 40 dB |
| Output power capacity | 0.5 kVA |
| Input frequency | 50/60 Hz |
| Battery | |
| Number of batteries supported | 1 |
| Battery voltage | 12 V |
| Battery capacity | 7 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at half load | 8 min |
| Typical backup time at full load | 2 min |
| Design | |
| Product colour | Black |
| Safety | cTUVus, CSA 22.2 no. 107.3:2014 |
| Certification | FCC, EN61000-4-5, ISTA |
| Cable length | 70.9" (1.8 m) |
| Display type | LCD |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 59055.1" (0 - 1500 m) |
| Non-operating altitude | 0 - 590551.2" (0 - 15000 m) |
| Technical details | |
| Output frequency | 60 Hz |
| Weight & dimensions | |
| Package width | 6.22" (158 mm) |
| Package depth | 14.2" (360 mm) |
| Package height | 14.5" (369 mm) |
| Weight | 29.5 lbs (13.4 kg) |
| Width | 3.9" (99 mm) |
| Package weight | 32.2 lbs (14.6 kg) |
| Height | 11" (280 mm) |
| Depth | 11.4" (289 mm) |
| Packaging data | |
| Manual | Yes |
| Package width | 6.22" (158 mm) |
| Package depth | 14.2" (360 mm) |
| Package height | 14.5" (369 mm) |
| Package weight | 32.2 lbs (14.6 kg) |
| Certificates | |
| Safety | cTUVus, CSA 22.2 no. 107.3:2014 |
| Certification | FCC, EN61000-4-5, ISTA |
| Packaging content | |
| Manual | Yes |
