850VA, 500W, 120 VAC, 60 Hz, PWM Simulated Sine Wave, 6-8 ms, 40 dBA, 305 x 158.5 x 97 mm, 9.7 kg
Key Features
- Battery backup and surge protection functionalities
- 8 total outlets, including 4 surge only and 4 surge/backup battery outlets

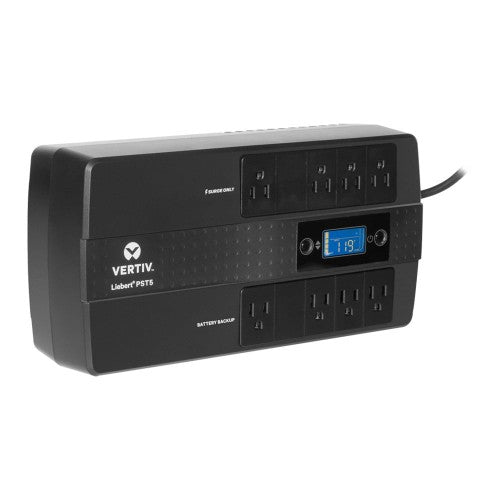

- LCD panel (only on 660VA and (50VA models) in front of unit for easy monitoring source status, load capacity, battery status, and input/output voltage and frequency
- RJ11/45 for data line surge protection, advanced early warning of shutdown and EMI/RFI filters
- Three-year, full unit coverage, including battery with options for extended product warranties
Description
Protectstelevisions, desktop computers, gaming consoles, workstations, networks/routers, surveillance & other important electronics
Energy Star certified UPS provides backup power and protection during damaging surges, spikes or power outages while remaining energy efficient
Specifications
| Power |
|---|
| Output frequency |
60 Hz |
| Output power |
500 W |
| Input operation voltage (min) |
90 V |
| Input operation voltage (max) |
145 V |
| Output operation voltage (min) |
96 V |
| Output operation voltage (max) |
145 V |
| Surge energy rating |
316 J |
| Efficiency |
95% |
| Output power capacity |
0.85 kVA |
| Input frequency |
60 Hz |
| Performance |
|---|
| UPS topology |
Standby (Offline) |
| Waveform |
Pulse width modulation (PWM) |
| Power protection features |
Over current, Overload, Short circuit |
| Noise level |
40 dB |
| Features |
|---|
| Output frequency |
60 Hz |
| UPS topology |
Standby (Offline) |
| Waveform |
Pulse width modulation (PWM) |
| Output power |
500 W |
| Input operation voltage (min) |
90 V |
| Input operation voltage (max) |
145 V |
| Output operation voltage (min) |
96 V |
| Output operation voltage (max) |
145 V |
| Surge energy rating |
316 J |
| Efficiency |
95% |
| Power protection features |
Over current, Overload, Short circuit |
| Noise level |
40 dB |
| Output power capacity |
0.85 kVA |
| Input frequency |
60 Hz |
| Ports & interfaces |
|---|
| USB port |
Yes |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
NEMA 5-15R |
| Power plug |
NEMA 5-15P |
| USB port type |
USB Type-A/USB Type-B |
| Battery |
|---|
| Battery voltage |
12 V |
| Battery capacity |
7 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Number of battery cells |
1 |
| Typical backup time at half load |
6 min |
| Typical backup time at full load |
1.5 min |
| Design |
|---|
| Form factor |
Compact |
| Product colour |
Black |
| Safety |
cTUVus (UL 1778 5th Edition) CSA 22.2 no. 107.3:2014 |
| Certification |
RFI / EMI FCC Part 15, Class B
EN61000-4-5; Line to Neutral: Level 2; Line to Earth: Level 3 |
| Control type |
Buttons |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Technical details |
|---|
| Output frequency |
60 Hz |
| Certificates |
|---|
| Certification |
RFI / EMI FCC Part 15, Class B
EN61000-4-5; Line to Neutral: Level 2; Line to Earth: Level 3 |
| Safety |
cTUVus (UL 1778 5th Edition) CSA 22.2 no. 107.3:2014 |
| Safety regulation & standards |
|---|
| Safety |
cTUVus (UL 1778 5th Edition) CSA 22.2 no. 107.3:2014 |
| Weight & dimensions |
|---|
| Package width |
15" (381 mm) |
| Package depth |
10.5" (266 mm) |
| Package height |
7.99" (203 mm) |
| Weight |
21.4 lbs (9.7 kg) |
| Width |
12" (305 mm) |
| Package weight |
24.3 lbs (11 kg) |
| Height |
3.82" (97 mm) |
| Depth |
6.24" (158.5 mm) |
| Packaging data |
|---|
| Package width |
15" (381 mm) |
| Package depth |
10.5" (266 mm) |
| Package height |
7.99" (203 mm) |
| Package weight |
24.3 lbs (11 kg) |
