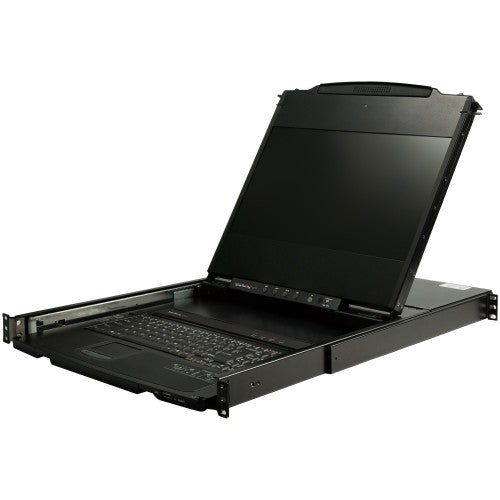

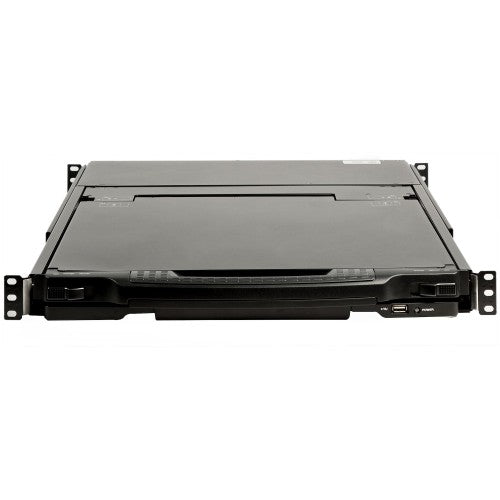

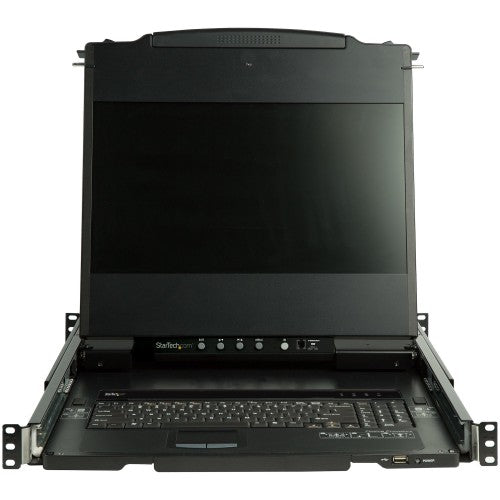

StarTech.com Dual Rail Rackmount KVM Console HD 1080p - Single Port DVI/VGA KVM w/17" LCD Monitor for Server Rack - Fully Featured 1U LCD KVM Drawer w/Cables - USB Support - 44230 MTBF (RKCOND17HD)
Key Features
- Flexible Design: Rackmount KVM console w/ dual rails that allow the screen & keyboard to be pulled in & out independently, perfect for system monitoring as needed and to be put away when not in use
- High Definition: Rack mount monitor w/high-resolution widescreen (16:9) 1080p LCD panel perfect for applications needing extra detail or substantial info on one screen E.g. IP camera monitoring
- Versatile Interfaces: 17.3" Active Matrix TFT 16:9 widescreen
- Dual Rails
- 1U height
- Full keyboard + Trackpad
Description
1080p Display | 17 Inch | 1U | DVI & VGA Interface | Cables Included
Providing centralized control of your single PC or dozens of servers, this dual rail rackmount KVM console (QWERTY keyboard) also gives you easy access to and visibility of your system while it’s mounted in a server rack or cabinet.
Dual Rail Design
The dual rail KVM console design maximizes space in your datacenter’s rack cabinets by allowing the LCD monitor and the keyboard/mouse to move separately from each other. You can tuck the keyboard away while the display stays active, allowing you to conveniently monitor your computer through closed glass or mesh rack cabinet doors.
High Definition LCD Monitor
The 1080p KVM console is 17.3” and LED back-lit, for low power consumption. It supports high definition resolutions up to 1920x1080 providing sharper video performance.
Digital & Analog Support
Whether you are running a multi-port KVM with an analog display or a single port KVM with a high definition display, this DVI/ VGA KVM console can support both signals.
Simple Setup

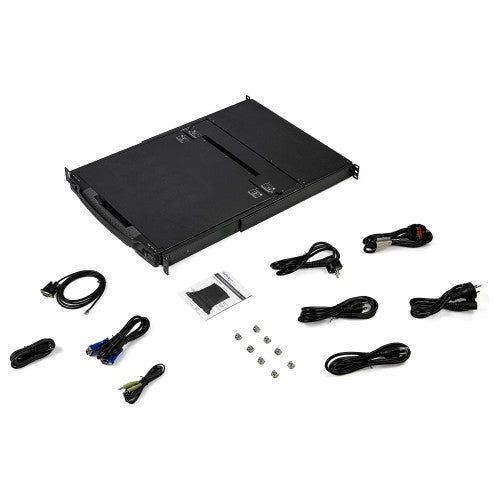

This KVM console comes with everything you need to set up:
✔ 1 Audio Cable
✔ 1 Set of KVM Cables (USB/VGA)
✔ 2 Rear Mounting Brackets
✔ M5 Cage Nuts and Screws
Once your KVM console is mounted to your rack, you can use the USB port on the front to easily connect any USB compatible peripheral such as a fingerprint scanner or mousethumb drive.
StarTech.com offers a wide selection of KVM consoles to help you access your systems more efficiently without the expense and clutter of extra peripherals. This dual rail KVM console is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Display |
|---|
| Response time |
8 ms |
| Display number of colours |
262144 colors |
| Display type |
LCD |
| Display |
TFT LCD |
| Display diagonal |
17.3" |
| Viewing angle, vertical |
120° |
| Viewing angle, horizontal |
140° |
| Pixel pitch |
0.00783 x 0.00783" (0.199 x 0.199 mm) |
| On Screen Display (OSD) |
No |
| Display resolution |
1920 x 1080 pixels |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
650:1 |
| Aspect ratio |
16:9 |
| Supported resolutions |
1024x576
1152x648
1280x720
1366x76
1600x900
1920x1080 |
| Technical details |
|---|
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Operating relative humidity (H-H) |
0 - 80% |
| Mean time between failures (MTBF) |
44230 h |
| Material |
Steel |
| Product colour |
Black |
| Cables included |
Audio (3.5mm), KVM |
| Compliance certificates |
RoHS |

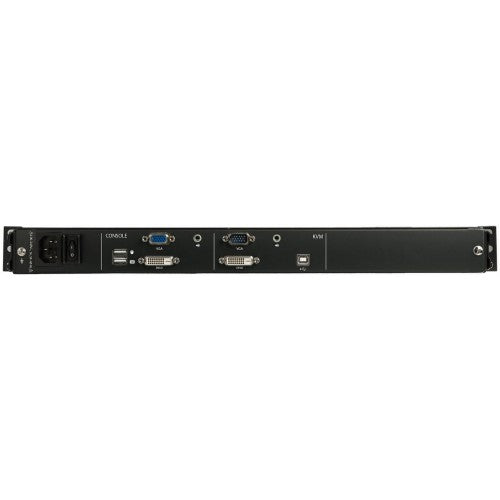

| Ports & interfaces |
|---|
| Video port type |
DVI/VGA |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| USB 2.0 Type-A ports quantity |
2 |
| 3.5 mm (1/8-inch) out |
Yes |
| 3.5 mm (1/8-inch) in |
Yes |
| DVI connector type |
DVI-D |
| DVI output ports |
1 |
| DVI input ports |
1 |
| USB 2.0 Type-B ports quantity |
1 |
| Keyboard |
|---|
| Hot keys |
Yes |
| Power |
|---|
| AC adapter input voltage |
100 - 240 V |
| Input current |
1 A |
| Power consumption (typical) |
19.4 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CE, FCC, UL, REACH |
| Weight & dimensions |
|---|
| Mounting depth (min) |
25.6" (65 cm) |
| Mounting depth (max) |
39.4" (100 cm) |
| Weight |
30 lbs (13.6 kg) |
| Width |
18.9" (480 mm) |
| Height |
1.73" (44 mm) |
| Depth |
28.6" (727 mm) |
| Packaging data |
|---|
| Package width |
26.8" (680 mm) |
| Package depth |
33.1" (840 mm) |
| Package height |
5.24" (133 mm) |
| Package weight |
41.7 lbs (18.9 kg) |
| Packaging content |
|---|
| Screws included |
Yes |
| Mounting brackets included |
Yes |
| Quick installation guide |
Yes |
| Cables included |
Audio (3.5mm), KVM |
| Number of screws |
8 |
| Number of cage nuts |
8 |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Cage nuts included |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
26.8" (680 mm) |
| Master (outer) case length |
33.1" (840 mm) |
| Master (outer) case height |
5.24" (133 mm) |
| Products per master (outer) case |
1 pc(s) |
