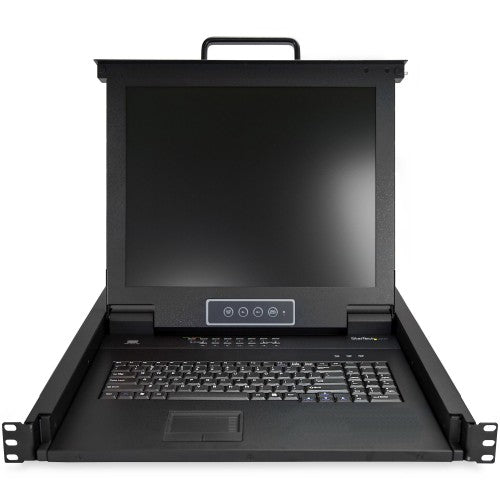

StarTech.com 16 Port Rackmount KVM Console w/ 6ft Cables - Integrated KVM Switch w/ 17" LCD Monitor - Fully Featured 1U LCD KVM Drawer- OSD KVM - Durable 50,000 MTBF - USB + VGA Support (RKCONS1716K)
Key Features
- TECH SPECIFICATIONS: Rackmount KVM Console, 17"" Active Matrix TFT LCD Monitor, 1280 x 1024, 16 port VGA KVM switch w/ 6 ft. cables, 99 key full keyboard + numeric keypad & trackpad; Supports USB 2.0
- PROFESSIONAL & SECURE: Customizable hot-keys, on-screen display (OSD), multi-level user security, user access levels / port permissions, & auto scan
- INTEGRATED DESIGN: Combines a KVM + Console w/ integrated power supply into 1U of rack space allowing space for other equipment. Mount depth: 22"" [56 cm] to 35"" [90 cm] (incl. mounting hardware)
- HEAVY DUTY: LCD KVM drawer has durable steel construction and heavy duty rail design that supports frequent use in operating environments from 0C to 40C (32F to 104F) with an MTBF of 50,000 hours
- TESTED & PROVEN: This OS independent rack console is universally compatible w/ leading servers and backed by a StarTech.com 2-year warranty and free lifetime 24/5 multilingual technical support
Description
KVM Console | 1U | VGA | 1280x1024 | Cables & Mounting Hardware Included

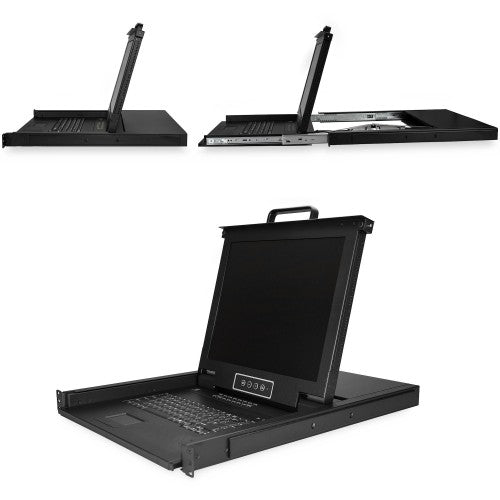

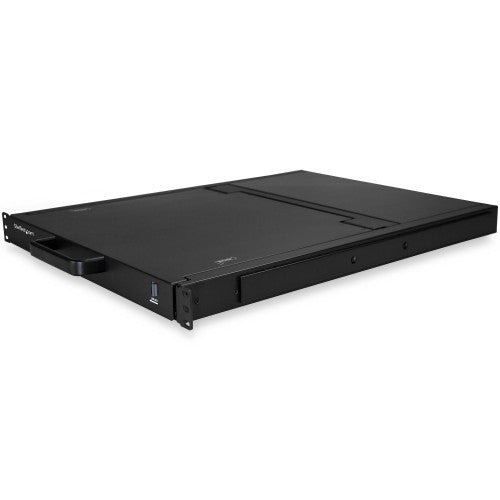

Providing centralized control of up to 16 servers, this 16-port rackmount KVM console gives you easy access to your systems. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution
The 1U rackmount console features a built-in keyboard (QWERTY), and a touchpad for intuitive control, as well as a 17-inch LCD display that supports resolutions up to 1280x1024.
This 16-port KVM console comes with everything you need to set up right out of the box:
• 16 VGA KVM Cables
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
With direct access to 16 systems or servers, the 16-port KVM module gives you the flexibility you need to easily integrate the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or the entire server room. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. The RKCONS1716K is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Display |
|---|
| Response time |
5 ms |
| Display number of colours |
16.78 million colors |
| Display type |
LCD |
| Display |
TFT LCD |
| Display diagonal |
17" |
| Viewing angle, vertical |
160° |
| Viewing angle, horizontal |
170° |
| Pixel pitch |
0.0104 x 0.0104" (0.264 x 0.264 mm) |
| On Screen Display (OSD) |
Yes |
| Display resolution |
1280 x 1024 pixels |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
5:4 |
| Technical details |
|---|
| Key lock |
No |
| Daisy chain |
No |
| LED indicators |
Yes |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Operating relative humidity (H-H) |
10 - 80% |
| Mean time between failures (MTBF) |
50000 h |
| Material |
Steel |
| Product colour |
Black |
| Cables included |
KVM |
| IP control |
No |
| Compliance certificates |
RoHS |

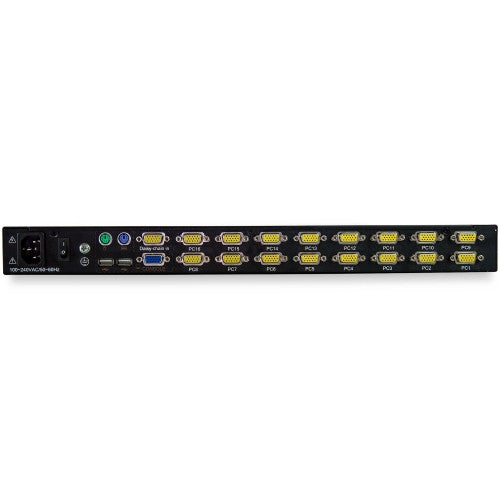

| Ports & interfaces |
|---|
| Video port type |
VGA |
| Mouse port type |
PS/2 |
| Keyboard port type |
PS/2 |
| USB 2.0 Type-A ports quantity |
2 |
| VGA (D-Sub) ports quantity |
16 |
| Keyboard |
|---|
| Hot keys |
Yes |
| Power |
|---|
| AC adapter input voltage |
100 - 240 V |
| Input current |
1.5 A |
| Power consumption (typical) |
23 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
FCC, PSE, UL, CE, REACH |
| Weight & dimensions |
|---|
| Mounting depth (min) |
22" (56 cm) |
| Mounting depth (max) |
35.4" (90 cm) |
| Weight |
28.7 lbs (13 kg) |
| Width |
17.6" (448 mm) |
| Height |
22.9" (581 mm) |
| Depth |
1.69" (43 mm) |
| Packaging data |
|---|
| Package width |
24.2" (615 mm) |
| Package depth |
30.1" (765 mm) |
| Package height |
7.28" (185 mm) |
| Package weight |
46.5 lbs (21.1 kg) |
| Packaging content |
|---|
| Screws included |
Yes |
| Mounting brackets included |
Yes |
| Manual |
Yes |
| Cables included |
KVM |
| Number of screws |
8 |
| Number of cage nuts |
8 |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Cage nuts included |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
24.2" (615 mm) |
| Master (outer) case length |
30.1" (765 mm) |
| Master (outer) case height |
7.28" (185 mm) |
| Products per master (outer) case |
1 pc(s) |
