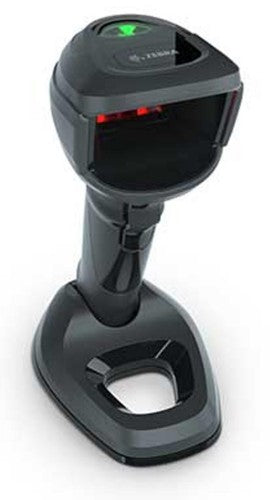

IMPROVE WORKFLOW EFFICIENCY AND ACCURACY WITH THE HYBRID PRESENTATION IMAGER BUILT FOR THE LABBarcodes found in the lab can be challenging for a general purpose scanner. That’s why the DS9900 Series is purpose-built for lab environments, offering unparalleled productivity and ease of use. You get first-time, every time capture of small, high density, curved and color-coded barcodes. A one-of-a-kind hybrid design provides seamless switching between handheld and hands-free scanning, and an optional RFID model and unrivaled management tools drive workflow efficiency to a new level.
SCAN IT ALL
High density focus and white illumination LEDs easily read dense barcodes on microscope slides, curved barcodes on medicine bottles and blood vials, and barcodes on color-coded specimen trays and biopsy cassettes. An 800 MHz microprocessor, megapixel sensor and exclusive PRZM Intelligent Imaging technology deliver unparalleled scanning performance.
TWO SCANNERS IN ONE
While other products are handheld scanners retrofitted with a base, our award-winning Industrial Design team created the DS9900 Series for handheld and hands-free use. The result? Fast, seamless switching between modes. A sturdy, one-piece design with a small footprint. The right ergonomics. And a scan range that automatically adjusts as needed.
UNRIVALED MANAGEABILITY
Complimentary industry-best tools make it easier than ever to remotely configure scanners, upgrade firmware and format data for your application. Right out of the box, the scanner is configured for common applications and auto-host detect cables automatically select the right host interface — just plug in the scanner and you’re ready to go.
Specifications
| Scanning | |
|---|---|
| Type | Handheld bar code reader |
| 2D (matrix & stacked) barcodes supported | Aztec Code, Composite Codes, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code, TLC-39 |
| Linear (1D) barcodes supported | Codabar, Code 11, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, PDF417, U.P.C. |
| Wavelength | 528 nm |
| Scanner type | 1D/2D |
| Optical sensor resolution (W x H) | 1280 x 800 pixels |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Standard interfaces | RS-485 |
| Performance | |
| LED indicators | Yes |
| Built-in display | No |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Image formats supported | BMP, JPEG, TIFF |
| Design | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Power | |
| Input voltage | 5 V |
| Weight & dimensions | |
| Width | 3.7" (94 mm) |
| Depth | 5.2" (132 mm) |
| Height | 7.99" (203 mm) |
| Weight | 11.6 oz (330 g) |
| Technical details | |
| Type | Handheld bar code reader |
| LED indicators | Yes |
| Built-in display | No |
| Built-in processor | Yes |
| Processor frequency | 800 MHz |
| International Protection (IP) code | IP52 |
| Product colour | Black |
| Harmonized System (HS) code | 84716070 |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
| Harmonized System (HS) code | 84716070 |
