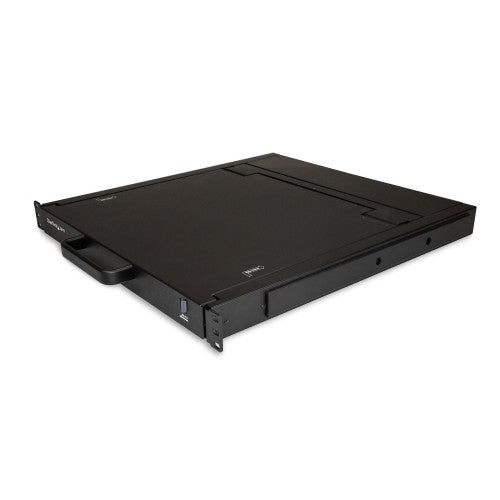

StarTech.com Rackmount KVM Console - Single Port VGA KVM with 17" LCD Monitor for Server Rack - Fully Featured Universal 1U LCD KVM Drawer w/Cables & Hardware - USB Support - 50,000 MTBF (RKCONS1701)
Key Features

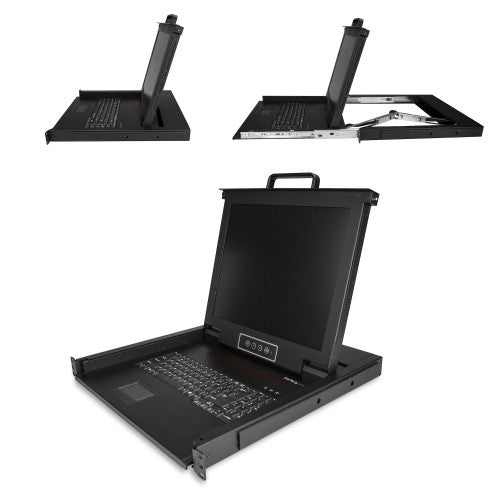

- FLEXIBLE DESIGN: This rackmount KVM console drawer works with all KVM switch brands and models that supports VGA and USB interfaces and conveniently slides into the server rack when not in use
- VERSATILE INTERFACES: Rack mount monitor w/ 17" Active Matrix TFT 1280 x 1024 LCD
- 1U height
- 99 key full keyboard with numeric keypad + Trackpad
- Supports VGA and USB
- Integrated Power Supply
Description
KVM Console | 1U | VGA | 1280x1024 | Cable & Mounting Hardware Included
Providing centralized control of your PC, server, or KVM switch, this single-port rackmount KVM console gives you easy access to your connected system. With a minimal footprint, it mounts in a server rack or cabinet using only 1U of rack space.
An All-Inclusive Solution

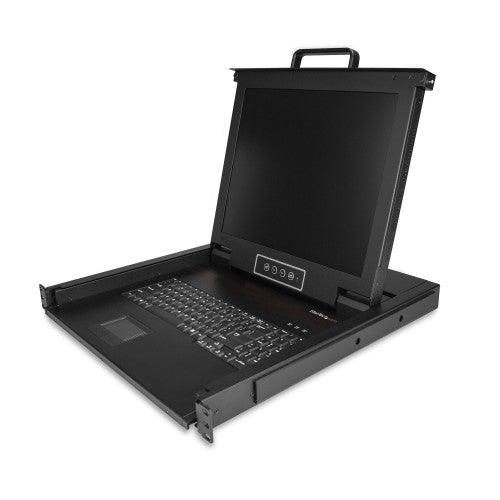

The 1U rackmount console features a built-in keyboard (QWERTY), a touchpad for intuitive control, and a 17-inch LCD display that supports resolutions up to 1280x1024.

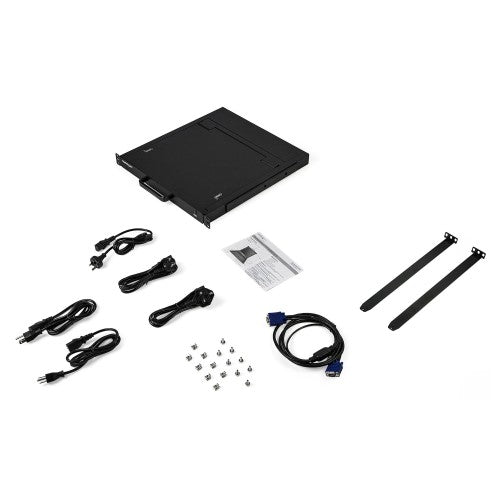

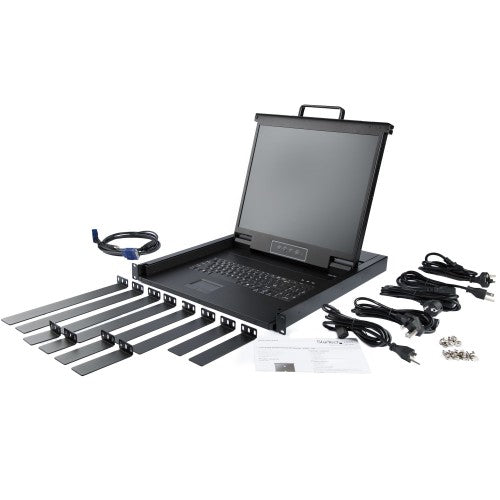

This single-port KVM console includes everything you need to set up right out of the box:
• 1 VGA KVM Cable
• Mounting Rails
• M5 Cage Nuts and Screws
Simple System Integration
The rack console features a single-port KVM module, which can be connected directly to a server or PC, or to a KVM switch for access to multiple systems. The KVM module offers the flexibility you need for easily integrating the console into your existing server infrastructure.
StarTech.com Rack Consoles
Rack consoles provide convenient, rack-mounted control options for single servers or entire server rooms. KVM consoles include LCD display, keyboard, and trackpad, all sliding into 1U of rack space. RKCONS1701 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications
| Display |
|---|
| Response time |
5 ms |
| Display number of colours |
16.78 million colors |
| Display type |
LCD |
| Display diagonal |
17" |
| Viewing angle, vertical |
160° |
| Viewing angle, horizontal |
170° |
| Pixel pitch |
0.0104 x 0.0104" (0.264 x 0.264 mm) |
| Display resolution |
1280 x 1024 pixels |
| Display brightness |
250 cd/m² |
| Contrast ratio (typical) |
1000:1 |
| Aspect ratio |
5:4 |
| Colour depth |
8 bit |
| Technical details |
|---|
| Key lock |
No |
| Daisy chain |
No |
| LED indicators |
Power, Status |
| Rack mounting |
Yes |
| Rack capacity |
1U |
| Operating relative humidity (H-H) |
10 - 80% |
| Mean time between failures (MTBF) |
50000 h |
| Material |
Steel |
| Cables included |
KVM |
| IP control |
No |
| Cable length |
71.7" (1.82 m) |
| Compliance certificates |
RoHS |
| Ports & interfaces |
|---|
| Video port type |
VGA |
| Mouse port type |
USB |
| Keyboard port type |
USB |
| Power |
|---|
| AC adapter input voltage |
100 - 240 V |
| Input current |
1.5 A |
| Power consumption (typical) |
13 W |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Certificates |
|---|
| Certification |
CE, FCC, PSE, UL |
| Weight & dimensions |
|---|
| Mounting depth (min) |
17.7" (45 cm) |
| Mounting depth (max) |
31.1" (79 cm) |
| Weight |
25.6 lbs (11.6 kg) |
| Width |
17.6" (448 mm) |
| Height |
18.5" (471 mm) |
| Depth |
1.67" (42.5 mm) |
| Packaging data |
|---|
| Package width |
24.2" (615 mm) |
| Package depth |
30.1" (765 mm) |
| Package height |
7.28" (185 mm) |
| Package weight |
37.7 lbs (17.1 kg) |
| Packaging content |
|---|
| Screws included |
Yes |
| Mounting brackets included |
Yes |
| Quick installation guide |
Yes |
| Rack mount kit |
Yes |
| Cables included |
KVM |
| Number of screws |
8 |
| Number of cage nuts |
8 |
| Included power plug types |
ANZ, EU, JP, NA, UK |
| Cage nuts included |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
24.2" (615 mm) |
| Master (outer) case length |
30.1" (765 mm) |
| Master (outer) case height |
7.28" (185 mm) |
| Products per master (outer) case |
1 pc(s) |
