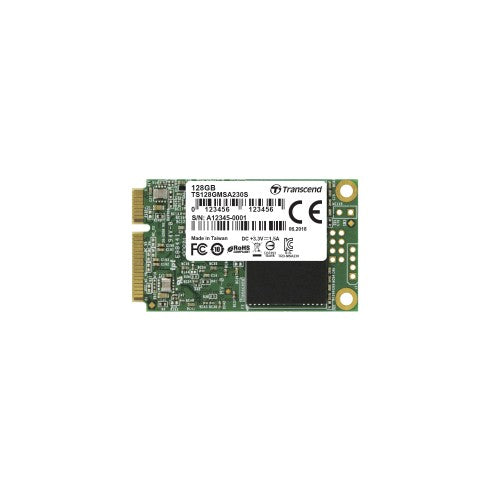

Transcend MSA230S, 128GB, mSATA SSD 230S, SATA III 6Gb/s, 550/400MB/s
Key Features
- 3D NAND flash memory
- DDR3 DRAM cache
- Advanced Global Wear-leveling and Block management for reliability
- Built-in LDPC ECC (Error Correction Code) functionality
- Supports Advanced Garbage Collection, S.M.A.R.T. function, and Security Command
- Supports TRIM and NCQ commands
Description
Transcend's mSATA SSD 230S uses the SATA III 6Gb/s interface and a powerful controller, delivering blazing-fast performance, long-term reliability, and high cost-effectiveness. The compact mSATA form factor is just one-eighth the size of a standard 2.5" SSD, making it perfect for use in space-constricted portable devices such as Ultrabooks, tablet PCs, and slim servers.
Specifications
| Hard drive |
|---|
| SSD capacity |
128 GB |
| Memory type |
3D NAND |
| Performance |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| Interface |
Serial ATA III |
| Component for |
PC/Laptop |
| Low-density parity-check (LDPC) |
Yes |
| DevSlp (device sleep) support |
Yes |
| Active garbage collection |
Yes |
| TBW rating |
80 |
| SSD capacity |
128 GB |
| S.M.A.R.T. support |
Yes |
| Read speed |
550 MB/s |
| TRIM support |
Yes |
| RAID support |
Yes |
| Write speed |
400 MB/s |
| ECC |
Yes |
| Memory type |
3D NAND |
| Random write (4KB) |
70000 IOPS |
| Random read (4KB) |
55000 IOPS |
| Native Command Queuing (NCQ) |
Yes |
| Mean time between failures (MTBF) |
2000000 h |
| Data transfer rate |
6 Gbit/s |
| Data transmission |
|---|
| Read speed |
550 MB/s |
| Write speed |
400 MB/s |
| Random write (4KB) |
70000 IOPS |
| Random read (4KB) |
55000 IOPS |
| Data transfer rate |
6 Gbit/s |
| Endurance |
|---|
| Mean time between failures (MTBF) |
2000000 h |
| Features |
|---|
| Interface |
Serial ATA III |
| Component for |
PC/Laptop |
| Low-density parity-check (LDPC) |
Yes |
| DevSlp (device sleep) support |
Yes |
| Active garbage collection |
Yes |
| TBW rating |
80 |
| SSD capacity |
128 GB |
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| S.M.A.R.T. support |
Yes |
| Read speed |
550 MB/s |
| TRIM support |
Yes |
| RAID support |
Yes |
| Write speed |
400 MB/s |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| ECC |
Yes |
| Memory type |
3D NAND |
| Random write (4KB) |
70000 IOPS |
| Random read (4KB) |
55000 IOPS |
| Native Command Queuing (NCQ) |
Yes |
| Mean time between failures (MTBF) |
2000000 h |
| Data transfer rate |
6 Gbit/s |
| Certification |
CE/FCC/BSMI/KC/RCM |
| SSD form factor |
mSATA |
| Harmonized System (HS) code |
84717070 |
| Power |
|---|
| Operating voltage |
3.3 V |
| Certificates |
|---|
| Certification |
CE/FCC/BSMI/KC/RCM |
| Design |
|---|
| Component for |
PC/Laptop |
| Certification |
CE/FCC/BSMI/KC/RCM |
| SSD form factor |
mSATA |
| Weight & dimensions |
|---|
| Width |
1.18" (29.9 mm) |
| Weight |
0.317 oz (9 g) |
| Height |
2" (50.8 mm) |
| Depth |
0.191" (4.85 mm) |
| System requirements |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 70 °C |
| Technical details |
|---|
| Interface |
Serial ATA III |
| S.M.A.R.T. support |
Yes |
| Operating temperature (T-T) |
0 - 70 °C |
| TRIM support |
Yes |
| RAID support |
Yes |
| ECC |
Yes |
| Native Command Queuing (NCQ) |
Yes |
| SSD form factor |
mSATA |
| Software |
|---|
| Windows operating systems supported |
Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported |
No |
| Linux operating systems supported |
Kernel 2.6.31 |
| Logistics data |
|---|
| Harmonized System (HS) code |
84717070 |
