Description
Description

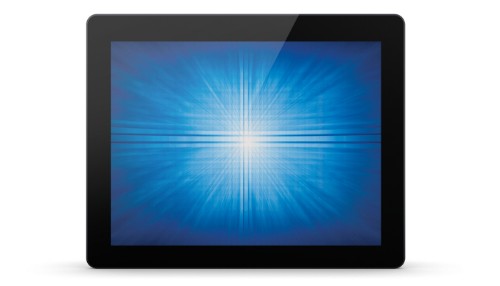

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission—for accurate touch responses and vivid images. Instantly grabbing and holding users’ attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Specifications
| Display | |
|---|---|
| LED backlight | Yes |
| Display number of colours | 16.2 million colors |
| Touchscreen | Yes |
| Display technology | LCD |
| Display diagonal | 15" |
| Display resolution | 1024 x 768 pixels |
| Display brightness | 220 cd/m² |
| Response time | 16 ms |
| Contrast ratio (typical) | 700:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 140° |
| Vertical scan range | 50 - 75 Hz |
| Horizontal scan range | 30 - 60 kHz |
| Touchscreen technology | Surface acoustic wave |
| Ports & interfaces | |
| DisplayPorts quantity | 1 |
| HDMI ports quantity | 1 |
| Design | |
| Product colour | Black |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Wall mountable | Yes |
| Performance | |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Power | |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 12.5 W |
| Packaging data | |
| Package width | 17.1" (434 mm) |
| Package depth | 6.89" (175 mm) |
| Package height | 14.8" (375 mm) |
| Package weight | 10.4 lbs (4.7 kg) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 95% |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | DC |
| Depth (without stand) | 1.4" (35.6 mm) |
| Weight (without stand) | 6.39 lbs (2.9 kg) |
| Height (without stand) | 11.2" (284.9 mm) |
| Full HD | No |
| Display viewable area (HxV) | 12 x 8.98" (304.1 x 228.1 mm) |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
| Features | |
| Harmonized System (HS) code | 85285210 |
| Wall mountable | Yes |
| Other features | |
| Power supply type | DC |
| Depth (without stand) | 1.4" (35.6 mm) |
| Weight (without stand) | 6.39 lbs (2.9 kg) |
| Height (without stand) | 11.2" (284.9 mm) |
| Display viewable area (HxV) | 12 x 8.98" (304.1 x 228.1 mm) |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD |
| Digital vertical frequency | 50 - 75 Hz |
| Digital horizontal frequency | 30 - 60 kHz |
| Built-in camera | No |
| Backlight type | LED |
| Aspect ratio | 4:3 |
