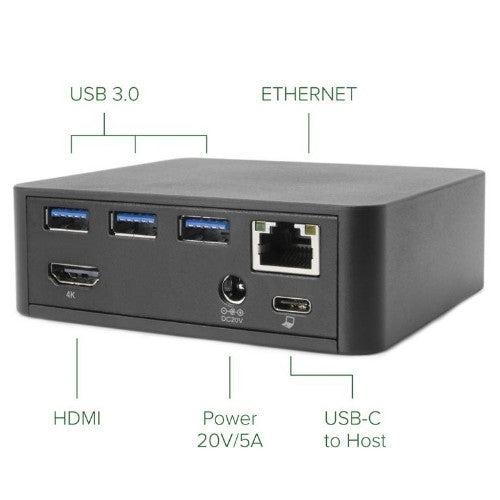

85 W, VESA Mount, 1x 3.5mm Audio Jack (TRRS) (Headphone and Microphone), 4 x USB 3.0 Ports, HDMI 4K 30Hz
Key Features
- POWERFUL USB-C DOCK—Power up your productivity with a single 4K HDMI output (supports 4K 30Hz, 2560x1600 and lower at 60Hz), Ethernet, audio input/output, and four additional USB ports while providing up to 85W of power to charge your attached USB-C or Thunderbolt 3 system

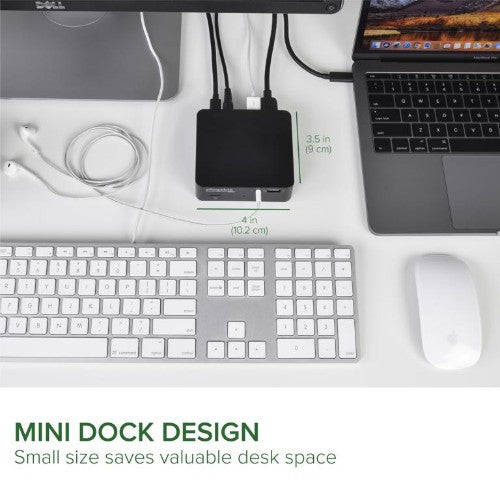

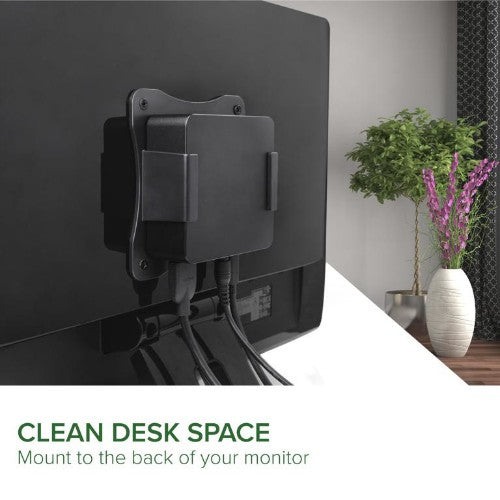

- SMALL-SCALE DESIGN—This USB C docking station offers a sleek and minimal form factor which means saving valuable desk space and avoiding a clutter of electronics and cables. Includes a VESA mount to tuck the dock behind a monitor for an even lower profile at your workstation
- 4K PERFORMANCE—With VESA DisplayPort Alternate Mode over USB-C (Alt Mode), the dock establishes a direct pipeline to your host graphics processor. Enjoy native-level display performances up to the host system's GPU capabilities
- COMPATIBILITY—Requires compatible USB-C port supporting both video and charging or Thunderbolt 3 system (USB-C Chromebooks, Surface Pro 7, Surface Laptop 3, HP Spectre, Dell XPS). Not compatible with legacy USB 3.0 systems. Not all USB-C ports and systems support Power Delivery or Alt Mode; please see our website for compatibility tables. DisplayPort monitors are not supported
Description

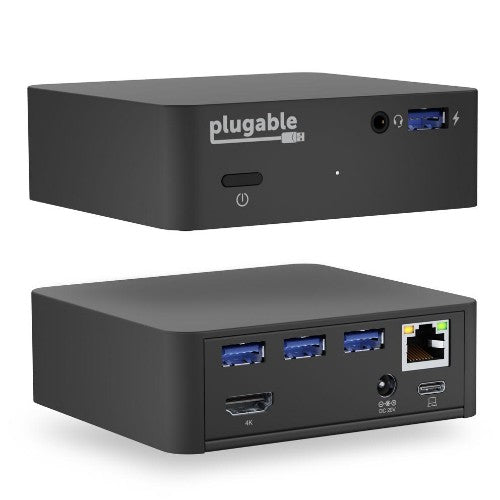

With its diminutive size and support for 85W of laptop charging (Power Delivery), the Plugable USB-C Mini Docking Station (UD-CAM) remains one of Plugable's smallest yet powerful USB-C docks available.
Plugable is an industry leader in Docking Station products, and this smaller form-factor dock should not be underestimated. Utilizing innovations introduced with USB 3.1, this dock is one of the first to use "Alternate Mode" from the USB-C specifications for one of the display outputs.
This dock supports USB Power Delivery, enabling the dock to charge a laptop, 2-in-1, or Windows tablet connected to it (up to 85W).
Note: Please read the information below for details regarding display output types and system requirements for the best compatibility, even with newer systems. USB-C or Thunderbolt 3 system with support for USB Alt Mode video output and/or PD charging is required for this docking station; not all systems or USB-C ports support these features. The dock will not work properly if adapted to USB 3.0 to connect to the computer or tablet.
When attached to a fully compatible USB-C or Thunderbolt 3 system, the UD-CAM supports Windows 11, 10, 8.x, and 7, macOS, and Chrome OS.
Hardware Compatibility NotesUSB-C is a new standard with much versatility. As a result, compatibility information is complex. Some USB-C systems support Alt Mode video output, while others do not. Some can be powered and charged through USB PD, while others do not. It is very important to check the compatibility of your device before purchase.
Please see the Compatibility tab that contains detailed compatibility notes for a variety of laptops and tablets that are updated regularly.
Specifications
| Ports & interfaces |
|---|
| Combo headphone/mic port |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
1 |
| Headphone connectivity |
3.5 mm |
| Host interface |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| Microphone in |
No |
| Connectivity technology |
Docking |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
1000 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Copper ethernet cabling technology |
1000BASE-T |
| Performance |
|---|
| Maximum digital resolution |
3840 x 2160 pixels |
| Number of displays supported |
1 |
| Product colour |
Black |
| Card reader integrated |
No |
| Data transfer rate |
5 Gbit/s |
| Charging function |
Yes |
| HD type |
4K Ultra HD |
| VESA mounting |
Yes |
| Maximum refresh rate |
30 Hz |
| Technical details |
|---|
| Product colour |
Black |
| Data transfer rate |
5 Gbit/s |
| Charging function |
Yes |
| Cable length |
39.4" (1 m) |
| Storage |
|---|
| Card reader integrated |
No |
| Power |
|---|
| Power supply |
80 W |
| Weight & dimensions |
|---|
| Width |
4.02" (102 mm) |
| Depth |
3.5" (89 mm) |
| Height |
1.26" (32 mm) |
| Design |
|---|
| Product colour |
Black |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Quick start guide |
Yes |
| Cables included |
USB Type-C to USB Type-C |
| AC adapter included |
Yes |
| Mounting brackets included |
Yes |
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Cable length |
39.4" (1 m) |
