Switched, 8 x C13 Out
Key Features
- Real-Time Local/Remote Monitoring and Switching
- User Configurable Color LCD
- Firmware Upgrade via USB
- Sequential Outlet ON/OFF Control
- Digital Real-time Load Display
Description

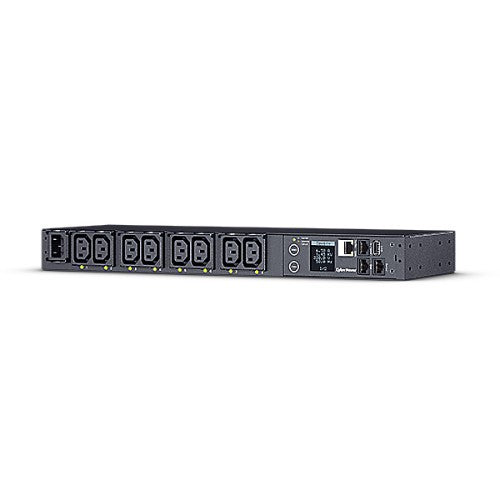

CyberPower PDU41004 Switched series power distribution unit provides output from a UPS unit, generator, or utility power to multiple connected devices in datacenter environments. The unit supports remote individual outlet control over the network, allowing administrators to turn on/off connected devices from any location. Administrators can further determine the power sequence used to turn individual outlets on or off.
The power management web interface offers real-time remote monitoring of the PDU vitals of the outlets of networked clients. Event logging via a web browser or network connection allows users to review a history of power conditions. When specified power events occur, automatic event notifications will be sent via email, SMS text, or SNMP trap to designated users so that they can take immediate actions. The featured RJ45 port enables the connection of the optional environmental sensor (ENVIROSENSOR), which can provide real-time temperature and humidity monitoring in an IT center.
The product is also certified to be interoperable and compatible with Cisco Compatible™ network environments, which helps to achieve the best energy performance possible in the datacenter scenario.
Specifications
| Design |
|---|
| Type |
Single-phase |
| PDU types |
Managed, Switched |
| Mounting |
Horizontal |
| Display |
LCD |
| Product colour |
Black |
| Certification |
FCC Class A, UL60950, UL62368, EN 55032 Class A |
| Rack capacity |
1U |
| Housing material |
Steel |
| Ports & interfaces |
|---|
| USB ports quantity |
1 |
| AC outlets quantity |
8 AC outlet(s) |
| AC outlet types |
C13 coupler |
| Power plug |
C14 coupler |
| Serial ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
4 |
| Features |
|---|
| Cable length |
120.1" (3.05 m) |
| LED indicators |
Link, Status |
| Certification |
FCC Class A, UL60950, UL62368, EN 55032 Class A |
| Daisy chain |
Yes |
| Security algorithms |
802.1x RADIUS, HTTPS, SSH, SSL/TLS |
| Bundled software |
PowerPanel Business, PowerPanel Enterprise |
| Management features |
|---|
| Supported network protocols |
IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog |
| Firmware upgradeable via |
USB |
| Firmware upgradeable |
Yes |
| Ergonomics |
|---|
| Cable length |
120.1" (3.05 m) |
| LED indicators |
Link, Status |
| Display |
LCD |
| Power |
|---|
| Nominal input voltage |
100 - 240 V |
| Nominal output voltage |
100 - 240 V |
| Maximum current |
12 A |
| AC input frequency |
50 / 60 Hz |
| Certificates |
|---|
| Certification |
FCC Class A, UL60950, UL62368, EN 55032 Class A |
| Compliance certificates |
RoHS |
| Sustainability |
|---|
| Sustainability compliance |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 55 °C |
| Storage temperature (T-T) |
-15 - 60 °C |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating relative humidity (H-H) |
0 - 95% |
| Operating temperature (T-T) |
32 - 140 °F |
| Operating altitude |
0 - 137795.3" (0 - 3500 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Weight & dimensions |
|---|
| Weight |
4.63 lbs (2.1 kg) |
| Width |
17" (433 mm) |
| Depth |
4.41" (112 mm) |
| Height |
1.73" (44 mm) |
| Package width |
19.7" (500 mm) |
| Package depth |
9.84" (250 mm) |
| Package height |
2.56" (65 mm) |
| Package weight |
8.6 lbs (3.9 kg) |
| Packaging content |
|---|
| Bundled software |
PowerPanel Business, PowerPanel Enterprise |
| Packaging data |
|---|
| Package width |
19.7" (500 mm) |
| Package depth |
9.84" (250 mm) |
| Package height |
2.56" (65 mm) |
| Package weight |
8.6 lbs (3.9 kg) |
| Technical details |
|---|
| Sustainability compliance |
Yes |
| Compliance certificates |
RoHS |
| Security |
|---|
| Security algorithms |
802.1x RADIUS, HTTPS, SSH, SSL/TLS |
