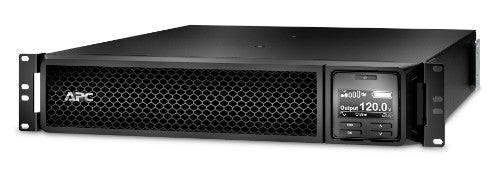

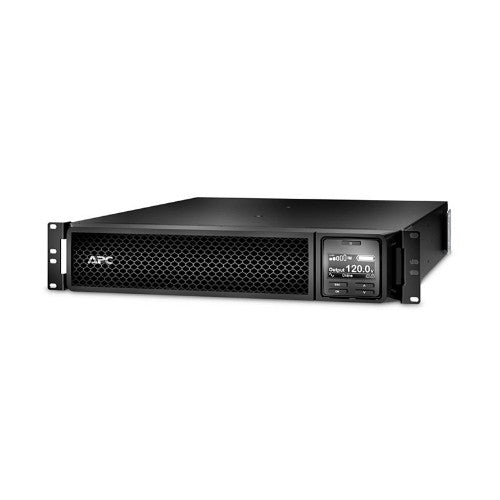

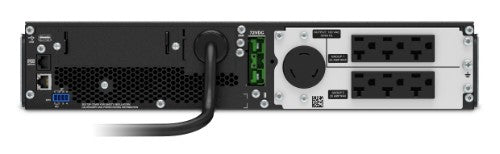

SMART-UPS SRT, 2200VA ,120V, 1.8kW, 2.2kVA, Double Conversion Online, Sine wave, Built-in Bypass
Description
FeaturesHigh density, double-conversion on-line power protection with scalable runtime
Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, USB cable, Warranty card
Avoids costly power problems by keeping your IT equipment and data protected and available.Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Low operating and maintenance costs with proven reliability and intelligent battery management.Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Save time with easy and convenient remote/network accessibility.Network manageable via serial, USB or Ethernet. Includes Powerchute® Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Peace of mind that comes with full equipment compatibility and reliability of a leader.Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
Specifications
| Power |
|---|
| Output frequency |
50/60 Hz |
| Output power |
1800 W |
| Surge energy rating |
340 J |
| Crest factor |
3:1 |
| Output power capacity |
2.2 kVA |
| Input frequency |
40/70 Hz |
| Ports & interfaces |
|---|
| Cable length |
72" (1.83 m) |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RJ-45 |
| SmartSlot |
Yes |
| AC outlet types |
NEMA 5–20R, NEMA L5-20R |
| Power plug |
NEMA 5-20R |
| Performance |
|---|
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| LED indicators |
Yes |
| Audible alarm(s) |
Yes |
| Features |
|---|
| Output frequency |
50/60 Hz |
| UPS topology |
Double-conversion (Online) |
| Waveform |
Sine |
| Output power |
1800 W |
| Surge energy rating |
340 J |
| Crest factor |
3:1 |
| Audible alarm(s) |
Yes |
| Output power capacity |
2.2 kVA |
| Input frequency |
40/70 Hz |
| Battery |
|---|
| Battery life (max) |
5 year(s) |
| Number of batteries supported |
1 |
| Battery capacity |
306 Ah |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Replacement battery cartridge |
APCRBC141 |
| Design |
|---|
| International Protection (IP) code |
IP20 |
| Rack capacity |
2U |
| Form factor |
Rackmount |
| LED indicators |
Yes |
| Product colour |
Black |
| Certification |
CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, TAA compliance, UL 1778 |
| Cable length |
72" (1.83 m) |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 50 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 118110.2" (0 - 3000 m) |
| Non-operating altitude |
0 - 590551.2" (0 - 15000 m) |
| Technical details |
|---|
| Output frequency |
50/60 Hz |
| Compliance certificates |
RoHS |
| Weight & dimensions |
|---|
| Package width |
23.6" (599 mm) |
| Package depth |
31.9" (810 mm) |
| Package height |
9.69" (246 mm) |
| Weight |
54.9 lbs (24.9 kg) |
| Width |
17" (432 mm) |
| Package weight |
75 lbs (34 kg) |
| Height |
3.35" (85 mm) |
| Depth |
23" (584 mm) |
| Packaging data |
|---|
| Rack mount kit |
Yes |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Cables included |
USB cable |
| Package width |
23.6" (599 mm) |
| Package depth |
31.9" (810 mm) |
| Package height |
9.69" (246 mm) |
| Package weight |
75 lbs (34 kg) |
| Certificates |
|---|
| Certification |
CSA C22.2 No.107.3-05, FCC Part 15 Class A, OSHPD, TAA compliance, UL 1778 |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Quick installation guide |
Yes |
| Manual |
Yes |
| Cables included |
USB cable |
