StarTech.com 2 Port DisplayPort KVM Switch - 4K 60Hz - Single Display - Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 3.0 Hub & Audio - Dell HP Apple Lenovo - TAA Compliant (SV231DPU34K)
Key Features
- IMPROVE EFFICIENCY: 2 Port DisplayPort KVM Switch with hotkey and manual switching to access 2 computers with DP video and USB 3.0 hub; works with major brands including Dell, HP, and Lenovo
- 4K VIDEO QUALITY: DisplayPort KVM switch supports up to 4K at 60Hz on one large monitor
- Supports MST Passthrough for multiple displays
- TECH SPECS: 2 Port DP 1.2 KVM
- 3840 x 2160 60Hz
- 4K UHD
Description
KVM with USB | TAA Compliant | USB 3.0 Hub | DisplayPort 1.2 | Digital & Analog Audio
This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.
4K 60Hz Picture and Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives one large monitor at the full 4K resolution or, using an MST adapter, can drive various DisplayPort multi-display setups totaling 4Kif you need to maximize viewing space. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.
Integrated USB Hub
The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.
Windows, Mac & Linux Compatible
While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.
Easy to Operate

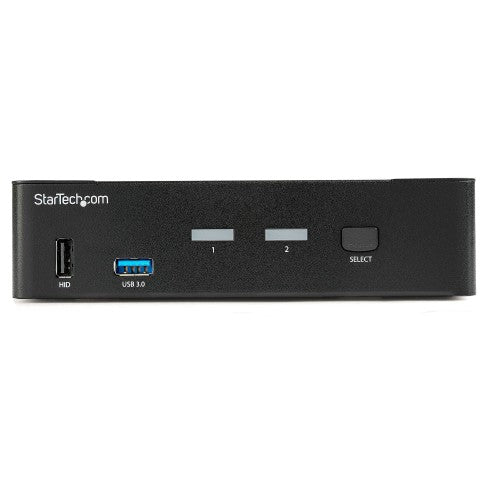

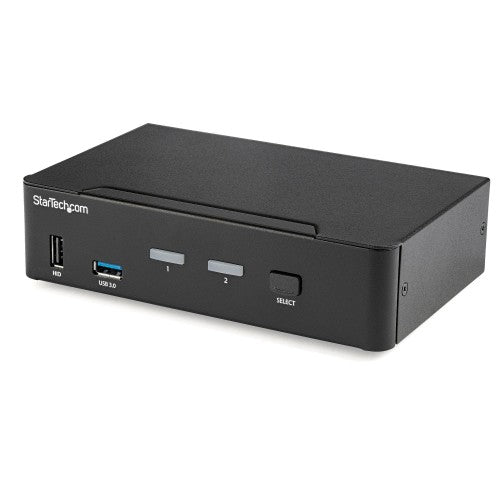

The front-panel push buttons make it easy to switch between systems and activate the auto scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice, and monitors. This 2-port DisplayPort KVM switch is backed by a 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
Specifications

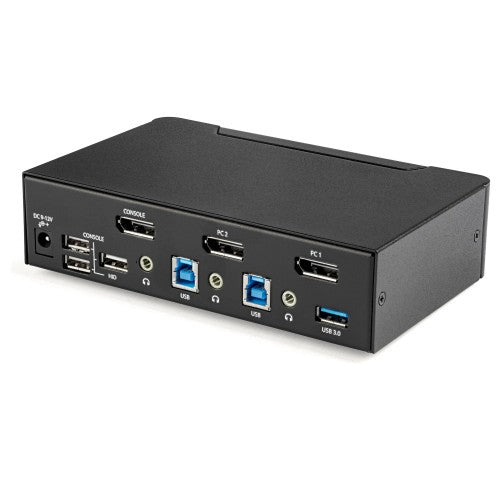

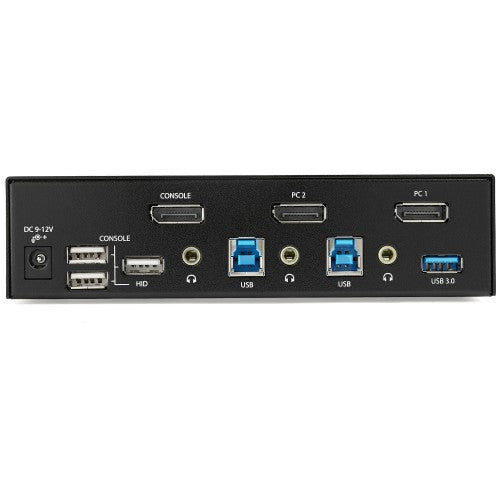

| Ports & interfaces |
|---|
| Console USB ports quantity |
6 |
| Console ports |
3.5mm headphone, DisplayPort, USB A |
| USB connector type |
USB Type-A, USB Type-B |
| DisplayPorts quantity |
3 |
| DisplayPort version |
1.2 |
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
DisplayPort |
| Audio connections |
Yes |
| Headphone outputs |
3 |
| DC-in jack |
Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity |
2 |
| HDCP |
Yes |
| Performance |
|---|
| Daisy chain |
No |
| HDCP |
Yes |
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Number of users |
1 user(s) |
| Audio channels |
2.0 |
| Technical details |
|---|
| Product colour |
Black |
| On Screen Display (OSD) |
No |
| Number of users |
1 user(s) |
| LED indicators |
Yes |
| Hot keys |
Yes |
| IP control |
No |
| Compliance certificates |
RoHS |
| Design |
|---|
| Mean time between failures (MTBF) |
60000 h |
| Product colour |
Black |
| LED indicators |
Yes |
| Hot keys |
Yes |
| Certification |
CE, FCC, TAA, REACH |
| Housing material |
Steel |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Input current |
0.6 A |
| Output current |
1.5 A |
| Power plug type |
Type M |
| Compatible power plug types |
AU, EU, JP, UK, US |
| Output voltage |
12 V |
| Power consumption (typical) |
18 W |
| External power adapter |
Yes |
| Input voltage |
100 - 240 V |
| Video |
|---|
| HD type |
4K Ultra HD |
| Maximum resolution |
3840 x 2160 pixels |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-10 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |

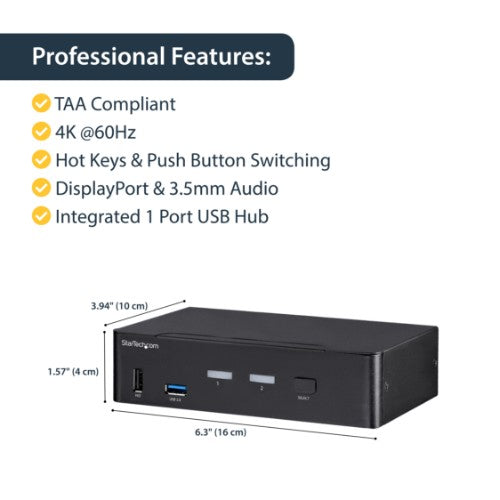

| Weight & dimensions |
|---|
| Width |
6.3" (160 mm) |
| Depth |
3.94" (100 mm) |
| Height |
1.57" (40 mm) |
| Weight |
2.43 lbs (1.1 kg) |
| Package width |
7.44" (189 mm) |
| Package depth |
9.37" (238 mm) |
| Package height |
3.58" (91 mm) |
| Packaging data |
|---|
| Package width |
7.44" (189 mm) |
| Package depth |
9.37" (238 mm) |
| Package height |
3.58" (91 mm) |

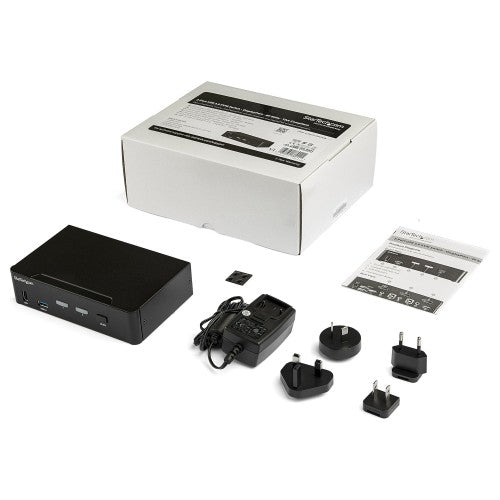

| Packaging content |
|---|
| Rubber feet |
Yes |
| Quick installation guide |
Yes |
| AC adapter included |
Yes |
| Certificates |
|---|
| Certification |
CE, FCC, TAA, REACH |
| Other features |
|---|
| IP control |
No |
| Hot keys |
Yes |
| Logistics data |
|---|
| Master (outer) case width |
12.5" (318 mm) |
| Master (outer) case length |
15.3" (389 mm) |
| Master (outer) case height |
11.2" (285 mm) |
| Products per master (outer) case |
6 pc(s) |
| Harmonized System (HS) code |
85176200 |
