Mini DisplayPort (Thunderbolt 2) to HDMI Adapter - Driverless (Supports Mac, Windows, Linux, and 4K Displays up to 3840x2160@30Hz, Passive)
Key Features
- MINI DP TO HDMI—Converts mini DisplayPort (Thunderbolt 2 or mDP) output on your Apple laptop or PC to a HDMI output to enable connection to a HDMI monitor
- SUPPORTED RESOLUTIONS—Supports HDMI displays up to 3840x2160 @ 30Hz (4K) resolution. 2560x1440, 1080p and below support 60Hz refresh rate
- SIMPLE INSTALLATION—No installation software or drivers required; just plug and play

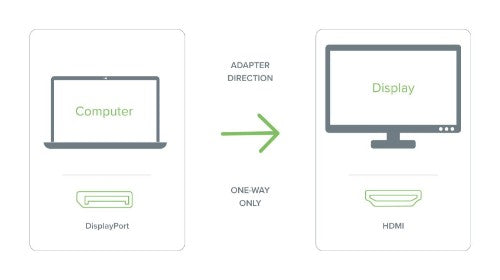

- COMPATIBILITY—Passive adapter is compatible with Thunderbolt 2 or Dual-Mode Mini DisplayPort (DP++) output ports only. Not a bidirectional adapter. Please note that the host system's graphics processor and the connected HDMI display need to support the desired resolution
Description
Plugable's Mini DisplayPort to HDMI passive adapter (MDPM-HDMIF) allows you to connect from a Thunderbolt 2 or Mini Dual-Mode DisplayPort (DP++) output on your laptop, desktop, or tablet to virtually any HDMI-enabled display.
Passive adapters rely on the DisplayPort output of the host system to provide the necessary signaling to support an HDMI display.
The adapter supports resolutions up to 4K 30Hz (3840x2160 @ 30Hz). All resolutions below 4K—such as 2560x1440 and 1080p—are supported at 60Hz refresh rate.
Specifications
| Features |
|---|
| Country of origin |
China |
| HDMI version |
1.4 |
| DisplayPort version |
1.2 |
| Product colour |
White |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
HDMI |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Maximum resolution |
3840 x 2160 pixels |
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1600 x 900, 1920 x 1080 (HD 1080), 2560 x 1440, 3440 x 1440, 3840 x 1600, 3840 x 2160 |
| Supported video modes |
480p, 720p, 1080p, 2160p |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| Refresh rate at maximum resolution |
30 Hz |
| Technical details |
|---|
| Country of origin |
China |
| Packaging data |
|---|
| Package type |
Polybag |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Package type |
Polybag |
| Quantity per pack |
1 pc(s) |
