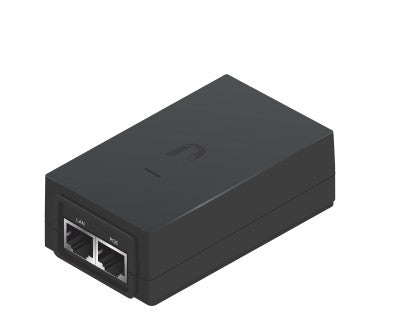

POE-24-AF5X - 90-260VAC / 47-63 Hz
Description
Ubiquiti Networks offers Power over Ethernet (PoE) Adapters to power a variety of Ubiquiti products. The PoE Adapters are compatible with most Ubiquiti PoE devices, including:
- airFiber®
- airMAX®
- EdgeMAX®
- mFi®
- UniFi® AP
- UniFi Video / airVision®
ProtectionUbiquiti PoE Adapters provide a variety of features to help protect your PoE devices:
- Surge protection
- Clamping protection
- Maximum surge discharge
- Peak pulse current
- AC cable with earth ground
Specifications
| Network |
|---|
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Power over Ethernet (PoE) voltage |
24 V |
| Features |
|---|
| Product colour |
Black |
| Power |
|---|
| Output current |
1 A |
| Power over Ethernet (PoE) voltage |
24 V |
| Input voltage |
90 - 260 V |
| Input frequency |
47 - 63 Hz |
| Input current |
0.4/0.6 A |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-30 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
35 - 95% |
| Weight & dimensions |
|---|
| Weight |
5.59 oz (158.5 g) |
| Dimensions (WxDxH) |
3.46 x 2.24 x 1.3" (88 x 57 x 33 mm) |
| Technical details |
|---|
| Input voltage |
90 - 260 V |
| Input frequency |
47 - 63 Hz |
| Input current |
0.4/0.6 A |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Ethernet interface type |
Gigabit Ethernet |
| Harmonized System (HS) code |
85044095 |
| Logistics data |
|---|
| Harmonized System (HS) code |
85044095 |
