Description
Description

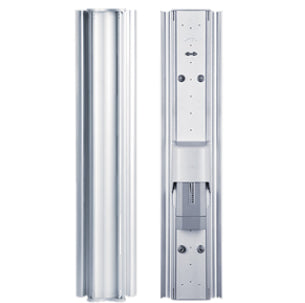

Advanced Carrier-Class PtMP Basestation AntennaIntroducing the airMAX Titanium Sector, which continues the evolution of Ubiquiti’s best-in-class sector antennas. Advanced RF isolation and variable beamwidth configuration put the Titanium Sector at the forefront of sector antenna technology
Reduced Co-Location Interference
Drawing on Ubiquiti’s depth of electrical and mechanical engineering expertise, Ubiquiti has developed the airMAX Titanium Sector to be highly resistant to noise interference in co‑location deployments.
Adjustable Beamwidth Configuration
Having adjustable beamwidth options enhances scalability and streamlines inventory. The airMAX Titanium Sector may be custom configured for any deployment requiring a 60 ̊, 90 ̊, or 120 ̊ sector.
Antenna gain changes according to the configured beamwidth.
Increased Performance
The airMAX Titanium Sector was specifically engineered for optimal performance when paired with a Rocket M Titanium.
- 20% increase in performance with PtMP networks
- Up to 90% performance improvement in a co‑location environment
- Increased durability in harsh weather
Easily Mount and Protect Your Rocket
The Titanium Sector has an integrated Rocket mount that allows you to mount the Rocket without the use of any tools. The custom‑designed Protective Shroud helps to shield your Rocket from the elements.
Specifications
| Performance | |
|---|---|
| Antenna gain level (max) | 17 dBi |
| Frequency band | 2.3 - 2.6 GHz |
| Vertical beam width (2.4 GHz) | 4° |
| Vertical beam width | 60° |
| Horizontal beam width (2.4 GHz) | 4° |
| Horizontal beam width | 120° |
| Features | |
| Connector gender | Male |
| Antenna type | Sector antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Wall |
| Product colour | White |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 17 dBi |
| Frequency band | 2.3 - 2.6 GHz |
| Vertical beam width (2.4 GHz) | 4° |
| Vertical beam width | 60° |
| Horizontal beam width (2.4 GHz) | 4° |
| Horizontal beam width | 120° |
| Certification | EN 302 326 DN2 CE, FCC, IC |
| Certificates | |
| Certification | EN 302 326 DN2 CE, FCC, IC |
| Weight & dimensions | |
| Weight | 14.1 lbs (6.4 kg) |
| Width | 30.4" (773 mm) |
| Depth | 14.6" (372 mm) |
| Height | 4.72" (120 mm) |
| Technical details | |
| Antenna gain level (max) | 17 dBi |
| Frequency band | 2.3 - 2.6 GHz |
| Antenna type | Sector antenna |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Vertical beam width (2.4 GHz) | 4° |
| Vertical beam width | 60° |
| Purpose | Outdoor |
| Polarization | Dual polarization |
| Mounting | Wall |
| Horizontal beam width (2.4 GHz) | 4° |
| Horizontal beam width | 120° |
| Antenna connector type | RP-SMA |
| Colour | |
| Product colour | White |
| Packaging content | |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
| Quantity per pack | 1 pc(s) |
