Mini DisplayPort (Thunderbolt 2) to VGA Adapter - Supports Mini-DisplayPort Equipped Mac, Windows, Linux Systems to VGA Displays up to 1920x1080, Active - Driverless
Key Features
- MINI DP TO VGA—Converts mini DisplayPort (Thunderbolt 2) output on your Apple or Windows laptop or Desktop to a VGA output to enable connection to a VGA monitor
- SUPPORTED RESOLUTIONS—Supports VGA displays up to 1920x1200 resolution including 1920x1080 (1080P) at 60Hz refresh rate
- SIMPLE INSTALLATION—No installation software or drivers required; just plug and play

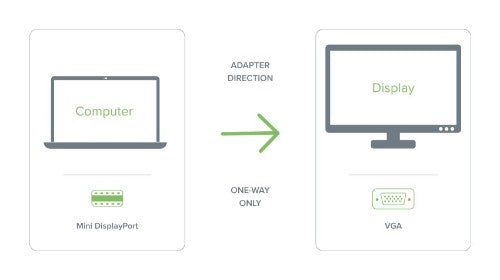

- COMPATIBILITY—Passive adapter is compatible with Thunderbolt 2 or Mini DisplayPort output ports. Not a bidirectional adapter. Please note that the host system's graphics processor and the connected VGA display need to support the desired resolution
Description

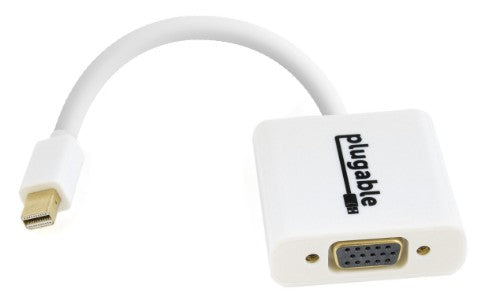

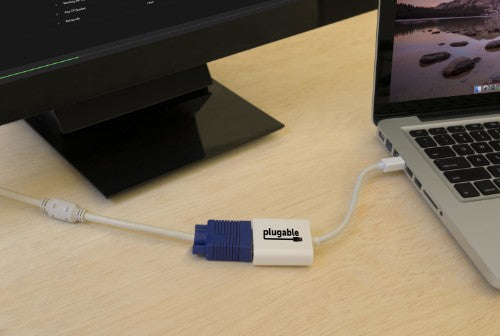

Plugable's Mini DisplayPort to VGA passive adapter (MDPM-VGAF) allows you to connect from a Thunderbolt 2 or Mini Dual-Mode DisplayPort (DP++) output on your laptop, desktop, or tablet to virtually any VGA-enabled display.
Passive adapters rely on the DisplayPort output of the host system to provide the necessary signaling to support an VGA display.
The adapter supports resolutions up to 1920x1200 @ 60Hz refresh rate.
Specifications
| Features |
|---|
| Country of origin |
China |
| DisplayPort version |
1.2 |
| Product colour |
White |
| Connector 1 |
Mini DisplayPort |
| Connector 2 |
VGA (D-Sub) |
| Connector 1 gender |
Male |
| Connector 2 gender |
Female |
| Maximum resolution |
1920 x 1200 pixels |
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (XGA+), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1600 x 900, 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Connector 1 form factor |
Straight |
| Connector 2 form factor |
Straight |
| Maximum refresh rate |
60 Hz |
| Refresh rate at maximum resolution |
60 Hz |
| Technical details |
|---|
| Country of origin |
China |
| Packaging data |
|---|
| Package type |

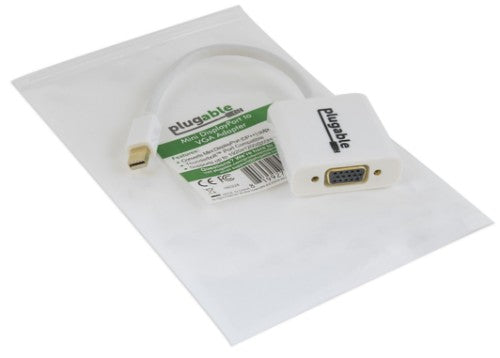

Polybag |
| Quantity per pack |
1 pc(s) |
| Packaging content |
|---|
| Package type |
Polybag |
| Quantity per pack |
1 pc(s) |
