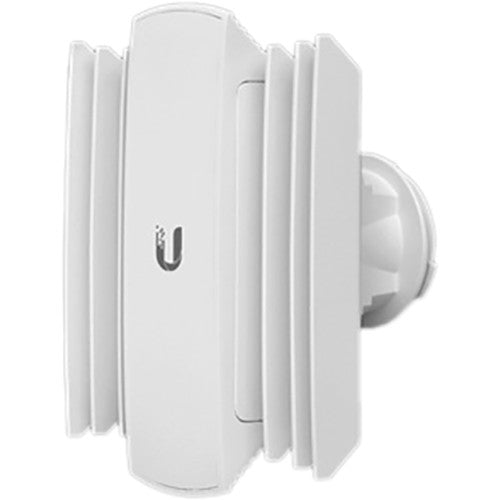

5.15 ‑ 5.85 GHz, 13 dBi, Dual-Linear, 90°/90°, 920 g
Description
5 GHz Beamwidth Horn AntennaWith a range of different beam widths, the isolation antennas are interchangeable and feature high-performance beam patterns ideal for a range of deployment needs. Used with the airFiber® LTU and airMAX® radios, these antennas deliver superb co‐location performance without sacrificing gain.
Modular DesignThe isolation antennas are interchangeable and feature high-performance beam patterns for a range of demanding deployment needs. Combined with the PrismStation 5AC or airFiber LTU radio, the system gets maximum gain out of the smallest footprint.
Asymmetrical horn antennas60° and 90° versions have naturally attenuated side lobes and extremely low back radiation. They offer the best front-to-back ratio in the industry and the lowest side lobe radiation. Asymmetrical horn antennas are ideal for cluster sector installations with high co-location requirements.
Specifications
| Performance |
|---|
| Antenna gain level (max) |
13 dBi |
| Frequency band |
5.15 - 5.85 GHz |
| Vertical beam width |
90° |
| Horizontal beam width |
90° |
| Features |
|---|
| Survival wind speed |
200 km/h |
| Isolation |
17 dB |
| Wind load |
46 |
| Antenna gain level (max) |
13 dBi |
| Frequency band |
5.15 - 5.85 GHz |
| Antenna type |
Horn antenna |
| Voltage Standing Wave Ratio (VSWR) |
2:1 |
| Vertical beam width |
90° |
| Polarization |
Dual polarization |
| Horizontal beam width |
90° |
| Product colour |
White |
| Technical details |
|---|
| Antenna gain level (max) |
13 dBi |
| Frequency band |
5.15 - 5.85 GHz |
| Antenna type |
Horn antenna |
| Voltage Standing Wave Ratio (VSWR) |
2:1 |
| Vertical beam width |
90° |
| Polarization |
Dual polarization |
| Horizontal beam width |
90° |
| Harmonized System (HS) code |
85177100 |
| Colour |
|---|
| Product colour |
White |
| Weight & dimensions |
|---|
| Weight |
32.5 oz (920 g) |
| Width |
5.99" (152.1 mm) |
| Depth |
4.46" (113.2 mm) |
| Height |
7.35" (186.8 mm) |
| Packaging content |
|---|
| Quantity per pack |
1 pc(s) |
| Logistics data |
|---|
| Quantity per pack |
1 pc(s) |
| Harmonized System (HS) code |
85177100 |
