Swingout Mount for Flat-Panels up to 300 lb./136 kg
Description

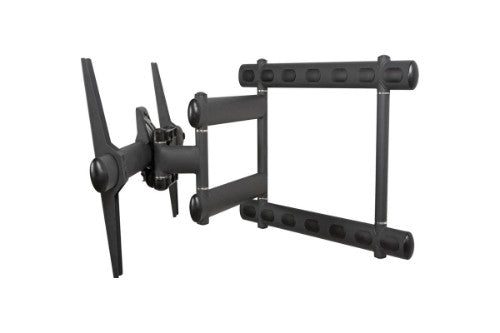

This full-articulation swingout mount for flat-panels up to 300 lb./136 kg. Typically fits displays larger than 40 in. or displays with a mounting pattern of 225 x 225mm to 985 x 665mm. The AM300-B extends 26 in. from the wall and allows up to 90º of swivel to both sides. The swingout arm can be pulled out from the wall and move to the left or right, while providing 10º of tilt. It can easily be moved back to its home position, at a depth of 3.97 in. from the wall.
- Patented Griplate™ (US Patent number 8,035,757 B2) supports flat-panel displays and holds the display tight on the mounting brackets
- Smooth tilt adjustment featuring Radial Glide™
- May be installed to swingout from left or right
- Wide range of movement with 90° of swivel for extra swingout
- Extends 4 - 26 in. from the wall
Specifications
| Mounting |
|---|
| Mounting type |
Wall |
| Minimum screen size |
37" |
| Minimum VESA mount |
8.86 x 8.86" (225 x 225 mm) |
| Maximum VESA mount |
38.8 x 26.2" (985 x 665 mm) |
| Maximum screen size |
68" |
| Maximum weight capacity |
300.7 lbs (136.4 kg) |
| Ergonomics |
|---|
| Tilt angle range |
-10 - 10° |
| Swivel angle |
90° |
| Technical details |
|---|
| Quantity |
1 |
| Product colour |
Black |
| Mounting type |
Wall |
| Design |
|---|
| Product colour |
Black |
| Weight & dimensions |
|---|
| Width |
39.9" (1013 mm) |
| Depth |
3.98" (101 mm) |
| Height |
27" (685 mm) |
| Weight |
60.2 lbs (27.3 kg) |
| Other features |
|---|
| Mounting type |
Wall |
| Quantity |
1 |
