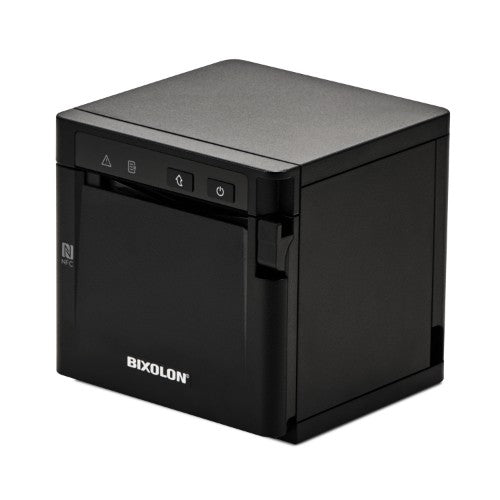

SRP-Q302, 3" mPOS Direct Thermal Printer, 203 dpi, USB V2.0 FS + Ethernet
Description
The SRP-Q300 is a 3” (80mm) Direct Thermal ultra compact receipt and ticket printer with flexible mPOS configuration capabilities. Sporting, front-exit printing, the SRP-Q300 is designed to free up counter space and compliment the latest mPOS systems. This cost-effective solution prints at speeds up to 220mm/sec with a print resolution 180dpi or 203dpi (SRP-Q302 model) to provide high quality texts, graphics, barcodes and QR codes.
Providing flexible printing from Android™, iOS™ and Window® mobile devices alongside supporting Auto Bluetooth and WLAN connection via NFC for Android Smart Devices. Ideal for initial printer setup and configuration with Android smart devices running on Android OS V3.1 or higher. Enabling user convenience throughout the printer setup, the BIXOLON Q300 Utility Android Utility Software application on the Google Store provides exclusive setup compatibility with the SRP-Q300.
Specifications
| Printing |
|---|
| Type |
POS printer |
| Print technology |
Direct thermal |
| Print speed |
220 mm/sec |
| Maximum resolution |
203 x 203 DPI |
| Performance |
|---|
| Type |
POS printer |
| Print technology |
Direct thermal |
| Print speed |
220 mm/sec |
| Maximum resolution |
203 x 203 DPI |
| Built-in barcodes |
1D, 2D |
| Paper handling |
|---|
| Supported paper width |
80 mm |
| Printing media thickness |
0.062 - 0.075 µm |
| Maximum roll diameter |
3.15" (8 cm) |
| Maximum printing width |
2.83" (7.2 cm) |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Print technology |
|---|
| Type |
POS printer |
| Print technology |
Direct thermal |
| Print speed |
220 mm/sec |
| Print quality |
|---|
| Maximum resolution |
203 x 203 DPI |
| Maximum printing width |
2.83" (7.2 cm) |
| Technical details |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Maximum printing width |
2.83" (7.2 cm) |
| Product colour |
Black |
| Built-in barcodes |
1D, 2D |
| Buffer size |
12 KB |
| Autocutter durability |
1.5 million cuts |
| Size (imperial) |
3" |
| Sustainability certificates |
ENERGY STAR |
| Harmonized System (HS) code |
84433210 |
| Features |
|---|
| Product colour |
Black |
| Built-in barcodes |
1D, 2D |
| Autocutter durability |
1.5 million cuts |
| Design |
|---|
| Product colour |
Black |
| Memory |
|---|
| Buffer size |
12 KB |
| Power |
|---|
| AC input voltage |
100-240 V |
| AC input frequency |
50-60 Hz |
| Power source type |
AC |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-20 - 60 °C |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
10 - 80% |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Weight & dimensions |
|---|
| Width |
5.04" (128 mm) |
| Depth |
4.92" (125 mm) |
| Height |
4.92" (125 mm) |
| Weight |
2.71 lbs (1.23 kg) |
| Software |
|---|
| Windows operating systems supported |
Yes |
| Linux operating systems supported |
Yes |
| Logistics data |
|---|
| Harmonized System (HS) code |
84433210 |
| Other features |
|---|
| Buffer size |
12 KB |
