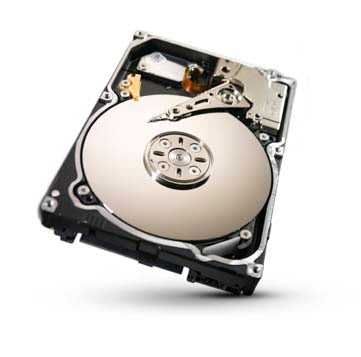

1 TB, 2.5", SAS, 64MB
Description
- Second generation of the first 2.5 inch, mainstream capacity, 15mm
z-height, nearline drive for space-constrained data centres
- Choose 6Gb/s SAS for data integrity, scalability and fast data access,
or SATA 6Gb/s for fast, economical Tier-2/nearline performance
- The industry’s most reliable 7,200 RPM drive, designed for 24×7
operation with an MTBF of 1.4M hours and an AFR of 0.62%
- Enterprise-class firmware and best-in-class rotational vibration
tolerance maximise system availability and performance
- Lowest operating power (under 6.4W) and enhanced PowerChoice™
options for additional power savings during slow or idling periods;
Workload Management™ technology helps systems to keep drives cool
- Self-Encrypting Drive (SED) option (AES-256) cuts IT drive retirement
costs while protecting data securely where it lives — on the drive1
- FIPS 140-2 Validated™ drives protect data classed as Sensitive but
- Unclassified and Protected1
Specifications
| Hard drive |
|---|
| Component for |
Server/workstation |
| HDD interface transfer rate |
6 Gbit/s |
| Write seek time |
9.5 ms |
| Read seek time |
8.5 ms |
| Average latency |
4.16 ms |
| Bytes per sector |
512 |
| Mean time between failures (MTBF) |
1400000 h |
| HDD speed |
7200 RPM |
| HDD size |
2.5" |
| HDD capacity |
1 TB |
| Features |
|---|
| Type |
HDD |
| Component for |
Server/workstation |
| HDD interface transfer rate |
6 Gbit/s |
| Interface |
SAS |
| Write seek time |
9.5 ms |
| Read seek time |
8.5 ms |
| Average latency |
4.16 ms |
| Bytes per sector |
512 |
| Mean time between failures (MTBF) |
1400000 h |
| HDD speed |
7200 RPM |
| HDD size |
2.5" |
| HDD capacity |
1 TB |
| Storage drive buffer size |
64 MB |
| Power |
|---|
| Power consumption (typical) |
6.4 W |
| Power consumption (idle) |
3.85 W |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 60 °C |
| Operating vibration |
0.5 G |
| Operating shock |
70 G |
| Non-operating vibration |
3 G |
| Non-operating shock |
400 G |
| Technical details |
|---|
| Quantity per pack |
1 pc(s) |
| Interface |
SAS |
| Mean time between failures (MTBF) |
1400000 h |
| Weight & dimensions |
|---|
| Width |
2.76" (70.1 mm) |
| Weight |
7.05 oz (200 g) |
| Height |
0.591" (15 mm) |
| Depth |
3.96" (100.5 mm) |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Other features |
|---|
| Interface |
SAS |
