17-32", 16kg, 100x1034x370mm, 3.15kg, Black
Description

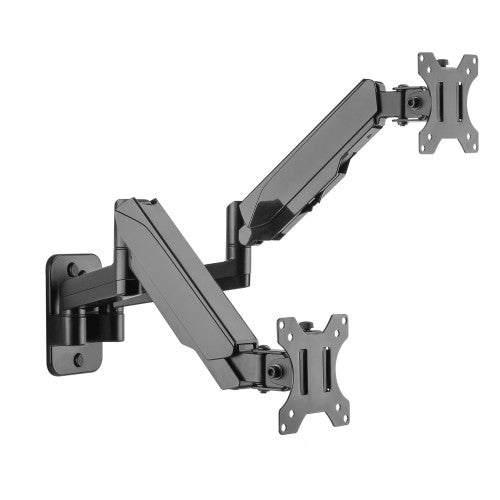

Overview- Premium quality durable gas spring assisted full-motion articulating dual monitor wall mount provides smooth, precise and effortless viewing height adjustment up to 11.02 inches
- Rotating VESA plate supports portrait or landscape monitor orientation
- Detachable VESA plate provides for easy monitor installation and adjustment
- Compliant with VESA standard mounting hole pattern 75x75mm and 100x100mm to fit most 17" to 32" flat and curved monitors
- Ergonomic enhanced features, include height adjustment, 180° arm swivel, monitor tilt angles of +/- 35° (up/down), and 180° (left/right) pan angle, provide unlimited viewing angle positions for optimal viewing comfort
- Adjustable tension gas spring movement accommodates different weight loads to ensure smooth height adjustment, holds monitor weighing up to 17.6 lbs (8kg)
- Each monitor arm can extend up to 16.61 inches from the wall, great for areas with severe space constraints
- Integrated cable management system keeps cables neat, organized, and out of the way for a clean clutter-free desktop
- Designed for single wood stud mounting fits perfectly into limited wall spaces for convenient and easy installation
Specifications
| Mounting |
|---|
| Minimum screen size |
17" |
| Number of displays supported |
2 |
| Mounting type |
Wall |
| Minimum VESA mount |
2.95 x 2.95" (75 x 75 mm) |
| Maximum VESA mount |
3.94 x 3.94" (100 x 100 mm) |
| Distance to the wall (max) |
16.6" (42.1 cm) |
| Maximum weight capacity |
35.3 lbs (16 kg) |
| Maximum screen size |
32" |
| Ergonomics |
|---|
| Built-in gas spring |
Yes |
| Height adjustment |
Yes |
| Swivel angle |
180° |
| Swivel angle range |
-90 - 90° |
| Tilt angle range |
-35 - 35° |
| Pan range |
-180 - 180° |
| Technical details |
|---|
| Mounting type |
Wall |
| Distance to the wall (max) |
16.6" (42.1 cm) |
| Product colour |
Black |
| Compliance certificates |
RoHS |
| Design |
|---|
| Product colour |
Black |
| Housing material |
Aluminum |
| Weight & dimensions |
|---|
| Width |
3.94" (100 mm) |
| Depth |
40.7" (1034 mm) |
| Height |
14.6" (370 mm) |
| Weight |
6.94 lbs (3.15 kg) |
| Other features |
|---|
| Mounting type |
Wall |
